Our ML-YC800 Multifunction Paper Box Forming Machine its an multifunction machine, It can produce vairous types of paper box. The paper delivery section is driven by an independent servo motor, ensuring efficient and smooth output, while the paper feeding section is also independently servo-controlled for steady feeding, reduced paper bounce, and improved forming stability. The machine is equipped with safety doors for enhanced operational safety. The forming station is independently servo-controlled, allowing for simple and quick mold changeovers. PLC-controlled, the machine facilitates the forming of complex box styles, and offers automatic collection, storage, and counting functions. A user-friendly switch design further ensures both safety and ease of operation.

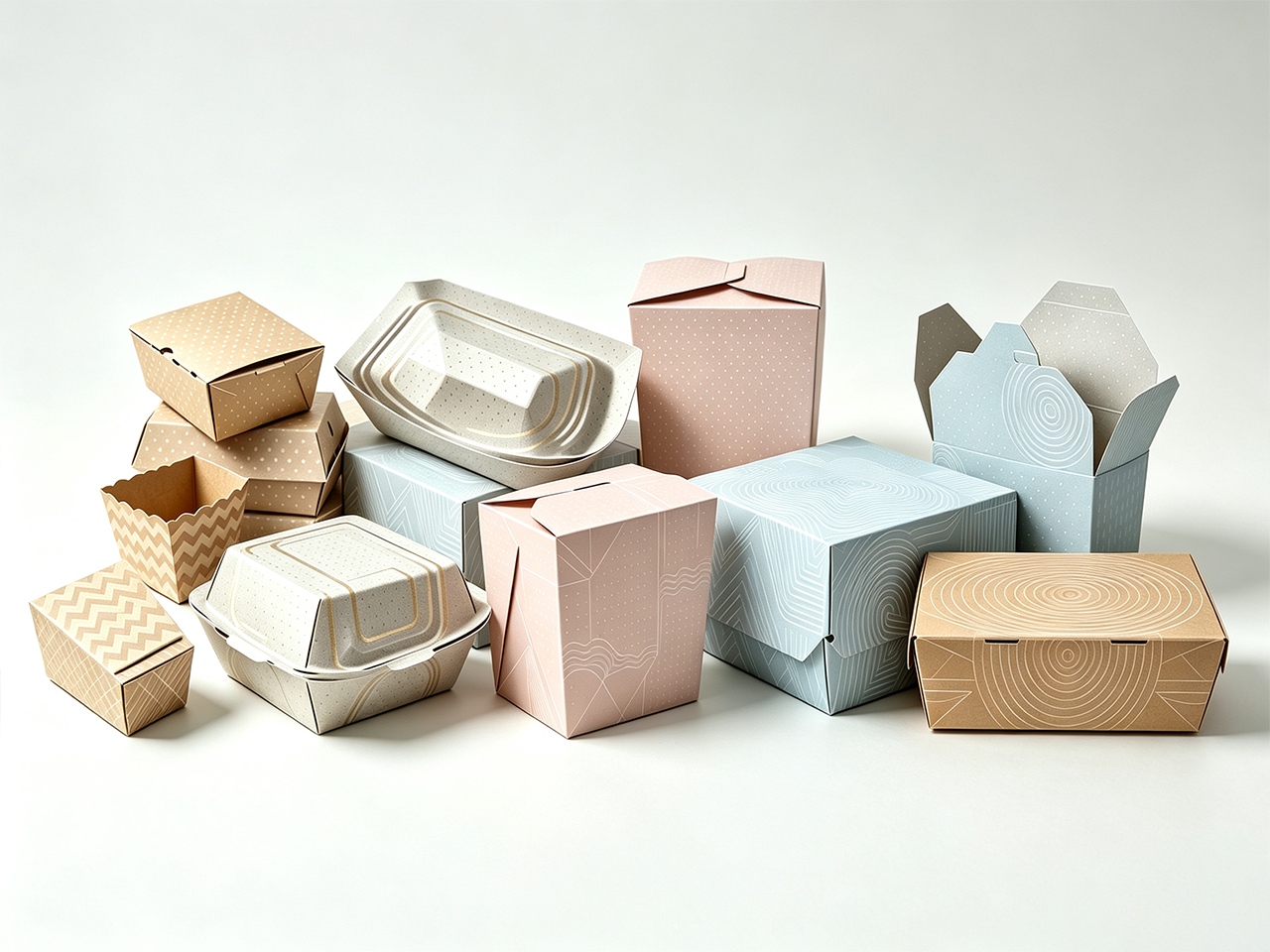

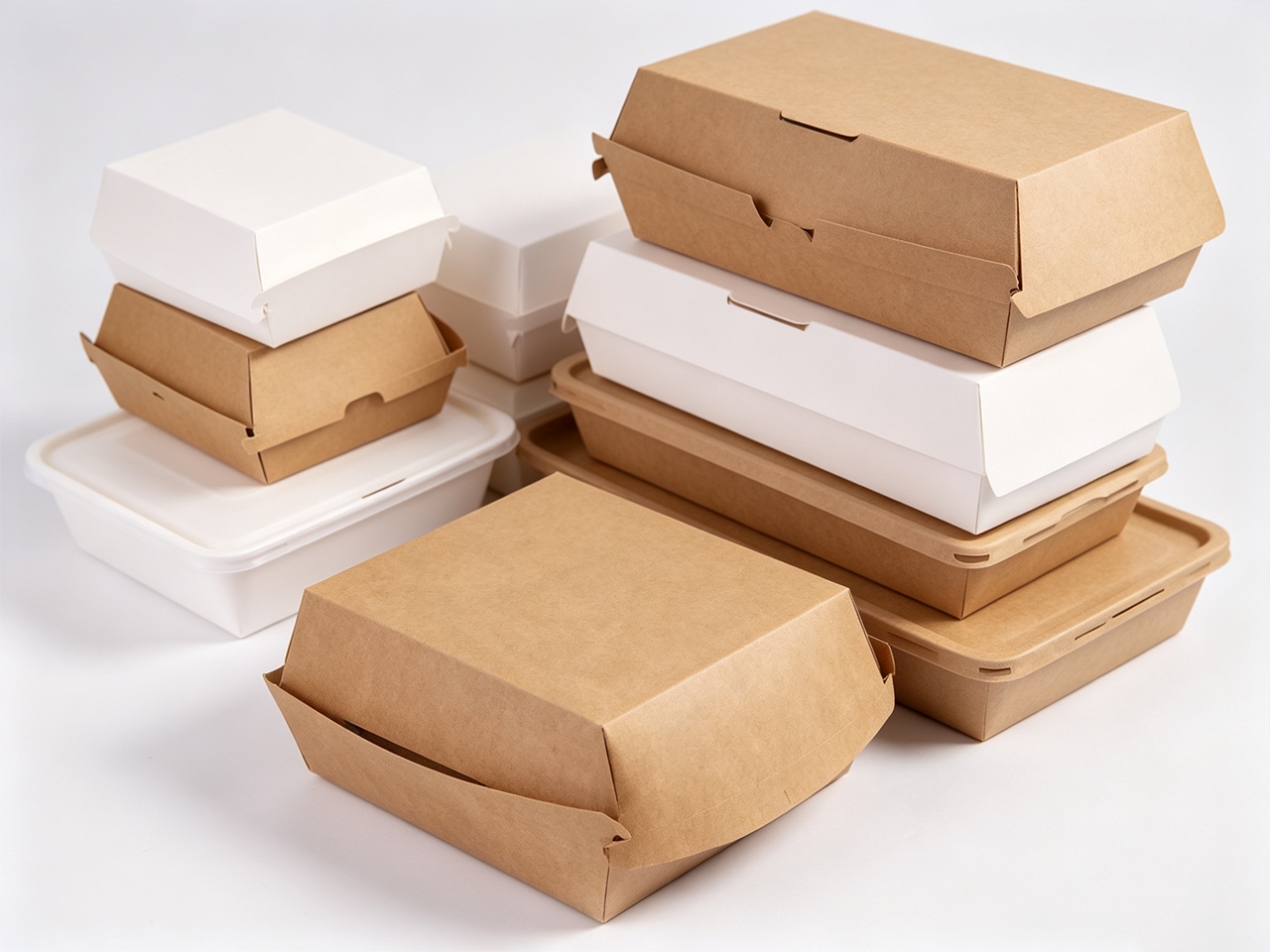

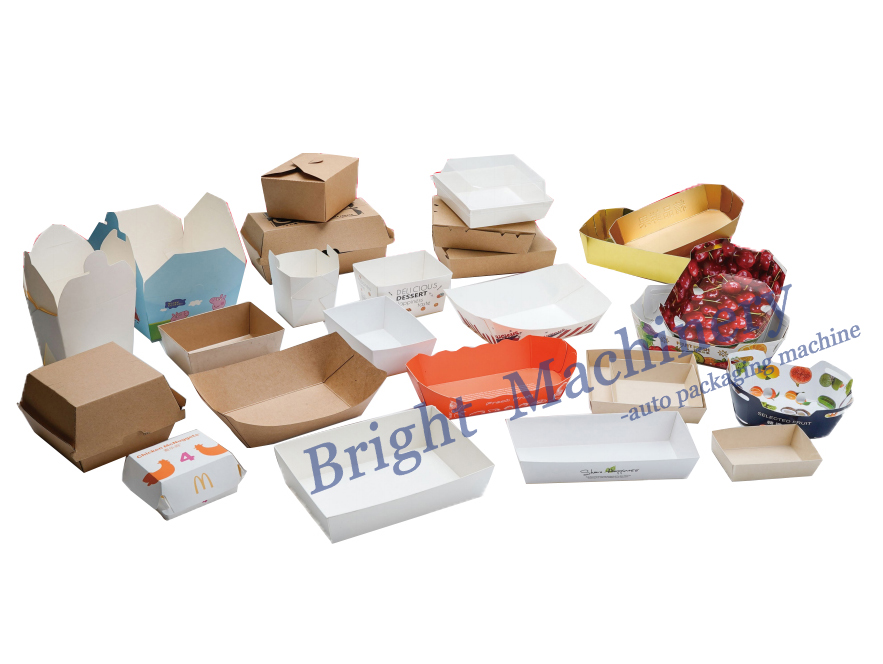

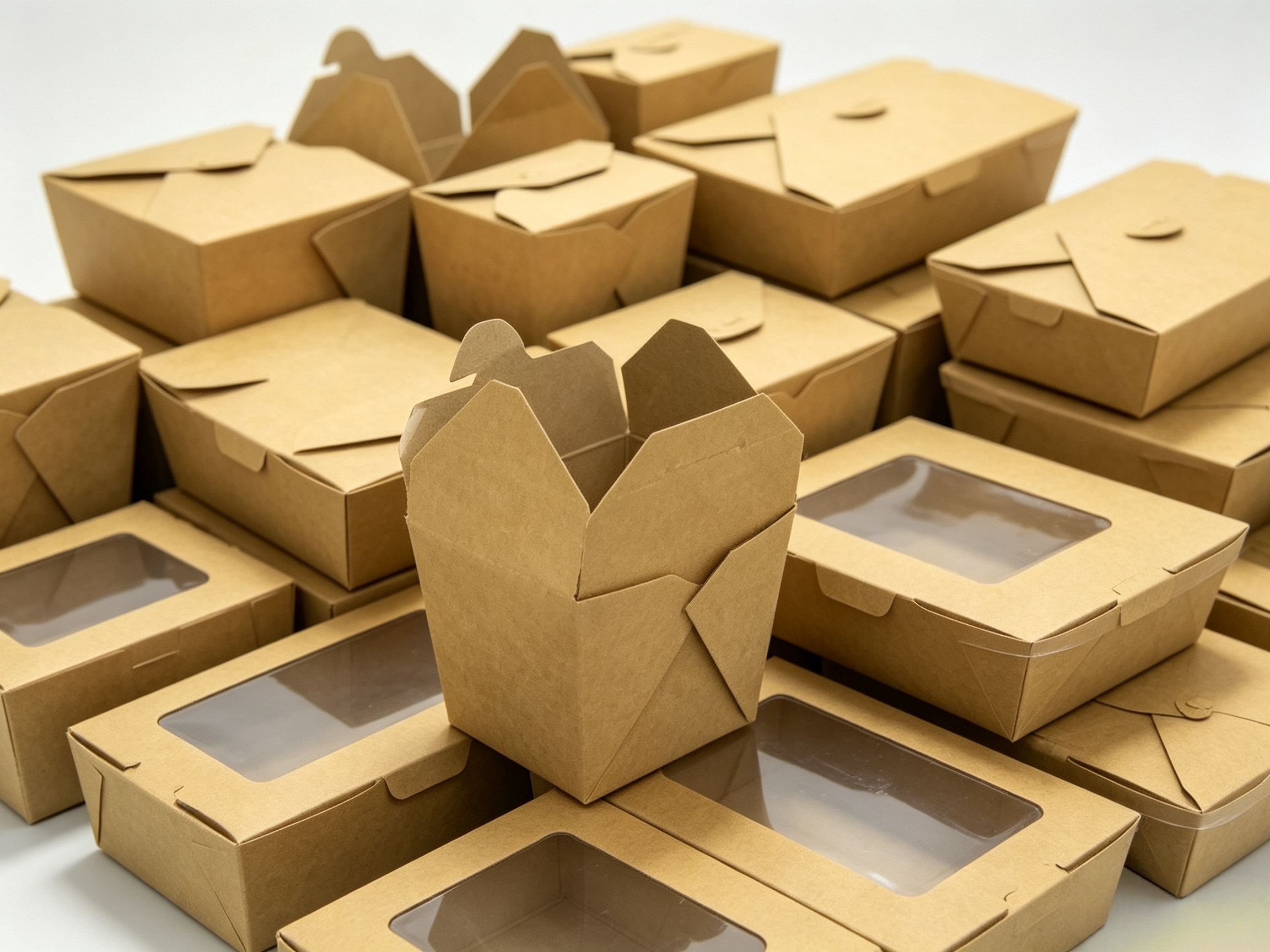

Sample Made From Machine
Main Technical Parameters

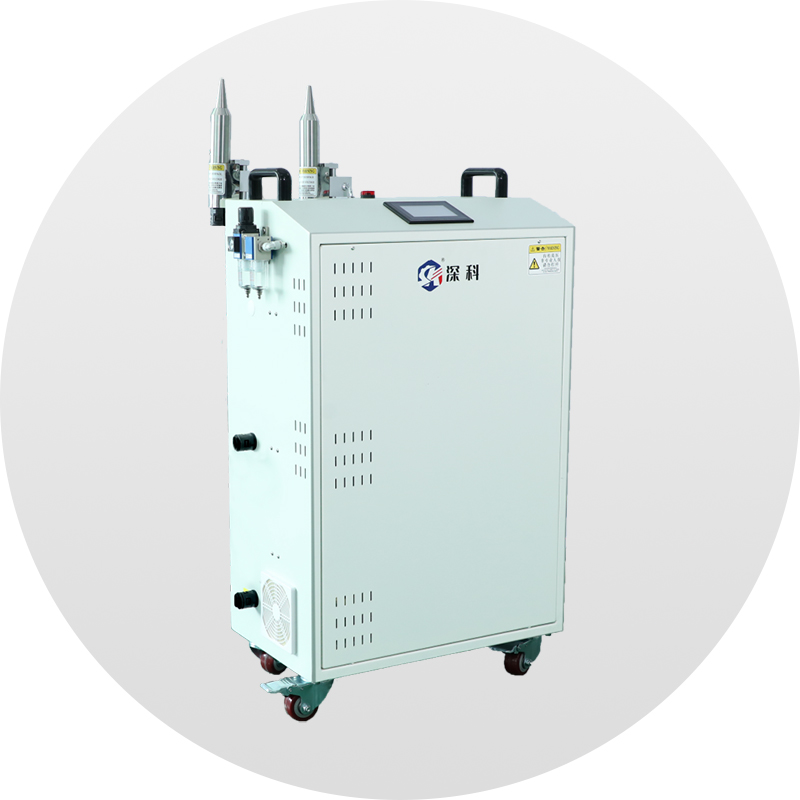

Model | YC800 |
|---|---|
Applicable Materials | 150~600g/m2 cardboard, laminated paper, etc |
Speed | Max. 120-300pcs/min (Square box without lid, boat-shaped box) Max. 80-120pcs/min (french fries box) Max. 60-120pcs/min (takeout container) |
Paper Size | L=Length: 60~450mm expanded size |
W=width: 60~680mm expanded size | |
H=height: 10~200mm expanded size | |
Material Thickness | Maximum 1.5mm |
Angle | 5°~30° |
Paste | Food-grade water-based adhesive |
Power Supply | Three-phase, 380V, 50/60Hz (Customizable) |
Power | 8.8KW |
Air Source | Pressure: 6KG/cm2; (0.6MPa); Output: 200 L/minute; (0.2~0.4 m3/minute); The user needs to purchase an air compressor |
Machine Dimensions | 3550MM*1320MM*1700MM |
Machine Packaging Size | 33600MM*1420MM*1750MM |
Weight | 1800KG |
Note: The size, shape, and quality of raw materials of the paper box will affect the operating speed of the machine. If the raw material is double-layered film or aluminum foil, a hot melt adhesive device and a plasma device are required. | |
Electrical Configuration
Electrical Configuration | |||
|---|---|---|---|
Name | Model | Quantity | Brand |
PLC Control Module | DVP32ES200T | 1 PCS | Shilin |
Paper Discharge Servo Motor | 1.3KW | 1 PCS | |
Lower Paper Servo Motor | 0.75KW | 1 PCS | |
Transmission Servo Motor | 1.3KW | 1 PCS | |
Molding Servo Motor | 2.9KW | 1 PCS | |
Touch Screen Controller | DOP-B07S410 | 1 PCS | |
Relay | 24v | 8PCS |  Schneider Electric France |
Circuit Breaker | 2P-C25 | 1PCS | |
Contactor | LC1E1210 | 1PCS | |
Contactor | LC1E0910 | 1PCS | |
Encoder | 360P | 1PCS |  Omron, Japan |
Glue Application (DC) Motor | 90 W | 1 PCS | Jiangsu Libang |

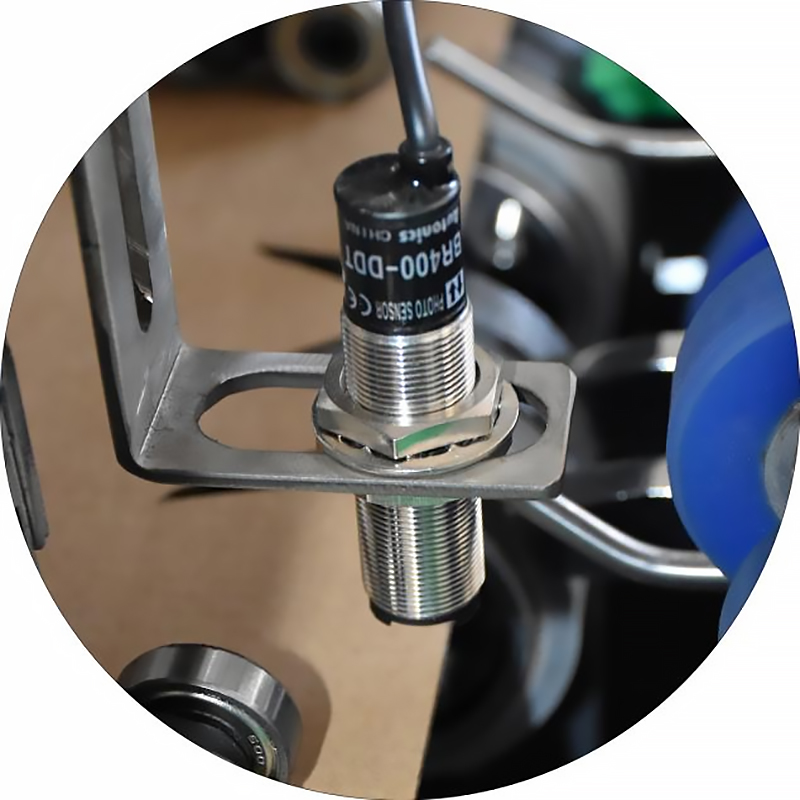

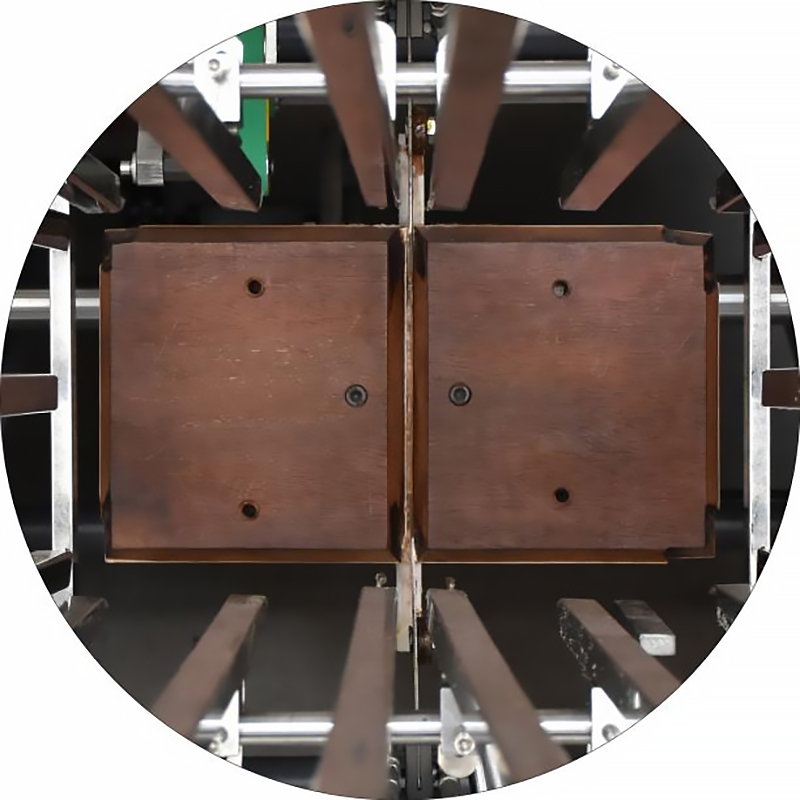

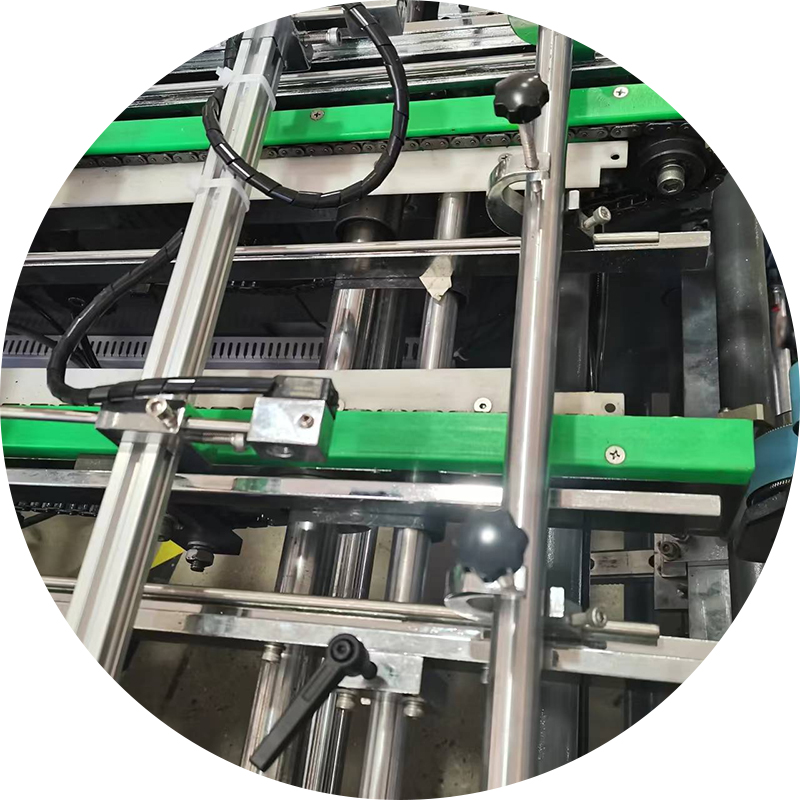

Photoelectric Switch | XC-421 | 3 PCS | SICK Germany |
Protector In Succession | XJ3-G | 1PCS |  |
Safety Door Switch | AZD | 4 PCS | Taiwan SNZ SHINOZAKI |
Switching Power Supply | NES | 1 PCS |  Mean Well Taiwan |
Button | XB2 | 5 PCS |  |
Emergency Stop Button | XB2 | 2PCS | |
Button Box | TN2 | 2 PCS | |
Note: Changes to the machine's appearance, technical specifications, performance, and features may occur without prior notice. | |||
High Stability, High Precision | ||
|---|---|---|
Main Components | Workmanship | Material |

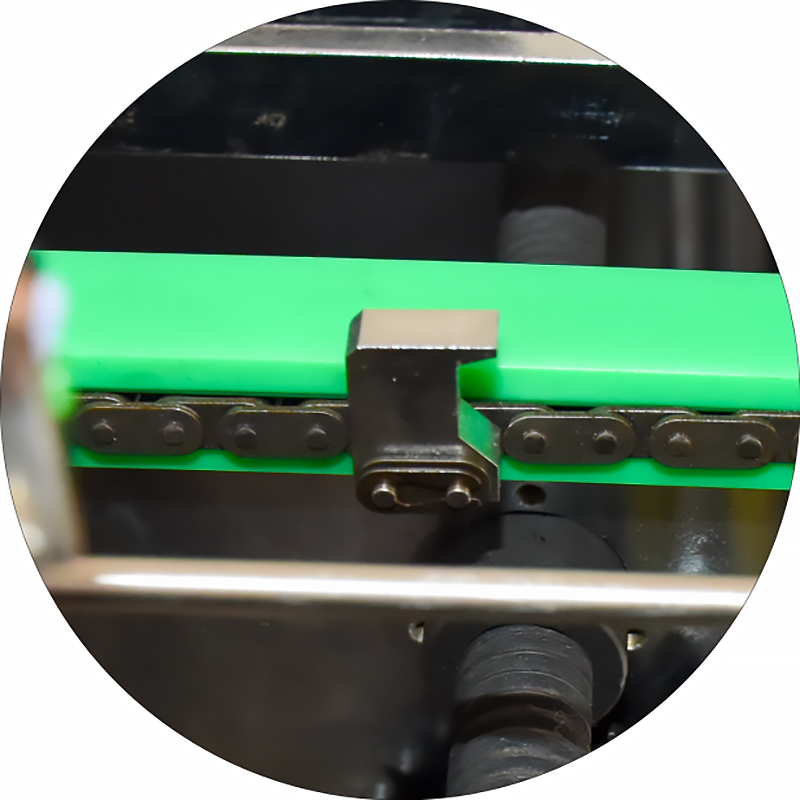

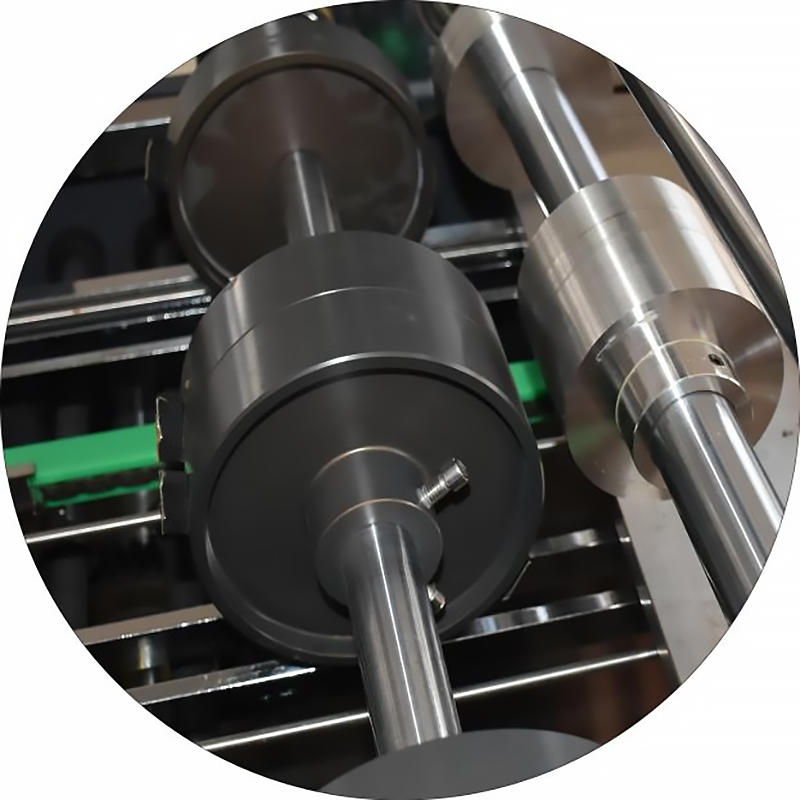

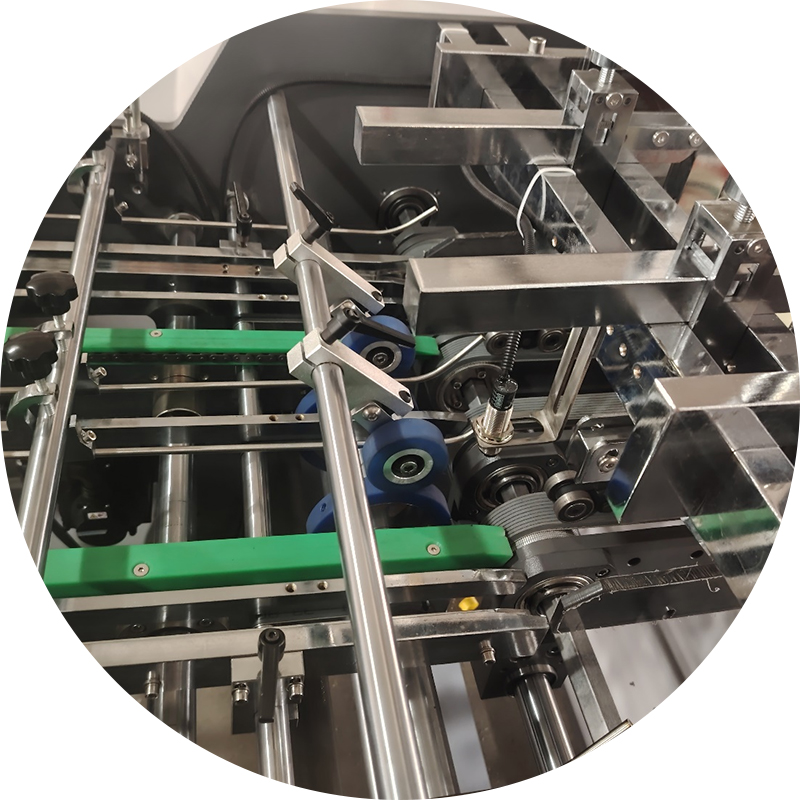

Transmission Shaft | CNC lathe 1 rough grinding 1-time surface treatment 2 times of fine grinding | Chromium 12 tempering treatment |
Equipment Transmission Mechanism | Fully connected internal steel wire type | chain |
Feed Inlet | Attached with a paper suction device | |
Fastener | The level is 12.9 | |
Machine Memorial Archway | Grinding and polishing surface treatment | A3 or flat key type |
Bearing | Harbin, partially imported | |
High Security | ||
Principles of ergonomics: All switch buttons are located within a 0.6m radius of the personnel | ||
Safety doors are installed on the protective cover. Once the door is opened, the equipment will automatically shut down | ||

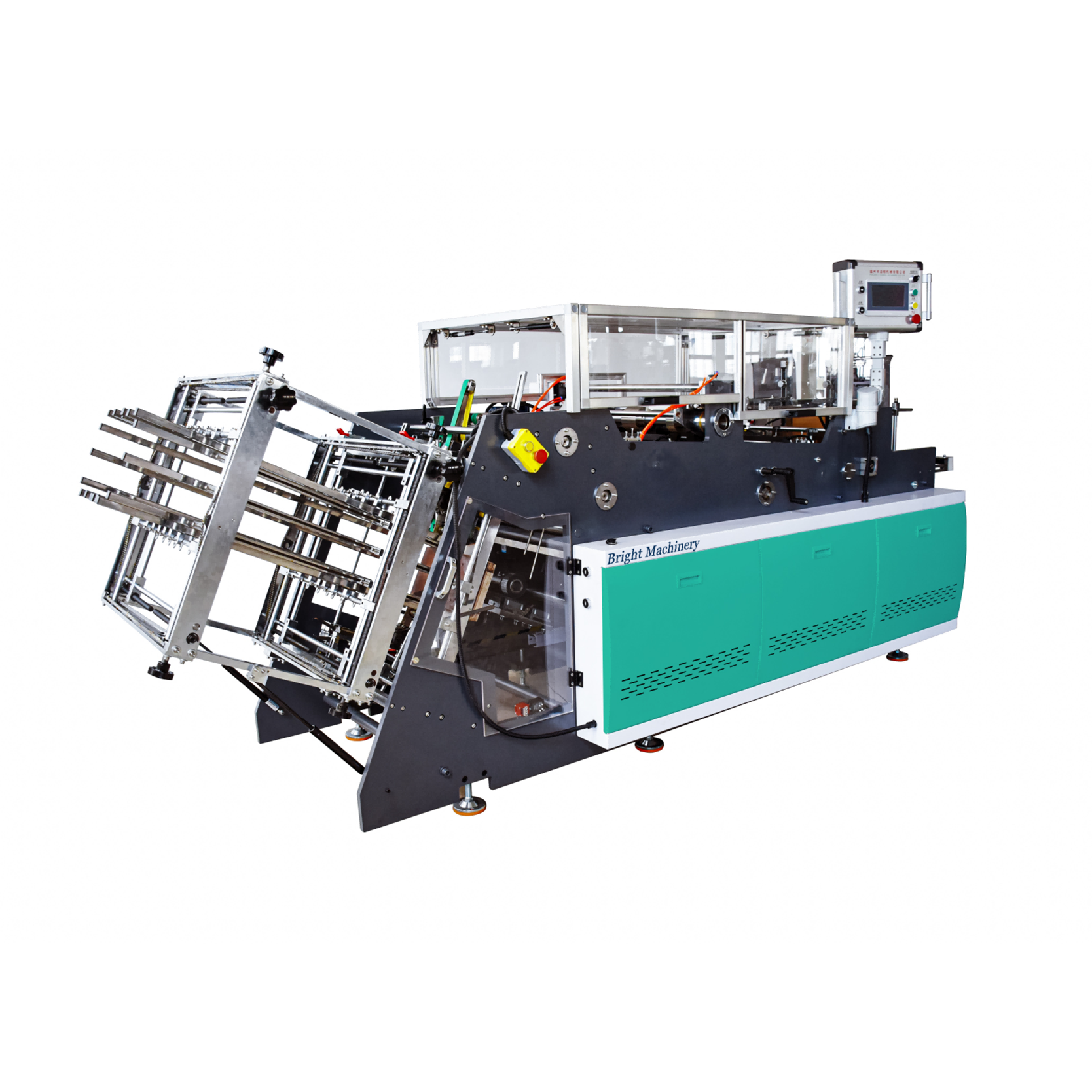

Machine Picture for Reference:
