Machine Description:
Our paper plate forming machine adopts servo drive for paper suction, feeding, and material collection, saving space and labor compared to traditional paper tray forming machines, and achieving higher precision and efficiency. The machine utilizes a hydraulic system for forming, which is more stable than pneumatic and mechanical systems, and produces better-looking plates. The entire machine is equipped with a closed safety cover and multiple touch screens, with photoelectric tracking and intelligent monitoring throughout the production process. It enables one-button start for fully automatic operation and can be directly connected to weighing machines, packaging machines, labeling machines, etc., achieving safe and intelligent production on the paper plate machine assembly line
Our pillow packaging machine is mainly used for matching paper plates soft packaging bags, which play a role in moisture-proof and light-proof and enhances the grade of the product. Using this machine can save about 20％ of the cost compared to manual bag packaging. Through modular design, it can be modified to a certain extent to package paper plate products.
Two machine connected can save labour cost. It is an ideal machine.
Machine Features:
1. Capable of producing standard round and square paper plates.
2. Adopts fully enclosed machine safety housing, sturdy and highly safe.
3. Equipped with a four-station hydraulic control system for stable forming performance.
4. Fitted with a professional photoelectric detection system.
5. High production efficiency, output reaches 120–200 Pcs/min for standard paper plates (four-station).
6. Built-in photoelectric detection device supports automatic fault alarm, ensuring safe and worry-free operation.
7. Equipped with servo drive for precise positioning and high forming accuracy.
8. Vacuum pump paper feeding design reduces power consumption and saves energy.
9. Integrated body design greatly saves workshop floor space.

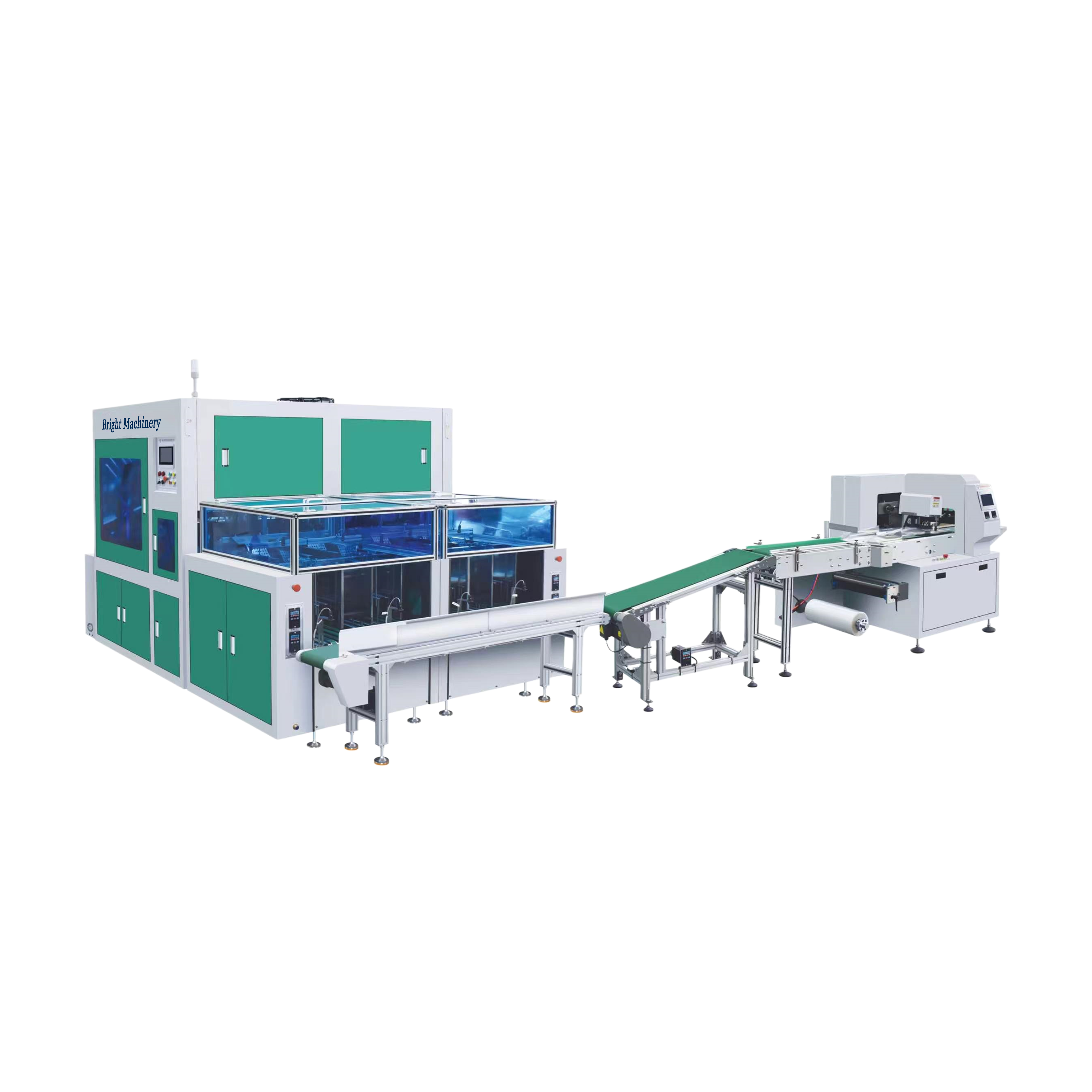

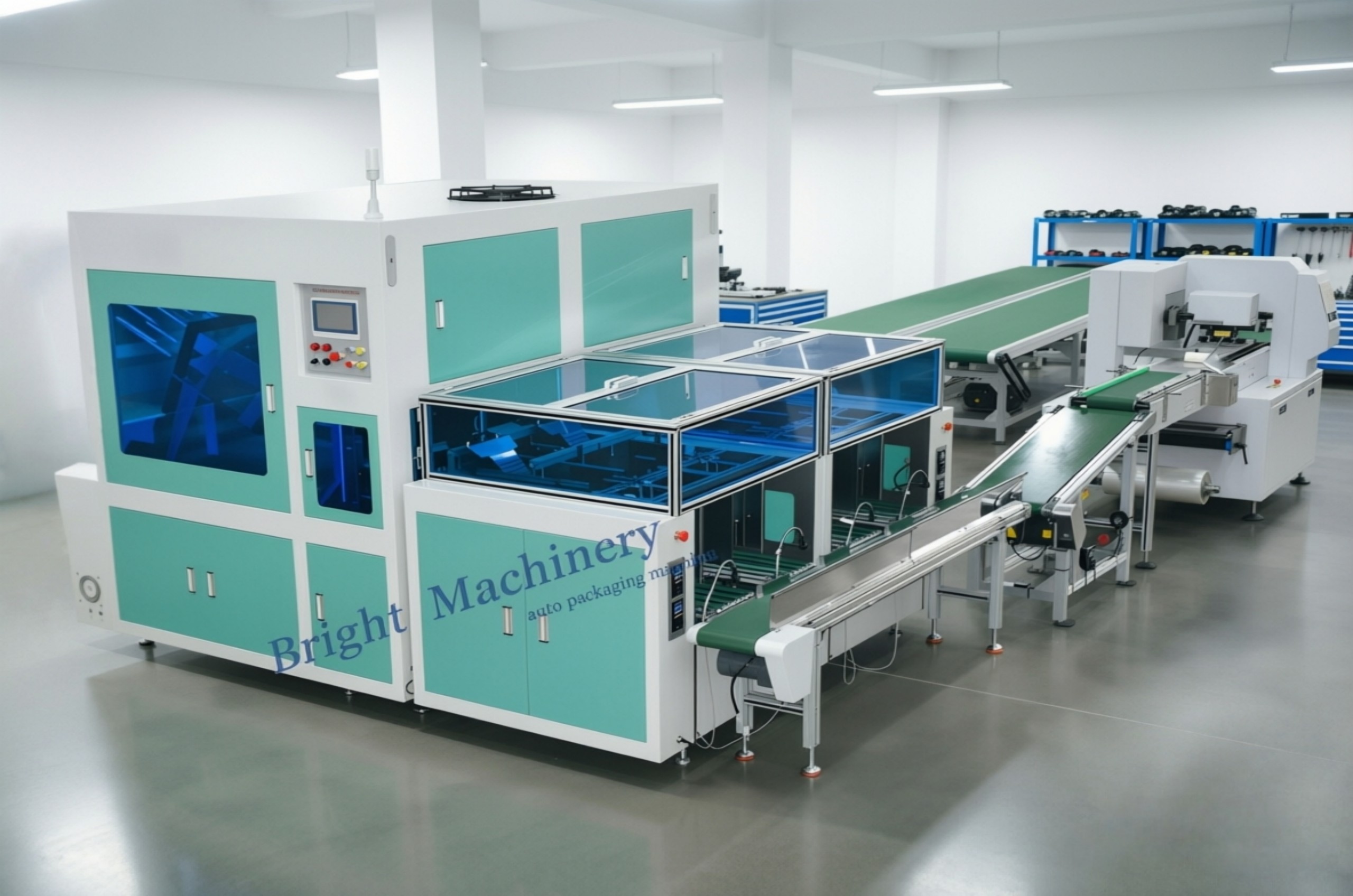

Connected with flow packaging machine to be full auto line.

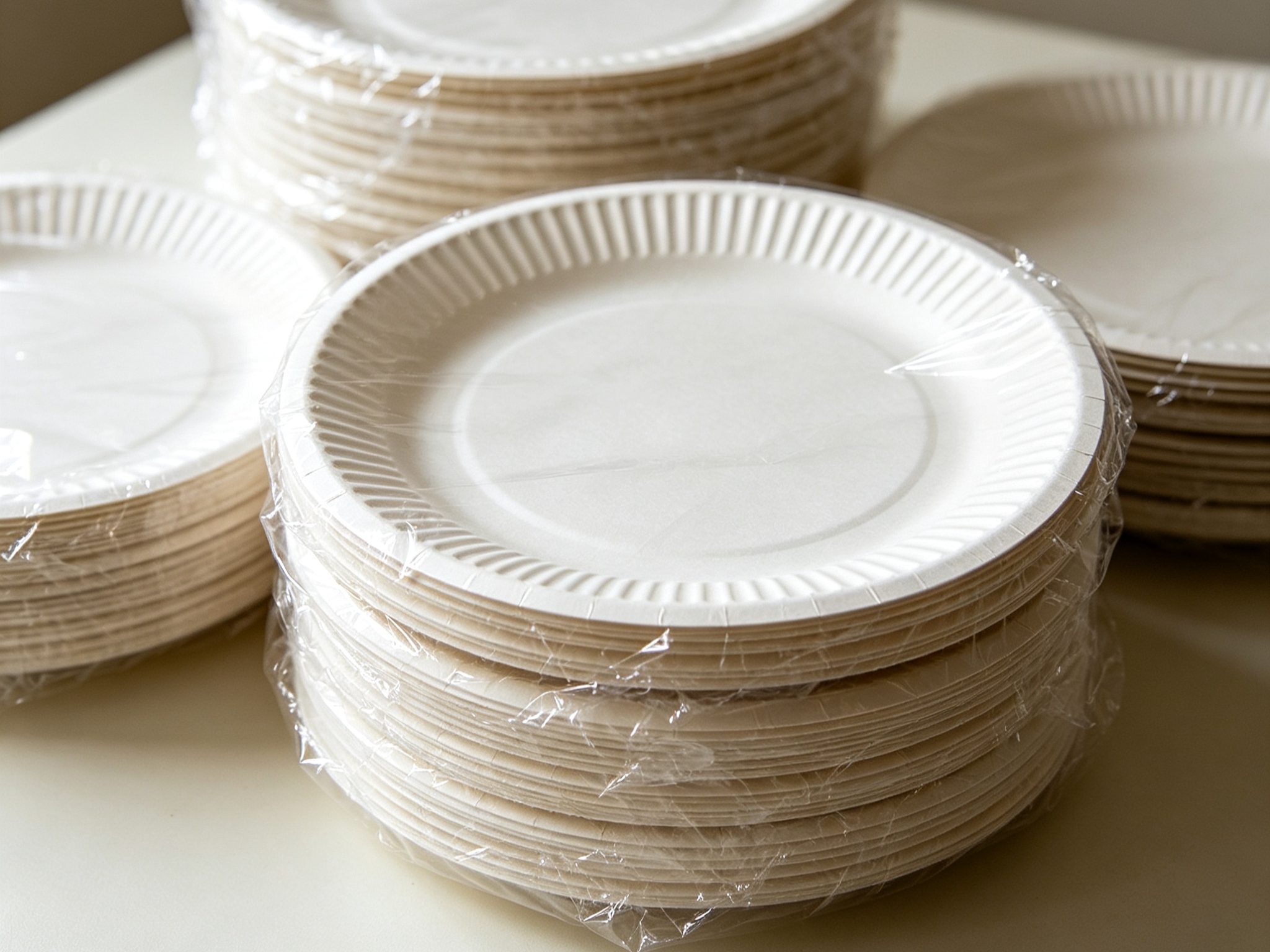

Sample Made From Machine:
Main Technical Parameters of paper plate machine:
Paper plate specifications | 5.5-10 inches |
Paper weight | 150-600 grams per square meter |
paper materials | Base paper, white board paper, white cardboard, aluminum foil, or others |
production speed | Dual-station, 120-200 pieces/minute |
Power requirements | 380V 50-60HZ |
rated power | 25KW |
Actual Power | 12KW |
machine weight | 4000kg |
Overall dimensions | 2800×2060×2060mm |
Requirements for supporting air source | Working pressure: 0.6 MPa, working air volume: 0.8 cubic meters per minute |
Other remarks | customizable |
Main technical parameters of the oil cylinder | ML-80-150-10T-X |
Power | 220V，60HZ |
Packaging speed | 8m/min |
Adaptable film thickness | 0.03mm-0.06mm |
Materials | PE、CPP、OPP |
Package length | 100-10000mm |
Product size | ≤120mm |
Edge banding | ≤10mm |
Overall dimensions | 2800×850×1350mm |
Packaging method | Horizontal Flow Wrapping |
Air source requirements | 0.5-0.8MPa |
Power | 3KW |
Package film width | 450mm |
ML1680Y Electrical Configuration:
NO | ACCESSORIES | MODEL | QUANTITY | SUPPLIER |
1 | 7-inch touch screen | 1070N | 2 | Fanyi |
2 | Temperature control module | 4 routes | 2 | Panasonic |
3 | circuit breaker | 3P63A | 1 | Schneider |
4 | circuit breaker | 3P16A | 1 | Schneider |
5 | circuit breaker | 1P32A | 4 | Schneider |
6 | circuit breaker | 1P16A | 3 | Schneider |
7 | AC contactor | 3810 | 1 | Schneider |
8 | AC contactor | 1210 | 1 | Schneider |
9 | AC contactor | 2510 | 1 | Schneider |
10 | Thermal overload | 23-32A | 1 | Schneider |
11 | Thermal overload | 2.5-4A | 2 | Schneider |
12 | intermediate relay | 24V 5A | 9 | Schneider |
13 | red button | Single normally open contact | 2 | Schneider |
14 | green button | Single normally open contact | 2 | Schneider |
15 | Second gear shift lever | Single normally open contact | 4 | Schneider |
16 | Emergency stop button | Single normally open contact | 4 | Schneider |
17 | indicator light | AC220V | 4 | Schneider |
18 | yellow button | Single normally open contact | 4 | Schneider |
19 | proximity switch | M18 | 6 | Taiwan |
20 | Bus motion controller | New 8-axis bus controller | 1 | Trio |
21 | Input extension module | Input at 16:00 | 3 | Trio |
22 | Output expansion module | 16 point output | 3 | Trio |
23 | 400W servo driver | ED5E servo driver ED5E-04AEA | 4 | Estun |
24 | 400W servo motor | EM5E servo motor EM5E-04ATA221 | 4 | Estun |
25 | 750W servo driver | ED5E servo driver ED5E-08AEA | 4 | Estun |
26 | 750W servo motor | EM5E servo motor EM5E-08ATA221 | 4 | Estun |
27 | 400W servo motor power cable, length 3 meters | 400W servo power cable, 3-8 meters | 4 | Estun |
28 | 400W servo encoder cable, length 3 meters | 400W servo encoder cable, 3-8 meters | 4 | Estun |
29 | 750W servo power cable, length 3 meters | 750W servo power cable, 3-8 meters | 4 | Estun |
30 | 750W servo encoder cable, length 3 meters | 750W servo encoder cable, 3-8 meters | 4 | Estun |
31 | EC bus network cable | EC bus network cable | 9 | Yongding |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.

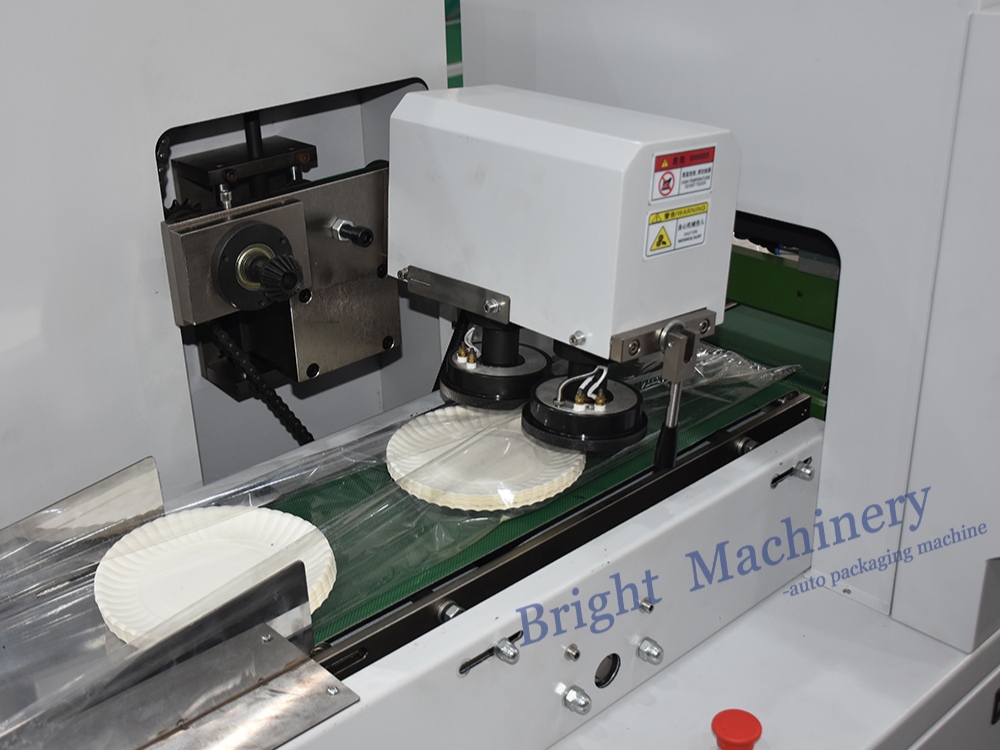

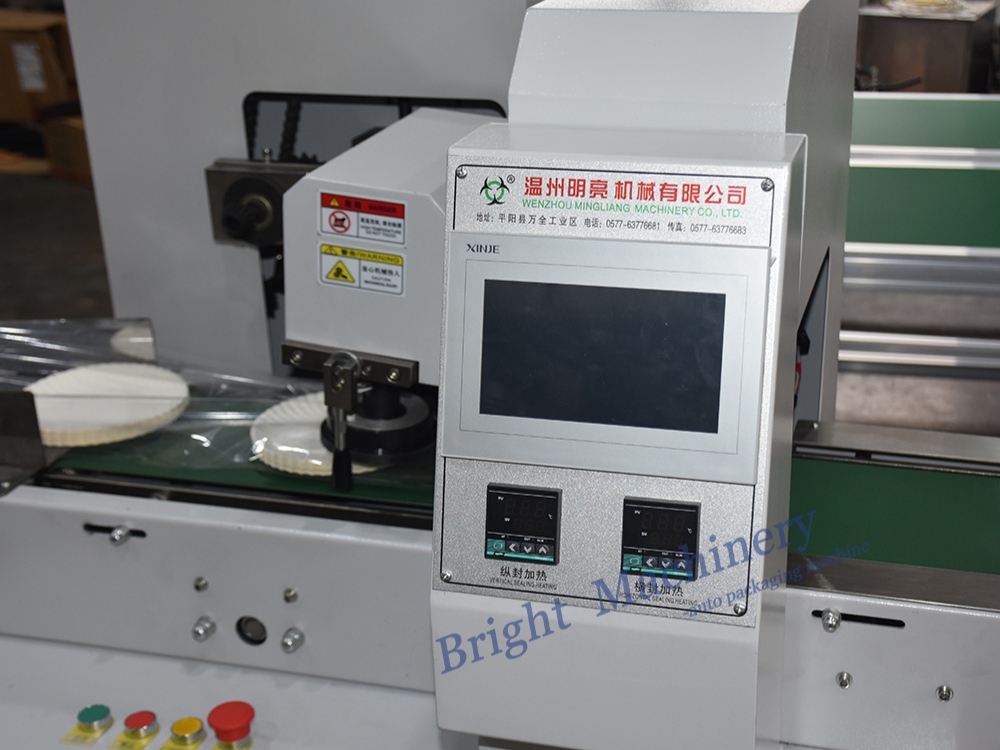

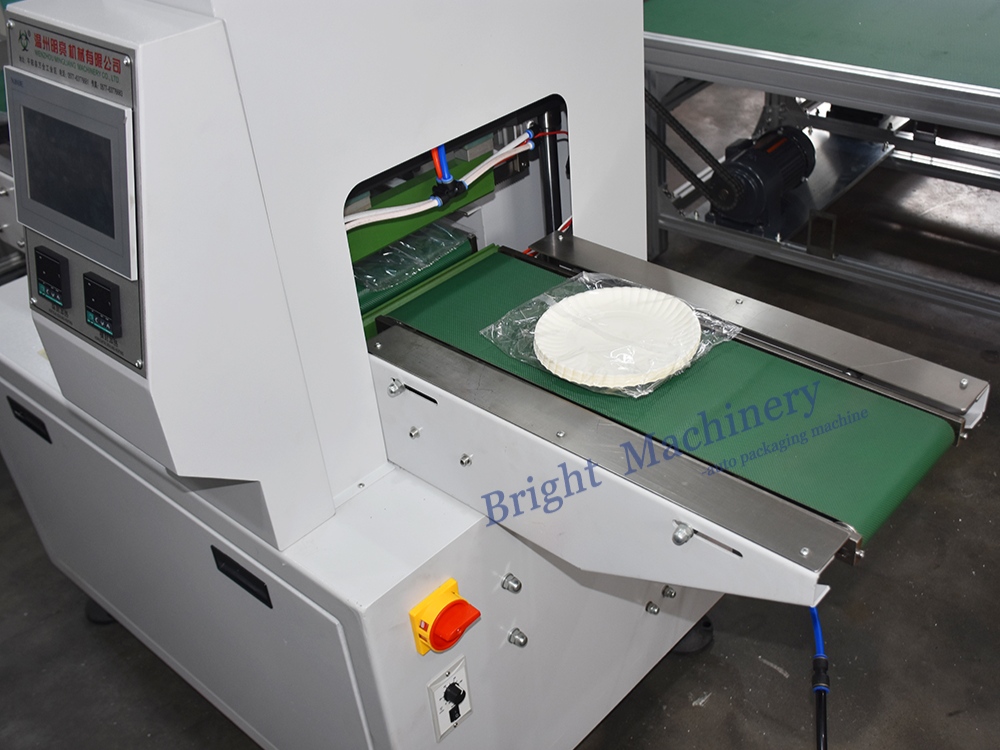

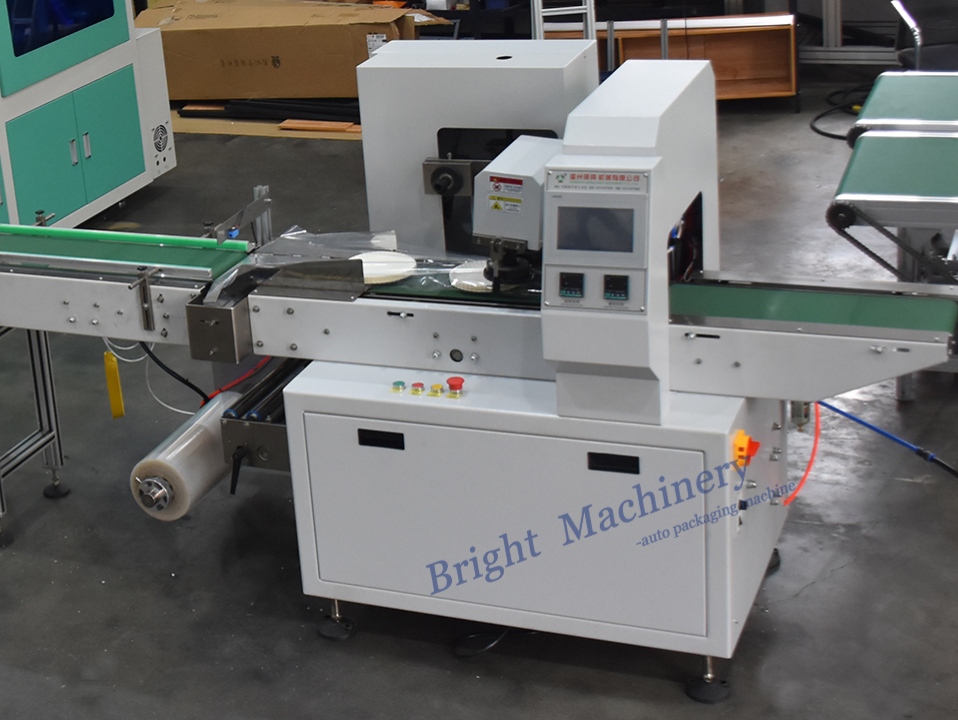

Machine Picture for Reference:
