Machine Functional Introduction:
Our ML 600Y-GP double station hydraulic paper plate machine its and ideal paper plate forming making machine. The detailed features are as follows:
Comprehensive Protection Design
Fitted with protective nets and a photoelectric detection system,The photoelectric monitoring device can automatically trigger an alarm in case of equipment faults, effectively avoiding operational risks and making the production process safer and more worry-free, the equipment runs stably with low failure rate and further improves overall operational safety.
Versatile Production Capacity
It supports the production of both conventional round paper plates and square paper plates, meeting diversified production and market demands.
Independent Dual-station Hydraulic Control System
Equipped with a dual-station independent hydraulic control system, which realizes separate and precise control of each station, ensuring stable equipment operation and improving production accuracy and consistency.
High Production Efficiency
The dual-station design enables efficient production of conventional paper plates, with a production speed ranging from 60 to 120 pieces per minute, greatly boosting production output and creating higher economic benefits for users.
Sample Made From Machine:
Main Technical Parameters:
Paper Plate Size | 4-13” |
|---|---|
Paper Grams | 150-800g/m² |
Paper Materials | Origin paper, whiteboard paper, white cardboard, craft paper aluminum foil paper or others |
Capacity | Double Stations 40-110pcs/min |
Power Requirements | 380V 50HZ |
Total Power | 8KW |
Weight | 1600kg |
Specifications | 3500×1300×1900mm |
Air Supply Requirement | 0.6Mpa, 0.3cube/min |
Other Notes Customize | Oil Cylinder ML-80-150-5T-X |
Cylinder Stroke | 150mm |
Main Configuration:
1 | Hydraulic Motor | Zhejiang Zhonglong |
2 | PLC | Delta |
3 | Normally Closed Photoelectric | Japan Ormon |
4 | Stainless Steel Heating Pipe | Jiangsu Rong Dali |
5 | Oil Pump | Taiwan |
6 | Counter Switch | Yueqing Tiangao |
7 | Normally Open Photoelectric | Japan Omron |
8 | Solenoid Valve | Taiwan Airtac |
9 | Bearing | Harbin |
10 | Temperature Sensor | Shanghai Xingyu |
11 | AC Contactor | Schneider |
12 | Frequency Transformer | Delta |
13 | Aluminum | Alloy Bodycover |
14 | Self-lubricating | China |
15 | Temperature Part | Delta |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.

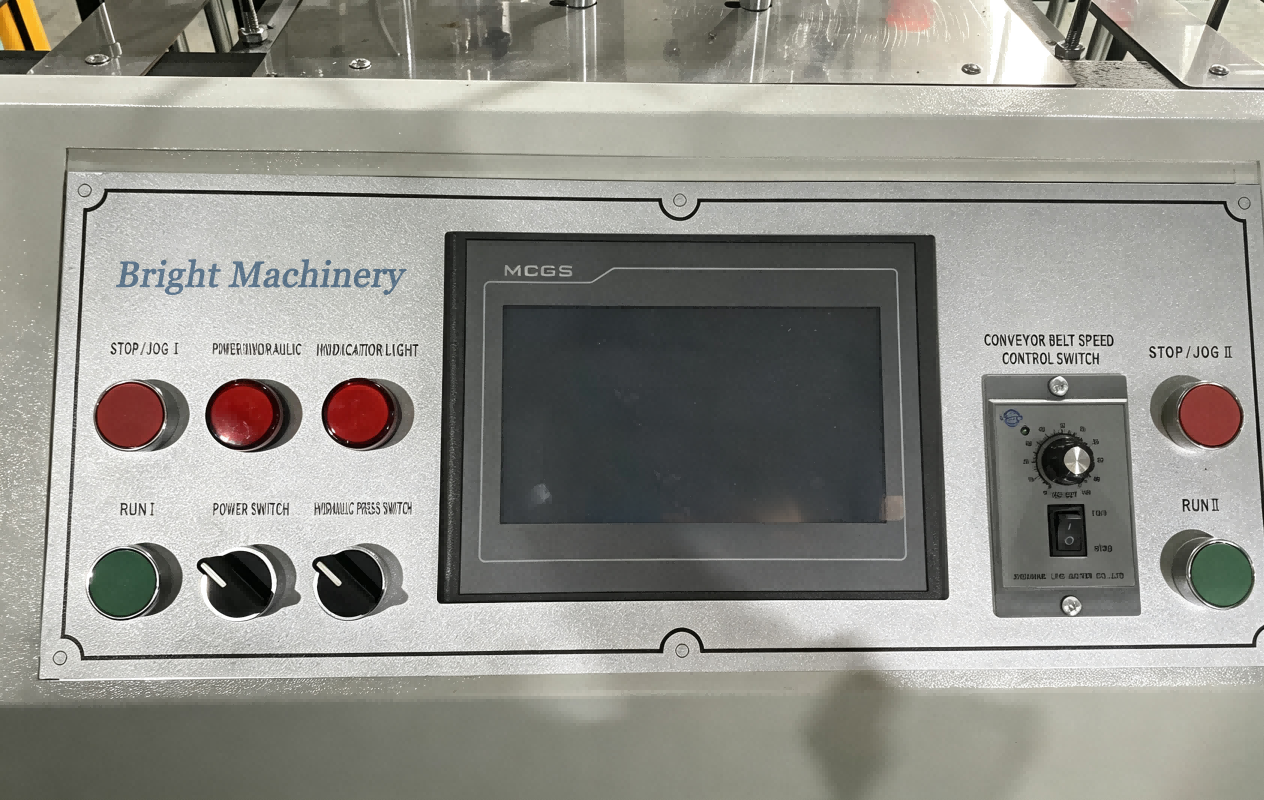

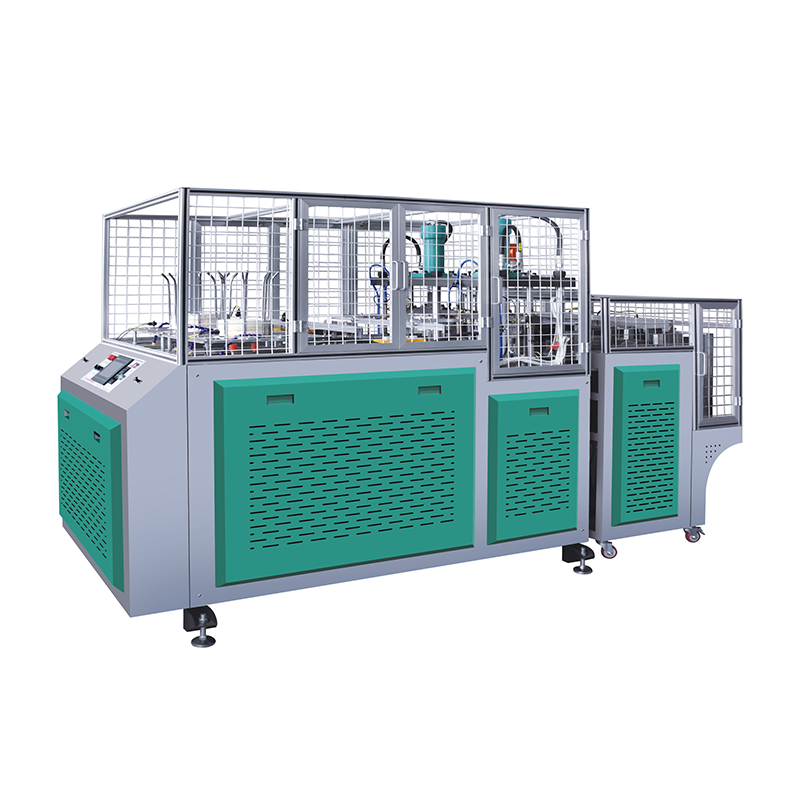

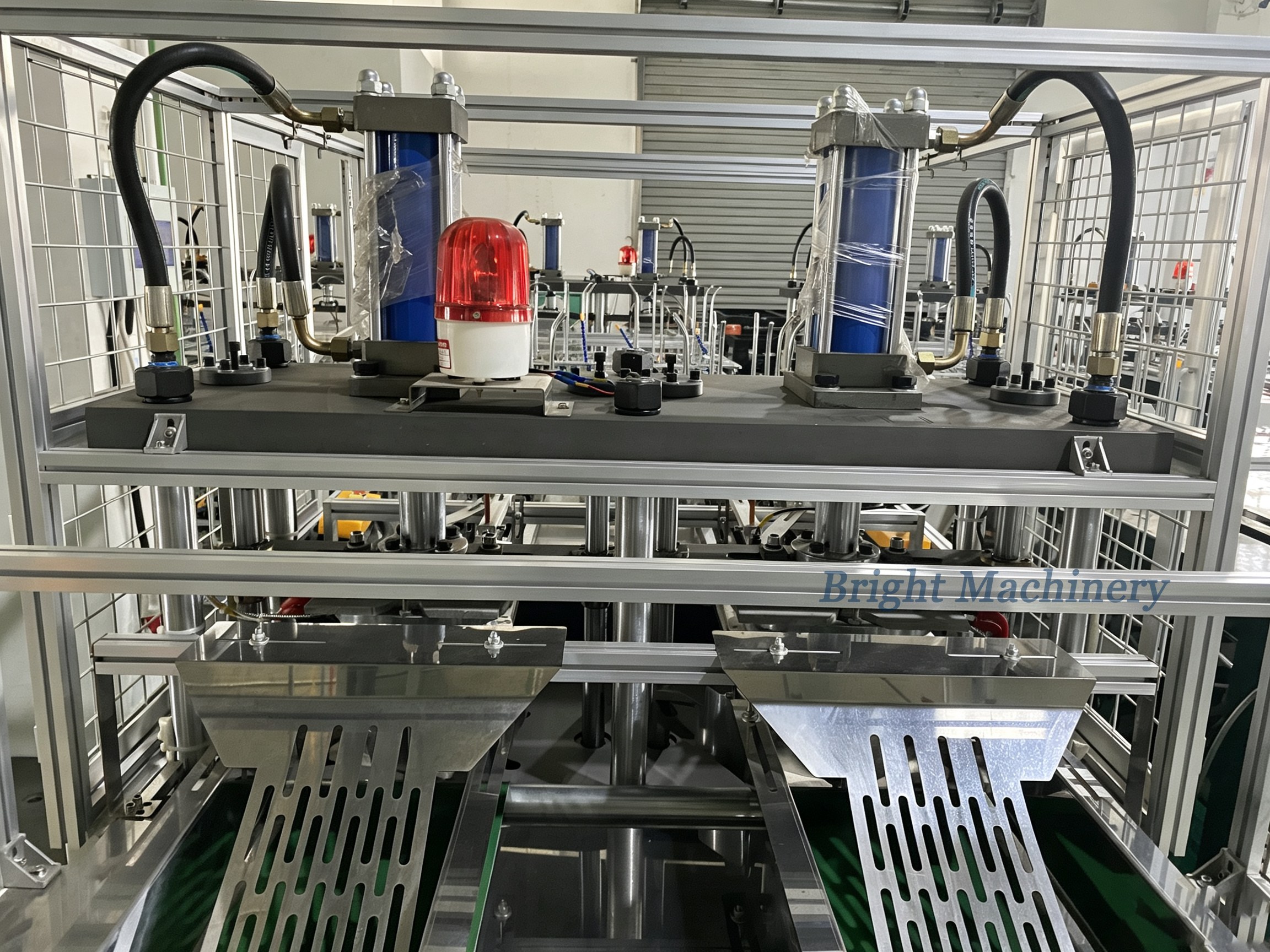

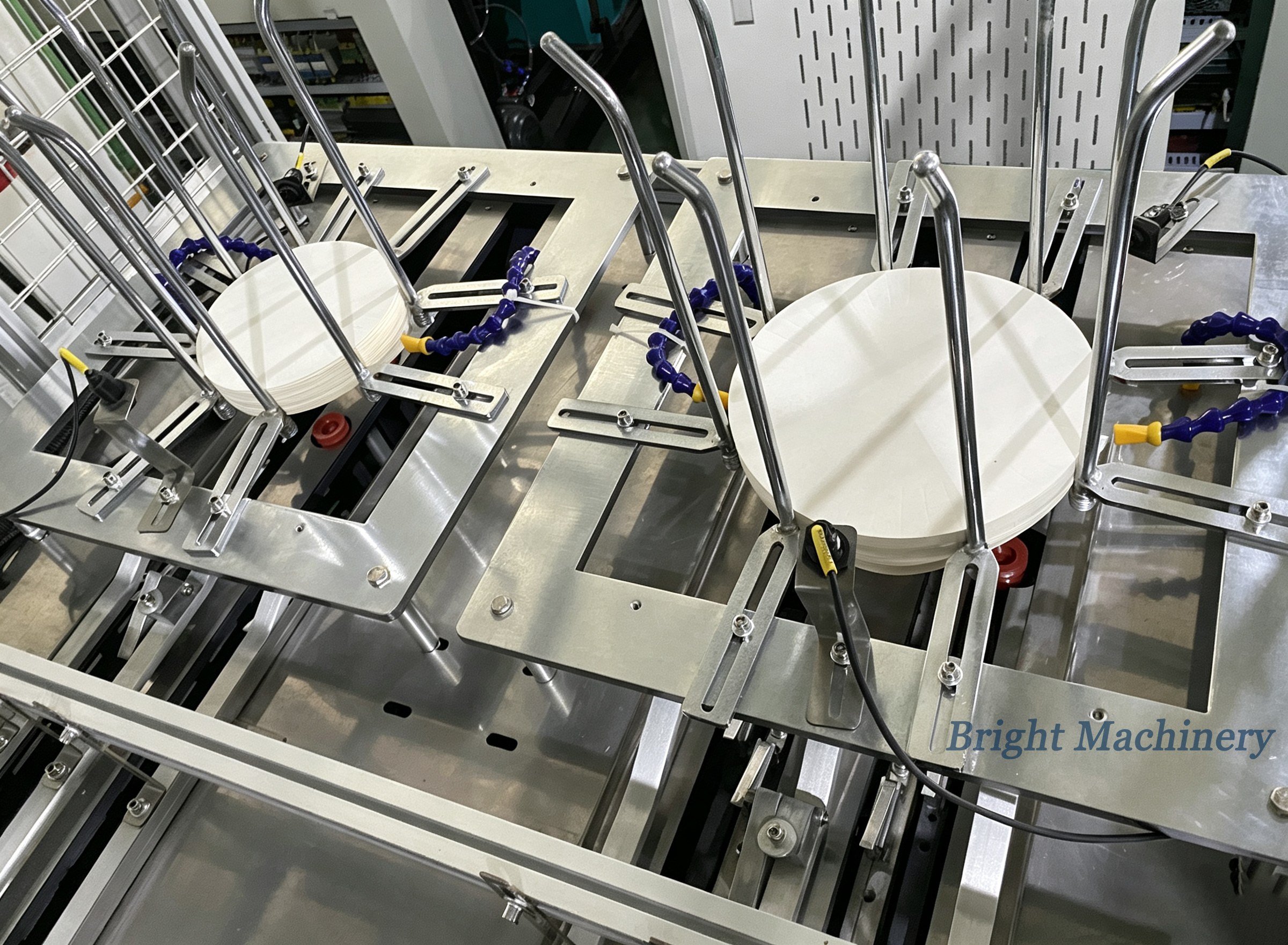

Machine Picture for Reference:
