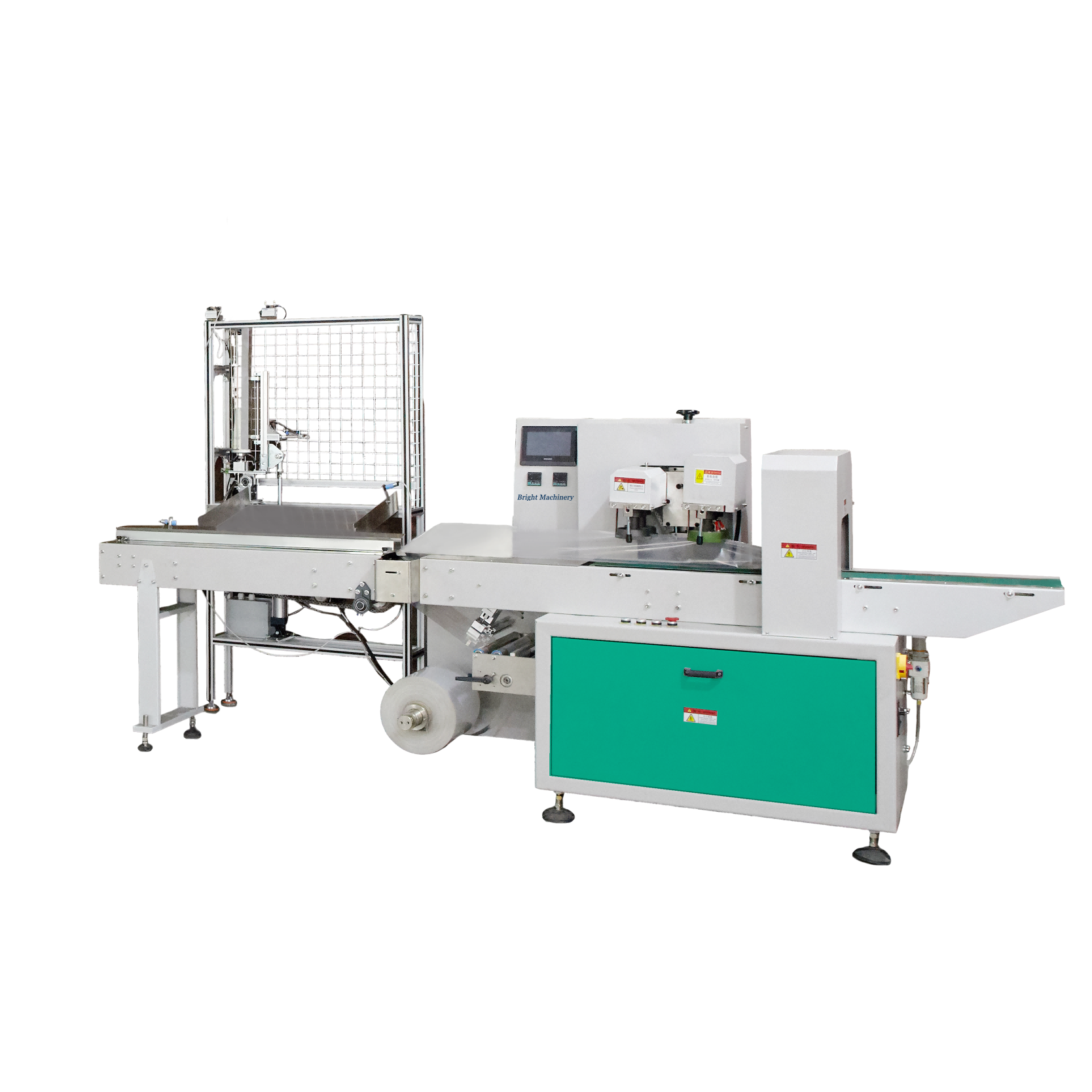

The ML-650 Automatic Pillow Packaging Machine is specially designed for wrapping disposable paper bowls, salad bowls, and snack bowls with plastic film. Compared with manual bag packaging methods, it helps reduce labor requirements and improve packaging efficiency. With adjustable machine configurations, it can be customized to meet different product sizes and production requirements.
Different from lid packaging equipment, the ML-650 is designed for three-dimensional paper bowl products. It features stable conveying, film wrapping, side and end sealing, and neat cutting processes. The machine helps complete consistent packaging for disposable bowls and similar food containers.
The ML-650 is equipped with a PLC control system and touch-screen interface, allowing operators to adjust packaging parameters conveniently. The control system supports stable operation and efficient management of daily packaging processes.
The machine adopts horizontal film packaging technology to complete film forming, sealing, and cutting processes. Combined with adjustable packaging parameters, it provides neat package appearance and stable sealing performance for different disposable bowl products.The finished packages are tight, visually appealing, and completely dust-proof, making the machine widely applicable in the disposable tableware and food packaging industry.
The ML-650 supports PE, CPP, and OPP packaging films with thicknesses ranging from 0.02mm to 0.06mm. These flexible film options allow manufacturers to select suitable packaging materials according to their product requirements.This mechanism consistently manages the pull on the film roll, effectively preventing the material from wrinkling, stretching unevenly, or deviating from its designated path during high-speed operations. The result is a consistently smooth, glossy outer layer that enhances the presentation of the enclosed salad or snack bowls.

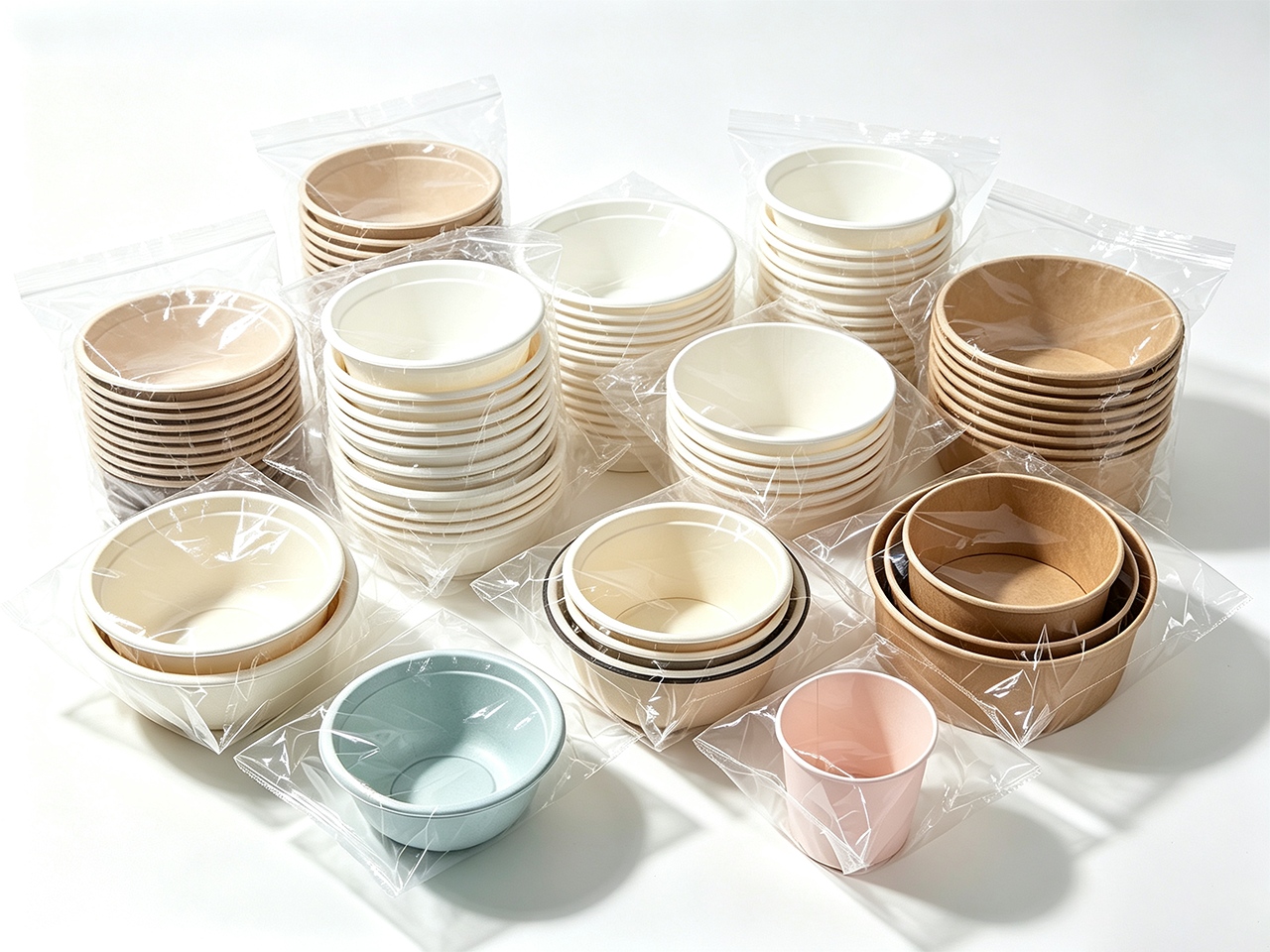

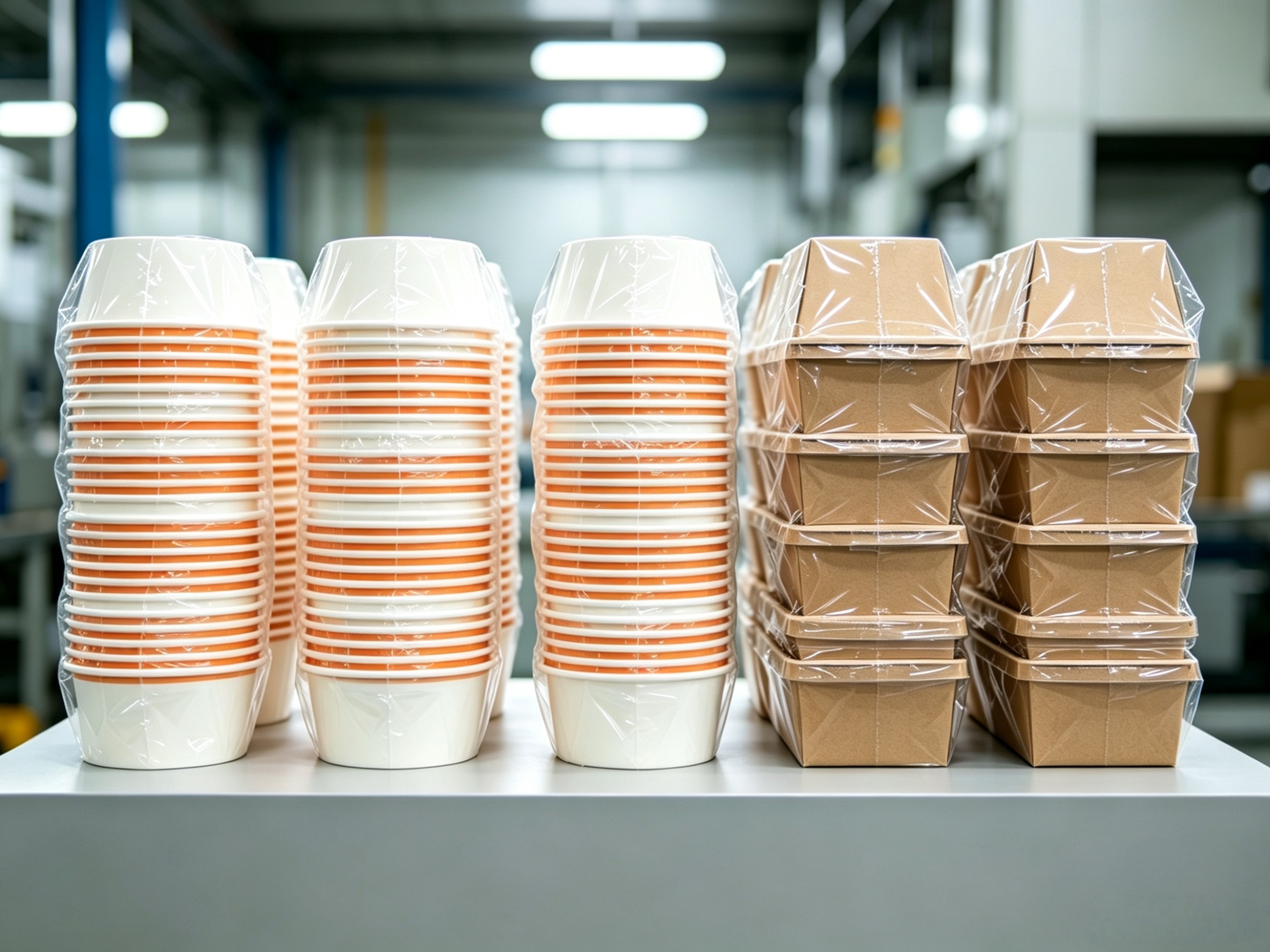

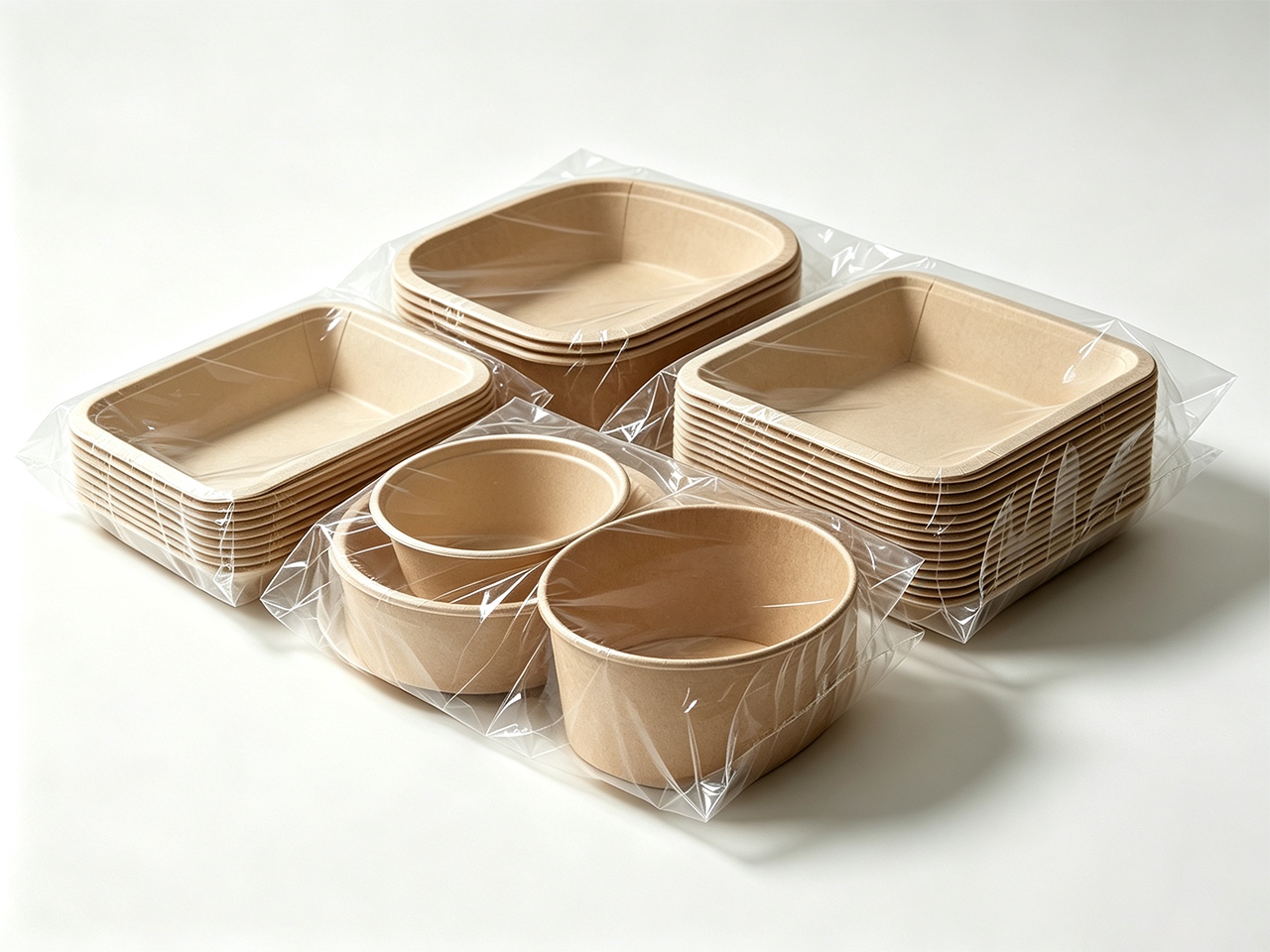

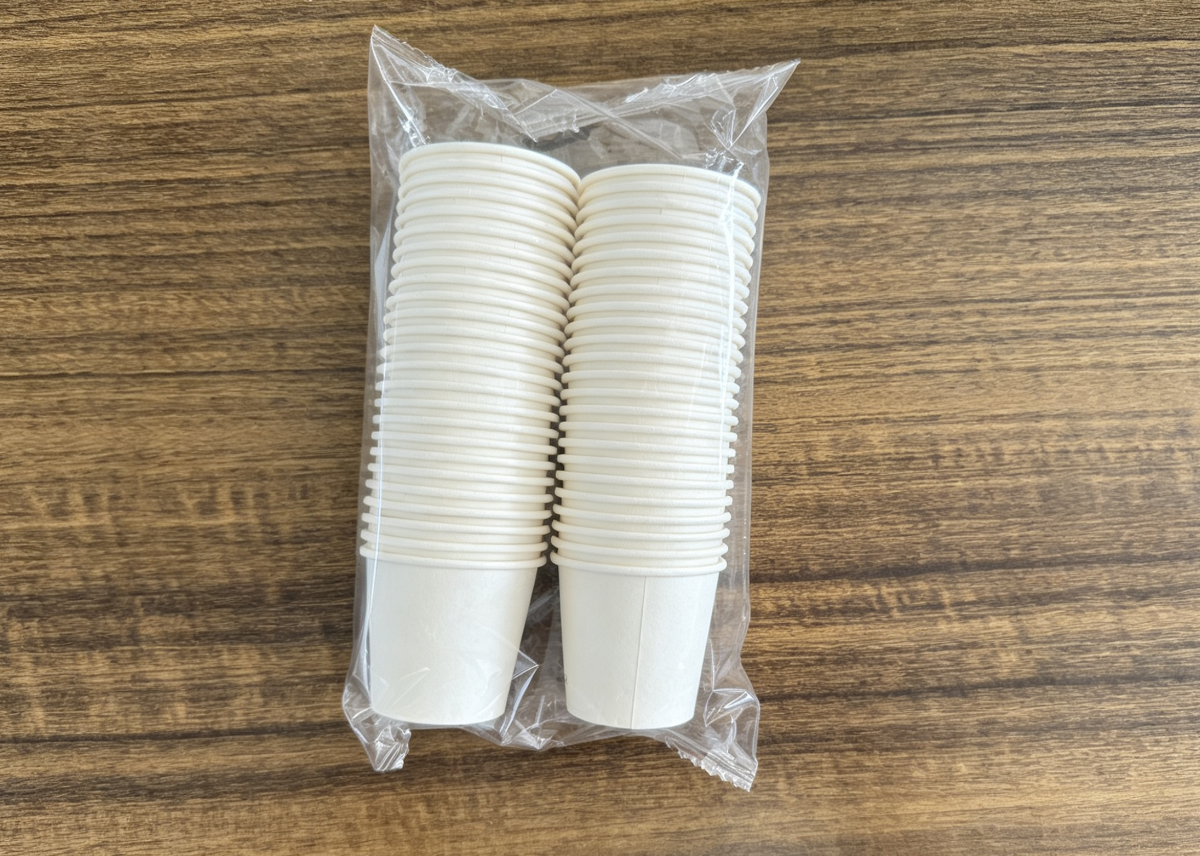

The finished products output by the ML-650 showcase the machine's precision. The finished packages feature transparent film wrapping, neat sealing edges, and consistent appearance. The packaging method helps improve product presentation and provides convenient handling for disposable tableware products. The end seals feature a neat, uniform crimp that not only secures the package but also adds a professional finish to the disposable tableware.
Understanding the mechanical capabilities of your equipment is vital for integrating it into existing production lines. The following parameters detail the operational limits and physical requirements of the ML-650, highlighting its broad compatibility with different film widths and its consistent packaging speed. The streamlined transmission system ensures these parameters are maintained with minimal daily upkeep.
Parameter Name (English) | Qualification |
|---|---|
Max Film Width | 450mm |
Film Thickness | 0.02-0.06mm |
Packing Speed | 1-20 bag/min |
Power | 3kw |
Package Length | 300-1000mm |
Product Size | φ50-120mm |
Packaging Method | Horizontal packing |
Materials | PE, CPP, OPP |
Air Source Requirements | 0.5-0.8MPa |
Edge Banding | ≤10mm |
Overall Dimensions | Customize according to customer requirements |
The ML-650 uses Delta control components and Schneider electrical protection components, including PLC, touch screen, servo drivers, servo motors, and switches. These components support accurate control of the packaging process and reliable machine operation.The integration of Delta servo systems and Schneider switches ensures that the machine responds instantly to operator commands while maintaining a safe working environment.
Order Number | Name | Brand | Unit | Quantity |
|---|---|---|---|---|
1 | programmable control unit | Delta | Pc | 1 |
2 | touch screen | Delta | Pc | 1 |
3 | servo drivers | Delta | Pcs | 2 |
4 | servo motor | Delta | Pcs | 2 |
7 | circuit breaker | Schneider | Pcs | 3 |
9 | shutdown switch | Schneider | Pc | 1 |
10 | emergency stop switch | Schneider | Pc | 1 |
11 | enable switch | Schneider | Pc | 1 |
12 | Click Switch | Schneider | Pc | 1 |
13 | Switching Mode Power Supply | Bastu | Pc | 1 |
14 | Enlarged Version | Bastu | Pc | 1 |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.
The physical construction of the ML-650 reflects a commitment to structural rigidity and logical component layout. The accessible design of the transmission system simplifies routine lubrication and inspection, The machine structure is designed for convenient operation and maintenance, supporting efficient daily production management.
We recognize that integrating new automated machinery requires reliable technical backing to ensure a smooth transition. Every ML-650 packaging machine undergoes rigorous pre-factory debugging to verify that the sensors, temperature controls, and servo motors are perfectly synchronized before shipment. To further eliminate operational concerns, we provide comprehensive operation guidance videos that walk your team through setup, daily use, and basic troubleshooting.
Pre-Shipment Debugging: Strict quality checks and simulated production runs to ensure immediate functionality upon arrival.
Visual Training Materials: Detailed video tutorials covering parameter settings, film roll replacement, and maintenance routines.
Long-Term Assurance: A solid warranty commitment paired with We provide operation guidance and technical support to help customers install, operate, and maintain the ML-650 packaging machine efficiently. To resolve any mechanical or software queries swiftly.
Our dedicated support structure is designed to help you maximize the lifespan of your investment and maintain uninterrupted packaging operations for your disposable tableware lines.
