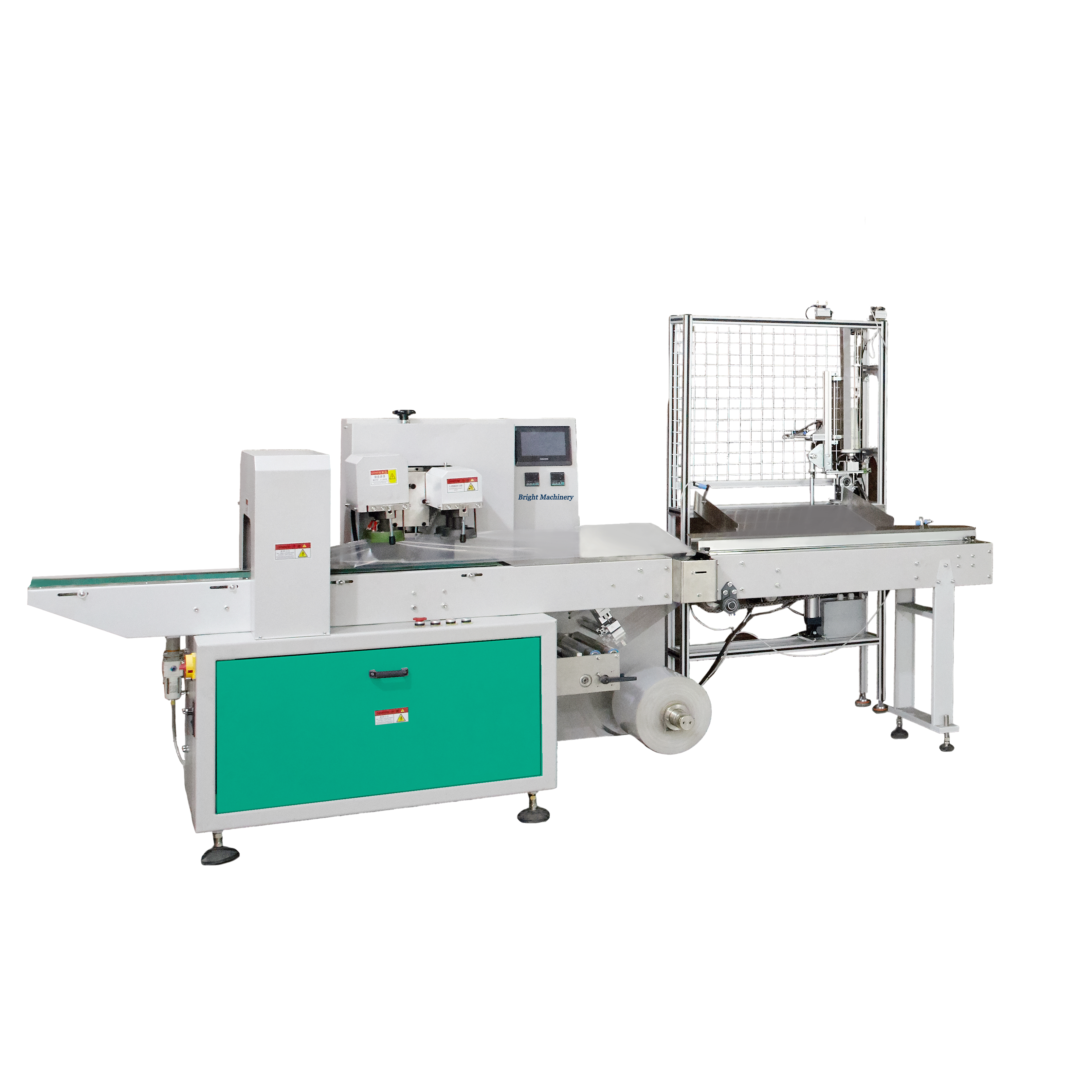

The ML-800 Automatic Salad Paper Bowl Packaging Machine is designed for efficient horizontal pillow packaging of salad paper bowls and disposable food containers. The machine integrates automatic feeding, counting, film wrapping, sealing, and cutting functions to support continuous packaging operations. With a high-precision control system and stable mechanical structure, it helps improve packaging efficiency and reduce manual handling during production.
The machine supports automatic product feeding, counting, film wrapping, sealing, and cutting processes to complete finished packaging efficiently. It is suitable for packaging salad paper bowls and similar disposable food containers in food packaging applications. With adjustable packaging parameters, the ML-800 can adapt to different product sizes and packaging requirements according to production conditions.
Parameter Name (English) | Qualification |
|---|---|
Power | 220v 60HZ |
Packaging Speed | 1–20 points per minute |
Adappc Film Thickness | 0.03mm-0.06mm |
Materials | PE, CPP, OPP |
Package Length | 100~400mm |
Product Size | φ60-φ80mm |
Tightness Of Packaging | Packaging bag gap: 20 mm |
Edge Banding | ≤10mm |
Overall Dimensions | 3500×1200×1250mm |
Packaging Method | Horizontal Packaging |
Overall Weight | 800kg |
Air Source Requirements | 0.5-0.8MPa |
Power | 2.8kw |
Package Film Width | 780mm |
The ML-800 operates with a 220V 60HZ power supply and provides a packaging speed of 1–20 packs per minute according to product specifications and operating conditions. It supports PE, CPP, and OPP films with thicknesses from 0.03mm to 0.06mm, package lengths from 100mm to 400mm, and product sizes of φ60–φ80mm. With a horizontal packaging structure, overall dimensions of 3500×1200×1250mm, and a weight of 800kg, the machine is designed for stable installation and continuous packaging operations. Equipment Configuration:
Order Number | Name | Brand | Unit | Quantity |
|---|---|---|---|---|
1 | programmable control unit | Delta | Pc | 1 |
2 | touch screen | Delta | Pc | 1 |
3 | servo drivers | Delta | Pcs | 2 |
4 | servo motor | Delta | Pcs | 2 |
7 | circuit breaker | Schneider | Pcs | 3 |
9 | shutdown switch | Schneider | Pc | 1 |
10 | emergency stop switch | Schneider | Pc | 1 |
11 | enable switch | Schneider | Pc | 1 |
12 | Pulse switch | Schneider | Pc | 1 |
13 | Switching Mode Power Supply | Bastu | Pc | 1 |
14 | Enlarged Version | Bastu | Pc | 1 |
The ML-800 is equipped with selected electrical control components, including Delta programmable control units, touch screens, and servo drivers, together with Schneider electrical protection components. These components support coordinated operation of the feeding, wrapping, sealing, and cutting processes. The use of standardized electrical components helps simplify maintenance and supports reliable machine operation.
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.
The ML-800 is designed for food packaging applications with a structure suitable for regular production environments. Machine materials and surface treatment can be customized according to customer requirements and production conditions.
The machine adopts an automatic control system to coordinate packaging operations, helping improve production consistency and simplify operation. Specific functions such as product detection and alarm systems can be configured according to customer requirements.This prevents the creation of empty packages, significantly reducing material waste and ensuring safe, unattended operation during high-volume production runs.
The ML-800 supports adjustment of packaging parameters according to different product sizes and packaging requirements. Customized machine configurations can be provided for different production needs.This eliminates the need for complex tools, making batch changes physically effortless and highly efficient for facilities managing diverse product portfolios.
The machine can be integrated with compatible upstream or downstream production equipment according to customer requirements, supporting customized automated packaging solutions.This connectivity is vital for facilities looking to build or expand into a fully automated, hands-free production line.
The equipment can be tailored to meet specific facility space constraints, unique packaging material requirements, and targeted capacity demands. This comprehensive non-standard customization service covers everything from initial design layouts to final manufacturing, ensuring the machine perfectly aligns with specific operational goals.
The PLC-based control system supports convenient operation and maintenance. Technical support and spare parts services can be provided according to customer requirements to ensure long-term machine operation.allowing technical teams to troubleshoot issues swiftly without waiting for on-site visits.
