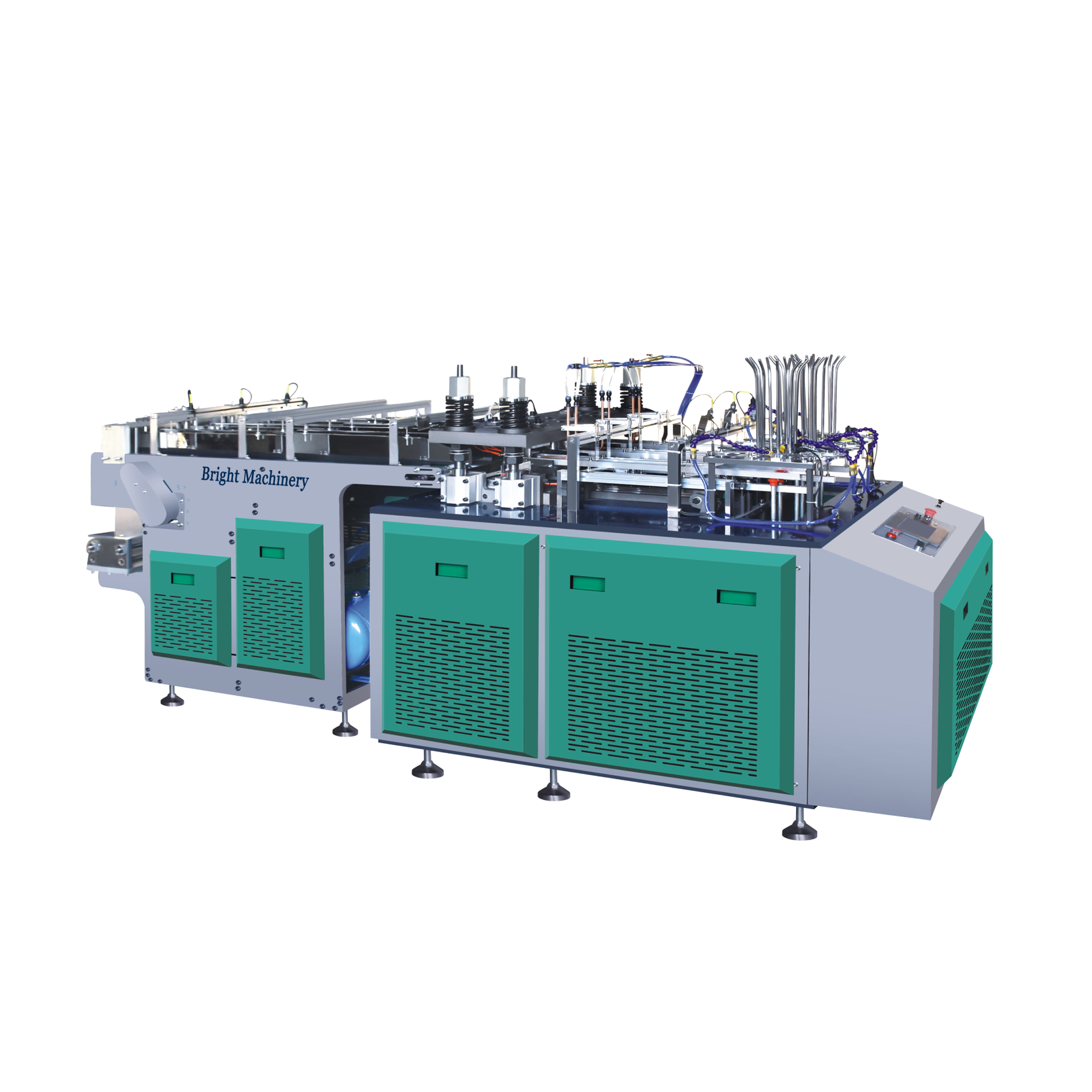

ML 700S Paper Plate Machine Description:
Our ML700S has the advantage of high speed, stable performance, safety operation, energy saving and more humanized designing. It adopts the cam with the machine, the biggest pressure can reach 4t, so it is more environmental protection and energy saving compared with air cylinder. It is the ideal equipment to produce different plate, and that can be achieved by changing different molds.
ML 700S Paper Plate Machine Features:
Capable of producing cake paper plates
Three-station mechanical control system
Equipped with photoelectric system
High production speed for cake paper plates: 150–180 Pcs/min (three-station)
Built-in photoelectric detection device with automatic fault alarm for safer and worry-free production

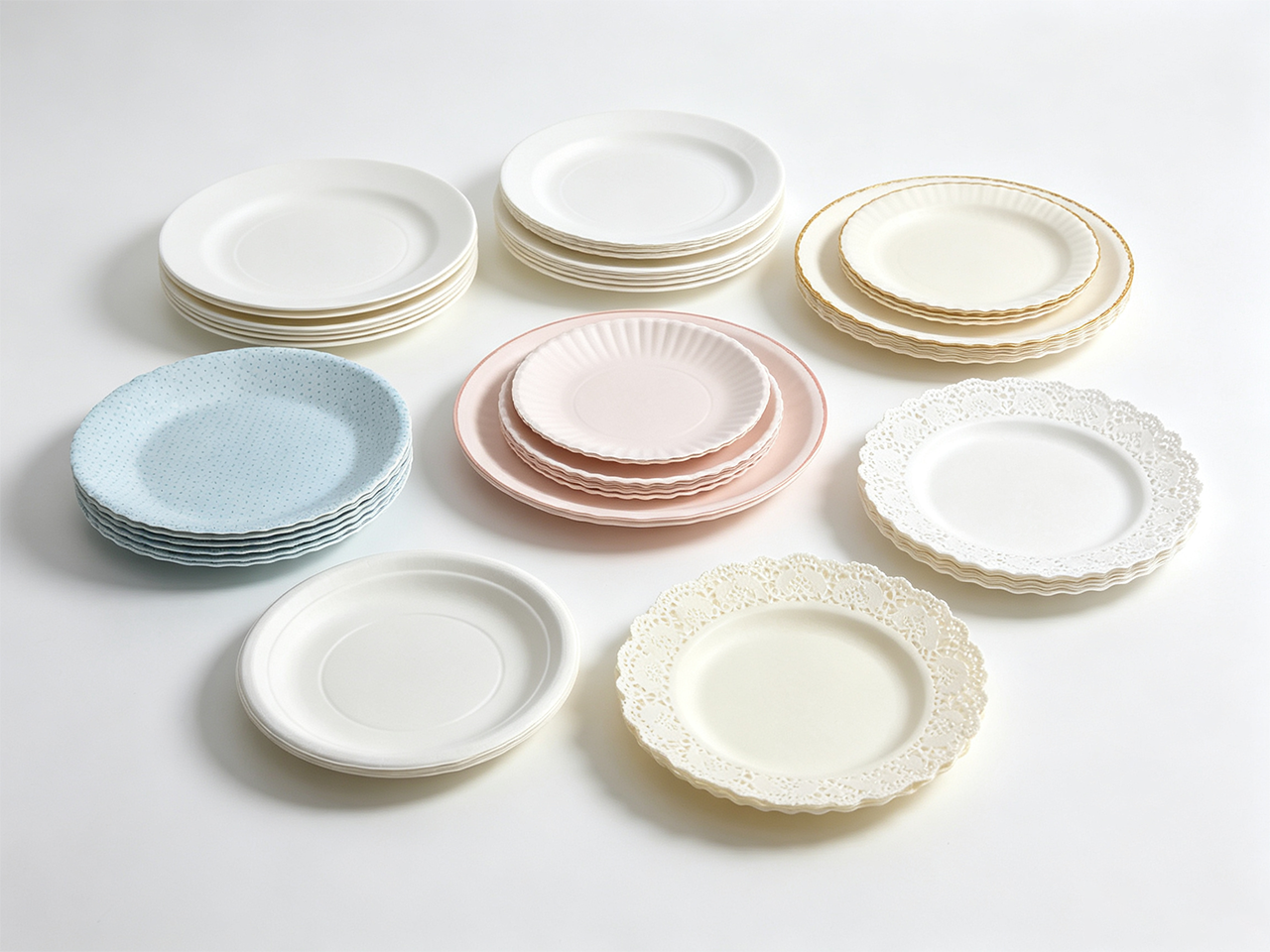

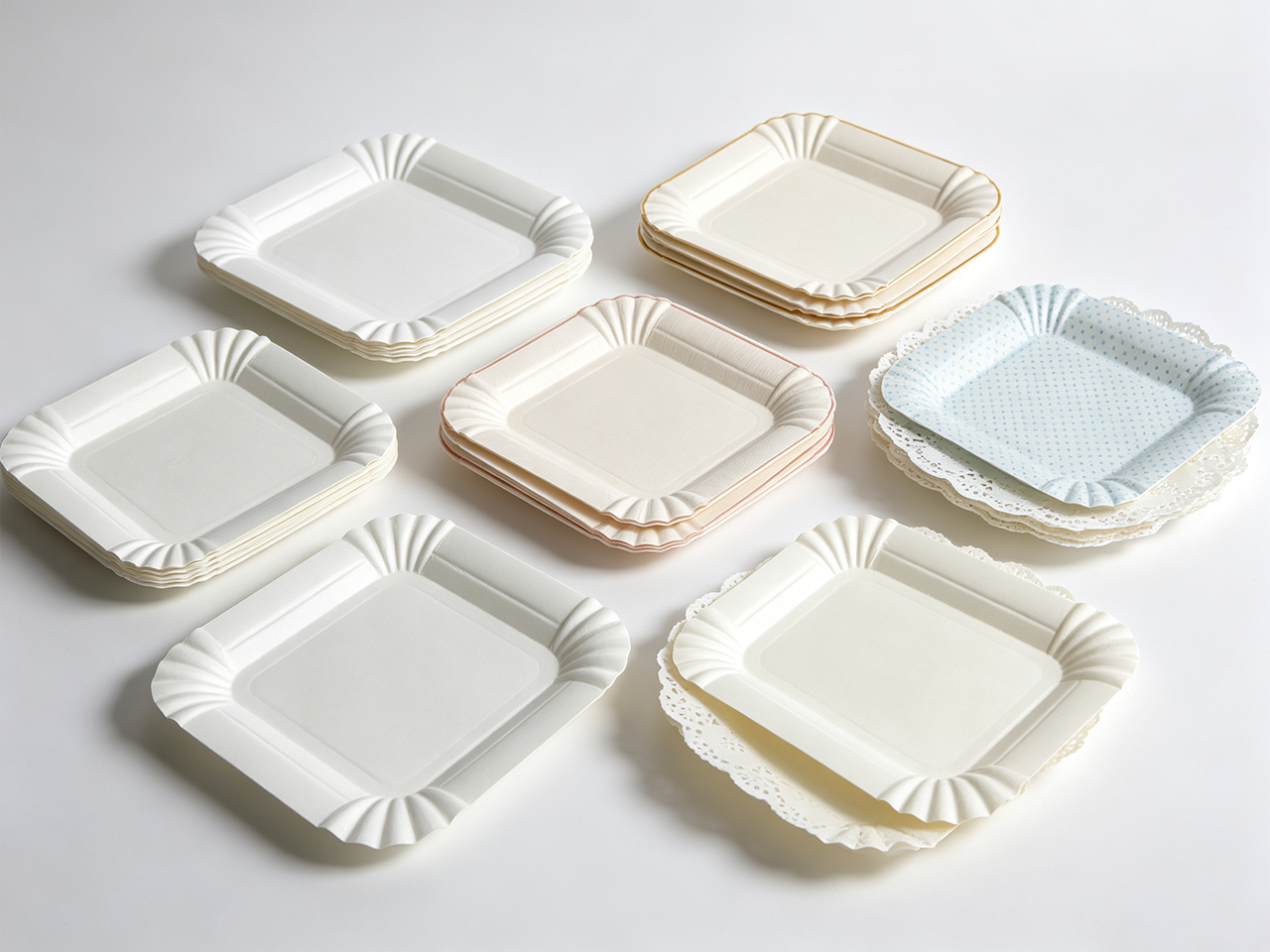

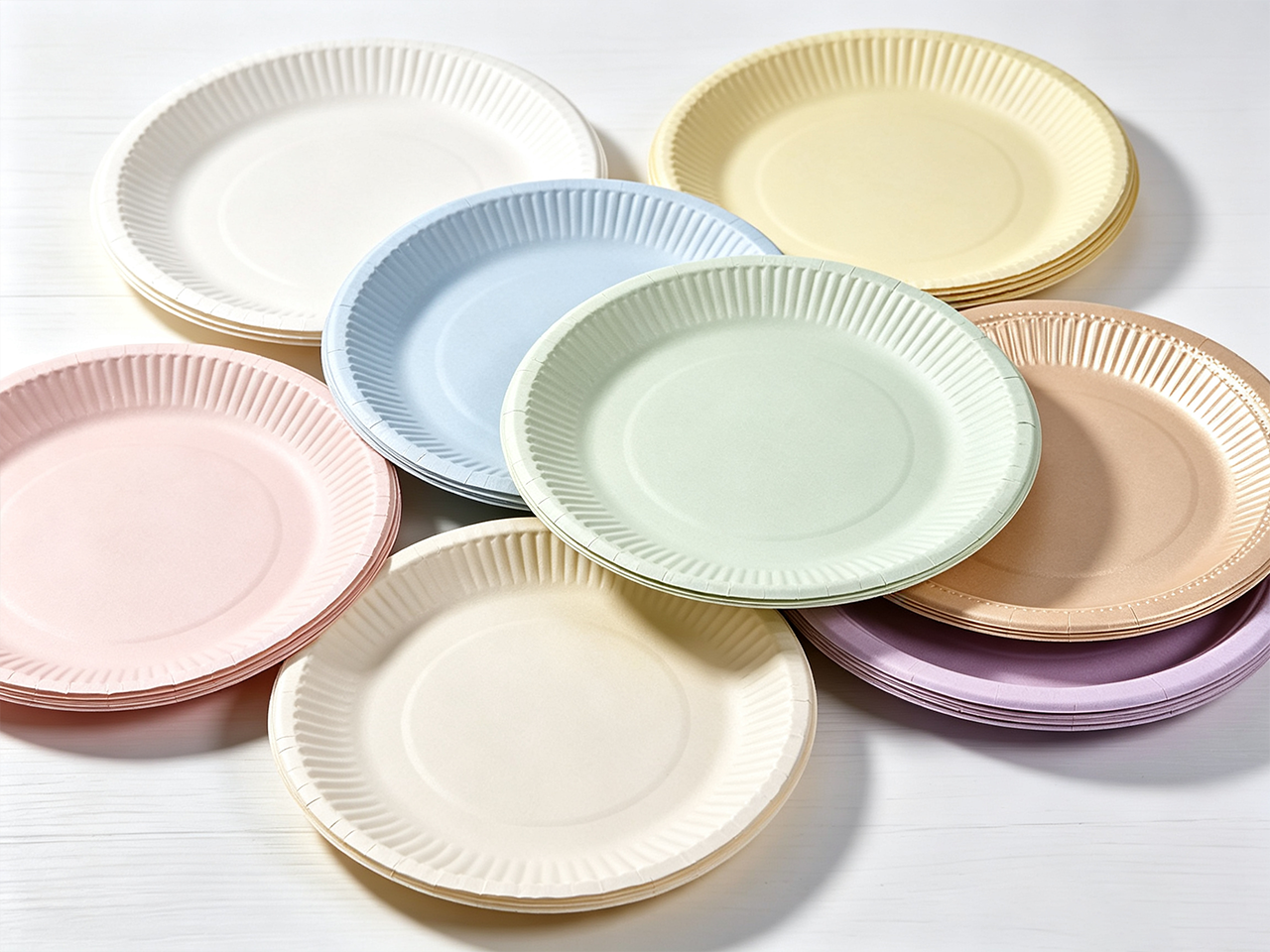

Sample Made From Machine:
Main Technical Parameters
Paper Plate Size | 3-6” |
|---|---|
Paper Grams | 180-500g/m² |
Paper Materials | Base paper, whiteboard paper, white cardboard paper or others |
Capacity | Three stations 150-240pcs/min |
Power Requirements | 380V 50HZ |
Total Power | 3.5KW |
Weight | 1000kg |
Specifications | 3300×1100×1500mm |
Air Supply Requirement | 0.4Mpa, 0.3cube/min |
Other Notes | Customize |
Electrical Configuration
NO | Spare Parts | Supplier |
|---|---|---|
1 | Normally Closed Photoelectric | Bifuning |
2 | Stainless Steel Heating Pipe | Jiangsu Rong Dali |
3 | Switch Button | Shanghai Yijia |
4 | Normally Open Photoelectric | Bifuning |
5 | Solenoid Valve | Taiwan Airtac |
6 | Bearing | Harbin |
7 | Temperature Sensor | WHENZHOU CHIN GROUP |
8 | AC Contactor | Chint |
9 | Frequency Transformer | Eura |
10 | Temperature Controller | Chint |
11 | Counter | Chint |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.
