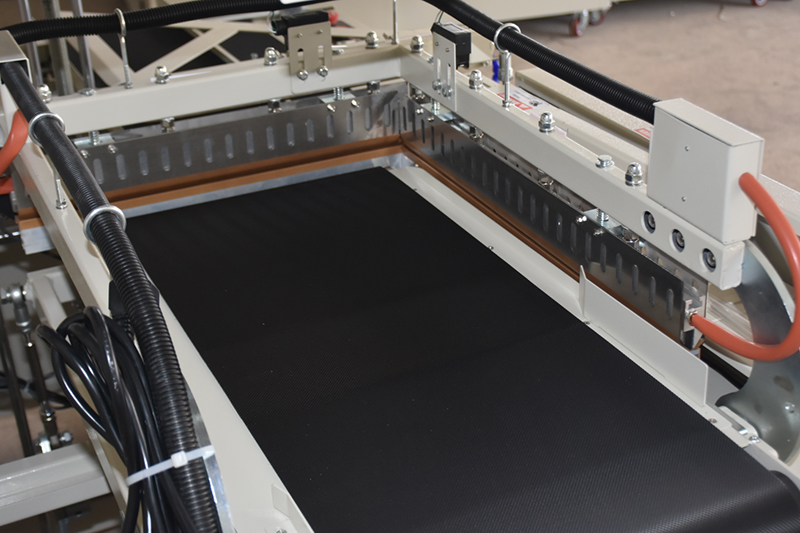

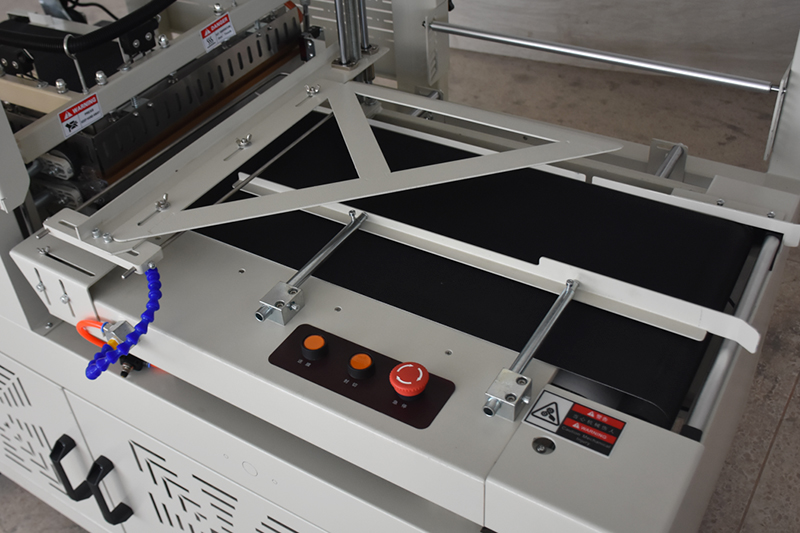

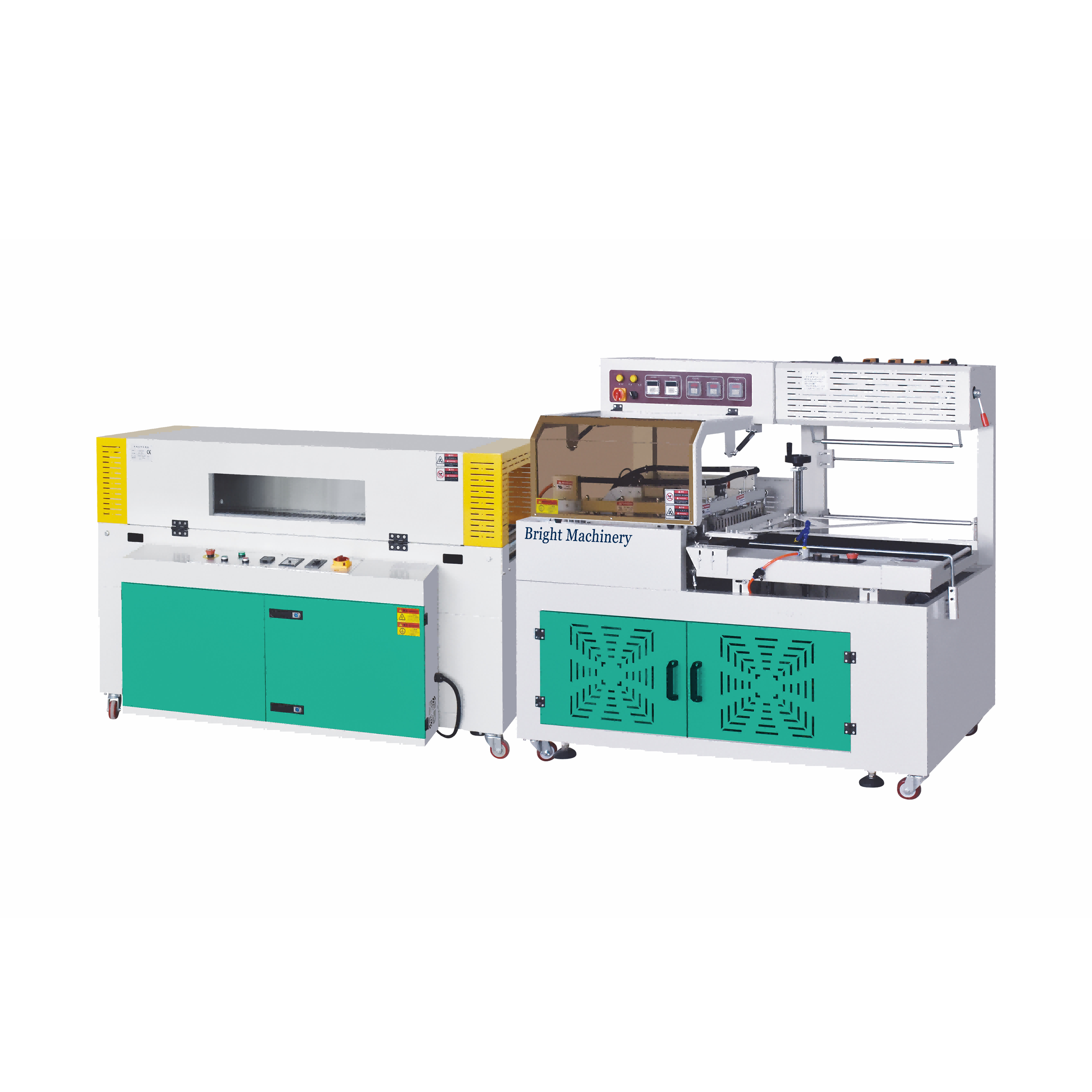

Equipped with a photoelectric detection system, the sealing and cutting machine supports both automatic and manual feeding modes. It adopts folded film structure to complete sealing on three sides. Featuring a constant-temperature heating sealing and cutting system, it is compatible with various heat-sealable films including PE, PVC and POF, delivering firm and smooth seals, and is particularly suitable for POF film sealing and cutting processes. Switching between product sizes only requires simple handwheel adjustment without any part replacement, ensuring efficient format changeover and easy operation. Fitted with an adjustable-speed feeding system and a rear storage platform, it supports high-speed unattended automatic operation. The matching 4525K visual heat shrinking machine comes with a full transparent viewing window for real-time monitoring of shrinkage effects and quick parameter adjustment. It adopts a circulating hot air design for even and stable heating. Combined with a stepless speed regulation conveyor belt and an independent cooling fan, it effectively eliminates film wrinkles and delivers neat finished packages.
Sample Made From Machine
Main Technical Parameters
450L Technical Specifications
Power Supply Voltage | 220V/50-60HZ |
|---|---|
Air Pressure | 0.5Mpa |
Power | 1.6 kw |
Packaging Speed | 15-30bags/min |
Max. Packaging Size | L460*W340*H140mm |
Sealing Knife Size | L560MM *W440mm |
Overall Machine Dimensions | L1650*W880*H1450mm |
Conveyor Belt Width | 330mm |
Max. Film Width | 530mm |
Total Machine Weight | 300kg |
4525K Technical Specifications
Power Supply Voltage | 380V/50-60HZ |
|---|---|
Power | 16 KW |
Conveying Speed | 0-12m/min |
Shrink Oven Tunnel Size | 1500*450*250mm |
Overall Machine Dimensions | L1800*W910*H1120mm |
Conveyor Material | Chain type |
Table Height from Ground | 780mm |
Conveying Load Capacity | 40kg |
Total Machine Weight | Approx. 180 KG |
Applicable Shrink Film | POF. PVC. PP |
Electrical Configuration
450L Electrical Configuration
Name | Quantity | Manufacturer |
|---|---|---|
Air Cylinder | 1 | Airtac |
Motor | 1 | Dongbang |
Photoelectric Switch | 1 | Omron |
Intermediate Relay | 1 | Omron |
Digital Temperature Controller | 1 | Xinpu |
Relay | 3 | Xinling |
Sealing & Cutting Blade | 2 | High-temperature Alloy Steel with Teflon Coating |
Indicator Light | 2 | People |
Knob Switch | 1 | Shuangke |
Push Button Switch | 2 | Shuangke |
Emergency Stop Switch | 1 | Shuangke |
Power Switch | 1 | Gelei |
Micro Switch | 4 | Omron |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.
4525K Electrical Configuration
Name | Quantity | Manufacturer |
|---|---|---|
Conveying Motor | 1 | Dongbang |
Fan Motor | 2 | Sulin |
Intelligent Instrument | 1 | Xinling |
Square Switch | 3 | Fengshida |
Circuit Breaker | 1 | Chint |
AC Contactor | 1 | Chint |
Potentiometer | 1 | Huayu |
Speed Regulator | 1 | Huakai |
Heating Tube | 6 | Liande |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.
