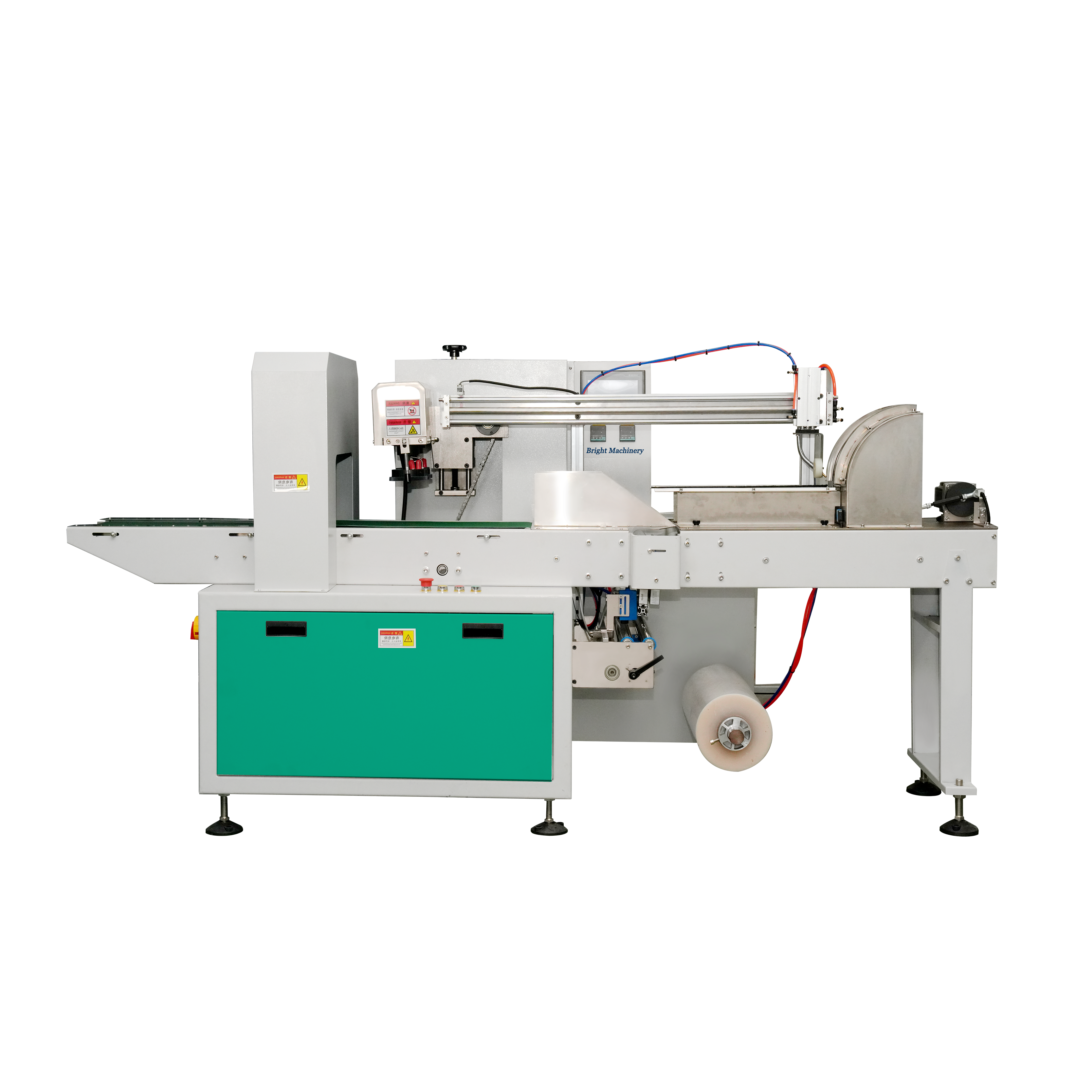

The ML-800 Automatic Paper Lid Packaging Machine is designed for larger paper lid products and higher-volume packaging requirements. Supporting paper lids from φ60 to φ110mm, the machine provides stable horizontal film packaging, including wrapping, sealing, and cutting processes. Compared with manual bag packaging methods, it helps reduce labor requirements and improve production efficiency. Featuring a modular design, the machine can be modified according to different paper lid specifications and packaging requirements, providing greater flexibility for production changes.This means operators can swiftly swap structural components to adapt to different lid dimensions, drastically minimizing line downtime during critical product changeovers. The heavy-duty metallic construction gives the machine a solid, grounded presence on the factory floor, resisting the daily wear of continuous manufacturing.
At the core of its operation is an intelligent control system. Equipped with Delta PLC and touch screen control, the machine allows operators to adjust packaging parameters conveniently and maintain stable operation during daily production. Operators can retrieve specific packaging parameters with a single touch, simplifying the complex workflow and significantly reducing the margin for human error. Designed as a horizontal packaging unit, it synchronizes effortlessly with existing automated production lines, allowing facility managers to adjust packaging speeds dynamically based on real-time output requirements. When standing next to the machine, you can hear the precise, rhythmic engagement of the mechanical parts and the smooth hum of the servo motors, signaling a perfectly timed packaging cycle.
Parameter Name (English) | Qualification |
|---|---|
Power | 220v 60HZ |
Packaging Speed | 1–10 points per question |
Adaptable Film Thickness | 0.02mm-0.06mm |
Materials | PE, CPP, OPP |
Package Length | 300~800mm |
Product Size | φ60-φ110mm |
Tightness Of Packaging | Maximum gap between the product and its packaging bag before and after packaging 20mm |
Edge Banding | ≤10mm |
Overall Dimensions | 2650×850×1250mm |
Packaging Method | Horizontal Packaging |
Overall Weight | 500kg |
Air Source Requirements | 0.5-0.8MPa |
Power | 2.8kw |
Package Film Width | 450mm |
Reviewing the technical specifications reveals a machine built for rigorous, continuous operation. With a 500kg overall weight and horizontal packaging structure, the machine provides a stable foundation for continuous packaging operations. Operating on a standard 220v 60HZ power supply with a 2.8kw consumption, it balances energy efficiency with robust mechanical output. The adaptable film thickness range of 0.02mm to 0.06mm gives procurement teams the flexibility to source various wrapping materials without worrying about machine compatibility.
These components provide accurate control, stable operation, and reliable performance for daily packaging processes.The ML-800 is constructed with industrial-grade durability in mind, utilizing premium electrical and control elements from globally recognized brands. The integration of Schneider circuit breakers and emergency stop switches provides a reassuringly tactile, firm click upon engagement, guaranteeing immediate response during critical safety interventions. Meanwhile, the Delta servo drivers and motors deliver fluid, precise mechanical movements, drastically reducing wear and tear on moving parts. This strategic selection ensures that the machine withstands the rigorous demands of continuous daily operation, extending its lifecycle and minimizing unexpected maintenance stops.
Order Number | Name | Brand | Unit | Quantity |
|---|---|---|---|---|
1 | programmable control unit | Delta | Pc | 1 |
2 | touch screen | Delta | Pc | 1 |
3 | servo drivers | Delta | Pcs | 2 |
4 | servo motor | Delta | Pcs | 2 |
7 | circuit breaker | Schneider | Pcs | 3 |
9 | shutdown switch | Schneider | Pc | 1 |
10 | emergency stop switch | Schneider | Pc | 1 |
11 | enable switch | Schneider | Pc | 1 |
12 | Pulse switch | Schneider | Pc | 1 |
13 | Switching Mode Power Supply | Bastou | Pc | 1 |
14 | Enlarged Version | Bastou | Pc | 1 |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.
Efficient operation of automated packaging equipment requires proper installation guidance and technical support. We provide professional assistance to help customers operate and maintain the ML-800 Automatic Paper Lid Packaging Machine effectively.
Operation Guidance: Provide machine operation instructions to help operators understand equipment functions, parameter settings, and daily operation procedures.
Installation Support: Assist customers with machine setup and initial commissioning to ensure the equipment is properly integrated into the packaging production process.
Technical Assistance: Provide technical guidance for equipment operation, maintenance, and troubleshooting during daily production.
Customization Support: Work with customers to adjust machine configurations according to different paper lid sizes, packaging requirements, and production conditions.
