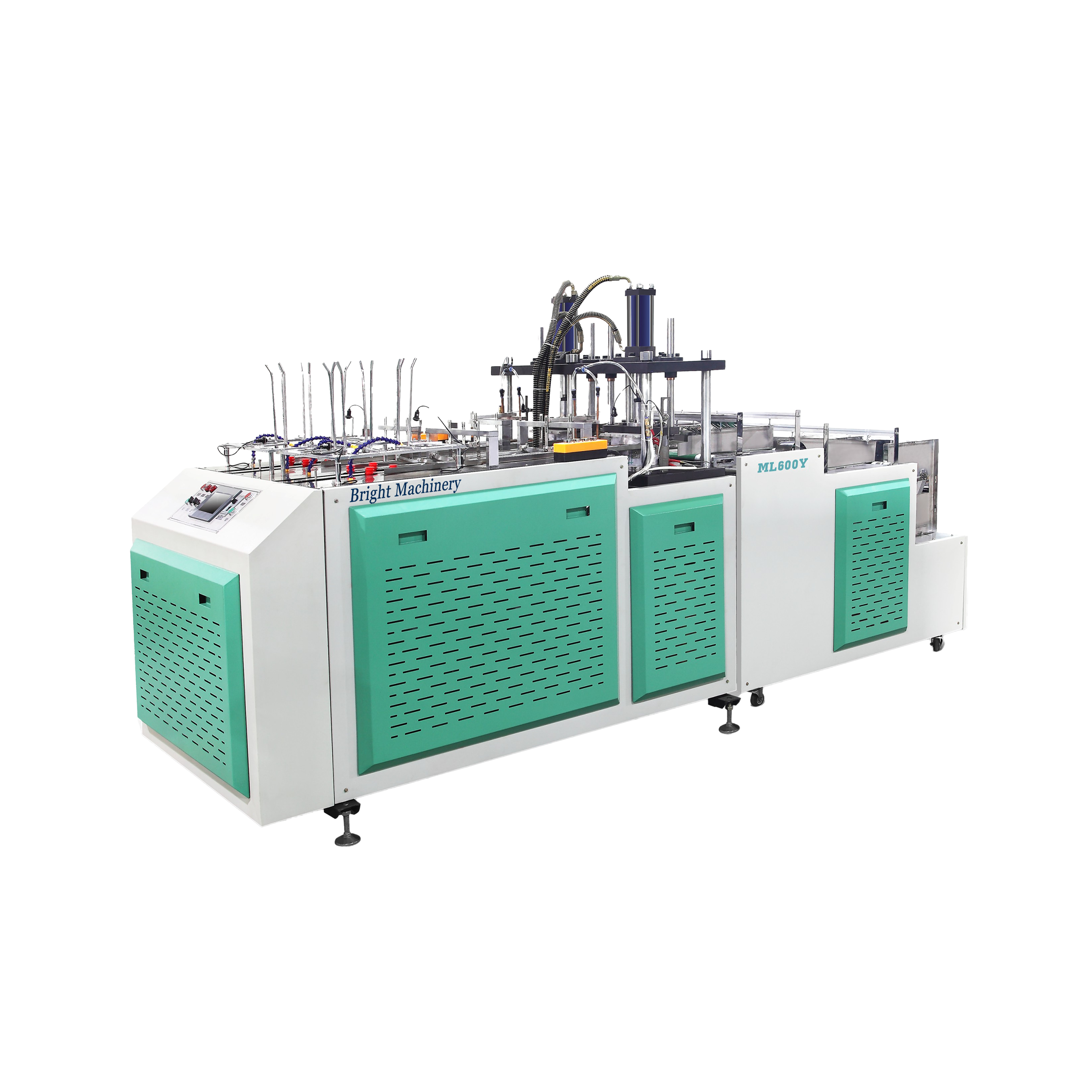

ML 600Y Paper Plate Machine Details:
Our ML 600Y High Speed Hydraulic Double Station Paper Plate Machine use PLC control, with phtoelectric tracking, works in full auto. Its intelligent machine. its double station, each station can work separated, one machine can produce different size and shapes of paper plates at the same time. It has the advantage of stable forming, high efficiency and labour saving. It adopts straight-line forming. the paper feeding, forming and collecting in one straight line. Can connected with packing machine to be full auto line.
Paper Plate Scope of Application:
Our Paper plate machines are used to manufacture disposable paper plates that are widely used across, Anniversary celebrations, Wedding receptions, Birthday parties, Community gatherings, School and college functions, Exhibitions&trade fairs, Concerts& entertainment events, Family reunions, Outdoor picnics& camping events and so on. They are hygienic, lightweight, convenient, and cost-effective.
Sample Made From Machine:
Main Technical Parameters:
Paper Plate Size | 4-13” |
|---|---|
Paper Grams | 150-800g/m² |
Paper Materials | Origin paper, whiteboard paper, white cardboard, craft paper aluminum foil paper or others |
Capacity | Double Stations 40-110pcs/min |
Power Requirements | 380V 50HZ |
Total Power | 8KW |
Weight | 1600kg |
Specifications | 3500×1300×1900mm |
Air Supply Requirement | 0.6Mpa, 0.3cube/min |
Other Notes | Customize |
Oil Cylinder | ML-80-150-5T-X |
Cylinder Stroke | 150mm |
Electrical Configuration:
NO | Spare Parts | Supplier |
|---|---|---|
1 | Hydraulic Motor | Zhejiang Zhonglong |
2 | Normally Closed Photoelectric | Shanghai Qide |
3 | Stainless Steel Heating Pipe | Jiangsu Rong Dali |
4 | Oil Pump | Taiwan |
5 | Counter Switch | Yueqing Tiangao |
6 | Normally Open Photoelectric | Shanghai Qide |
7 | Solenoid Valve | Taiwan Airtac |
8 | Bearing | Harbin |
9 | Temperature Sensor | Shanghai Xingyu |
10 | AC Contactor | Yueqing Tiangao |
11 | Frequency Transformer | Delta |
12 | (Touch Screen) | Delta |
13 | PLC | Delta |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.

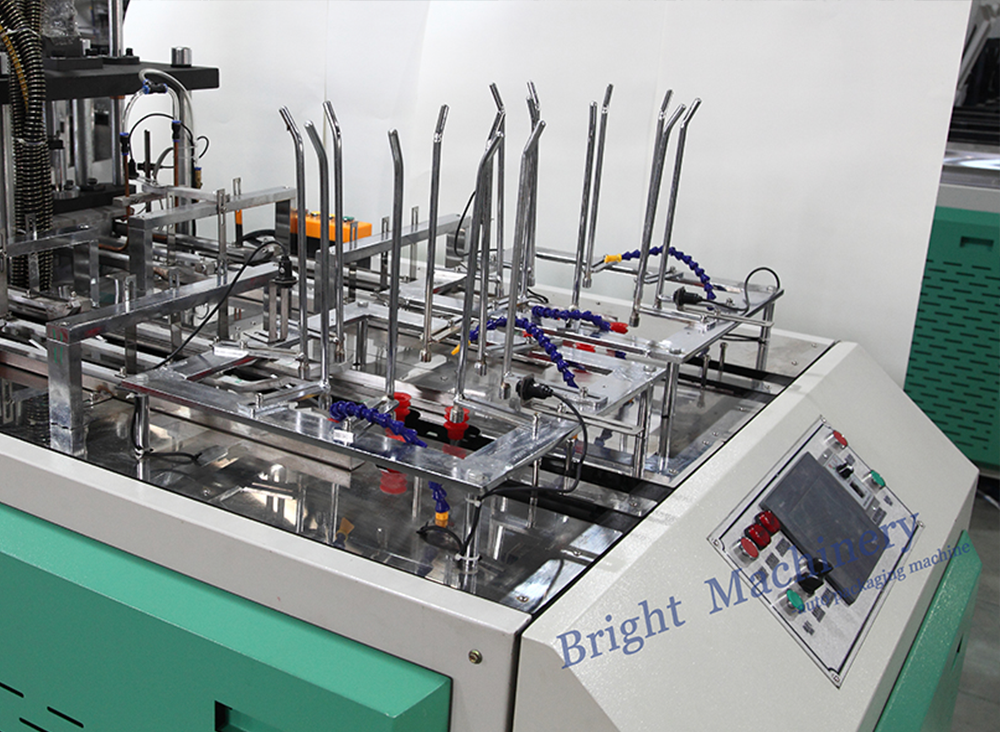

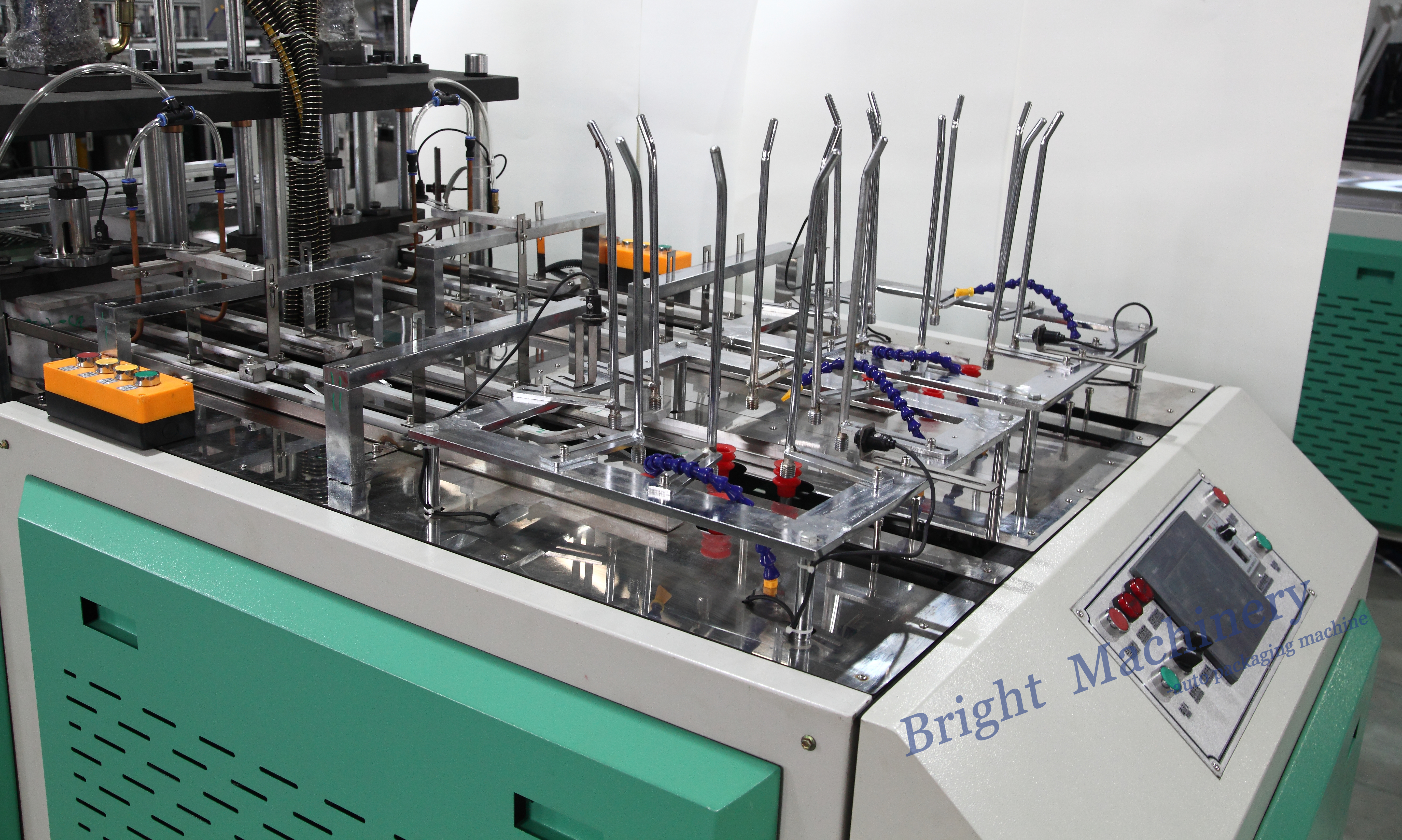

Machine Pic for Reference:
