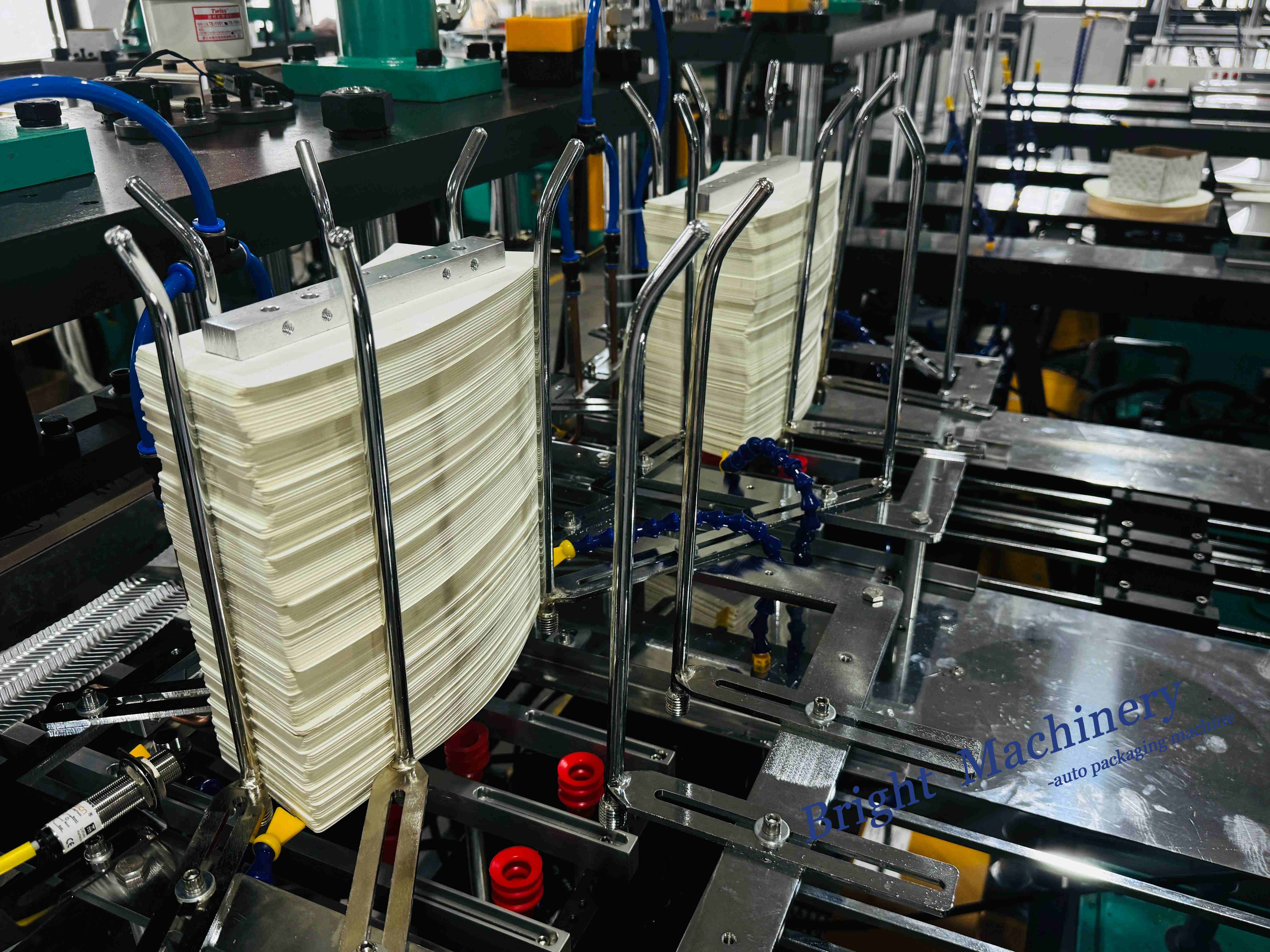

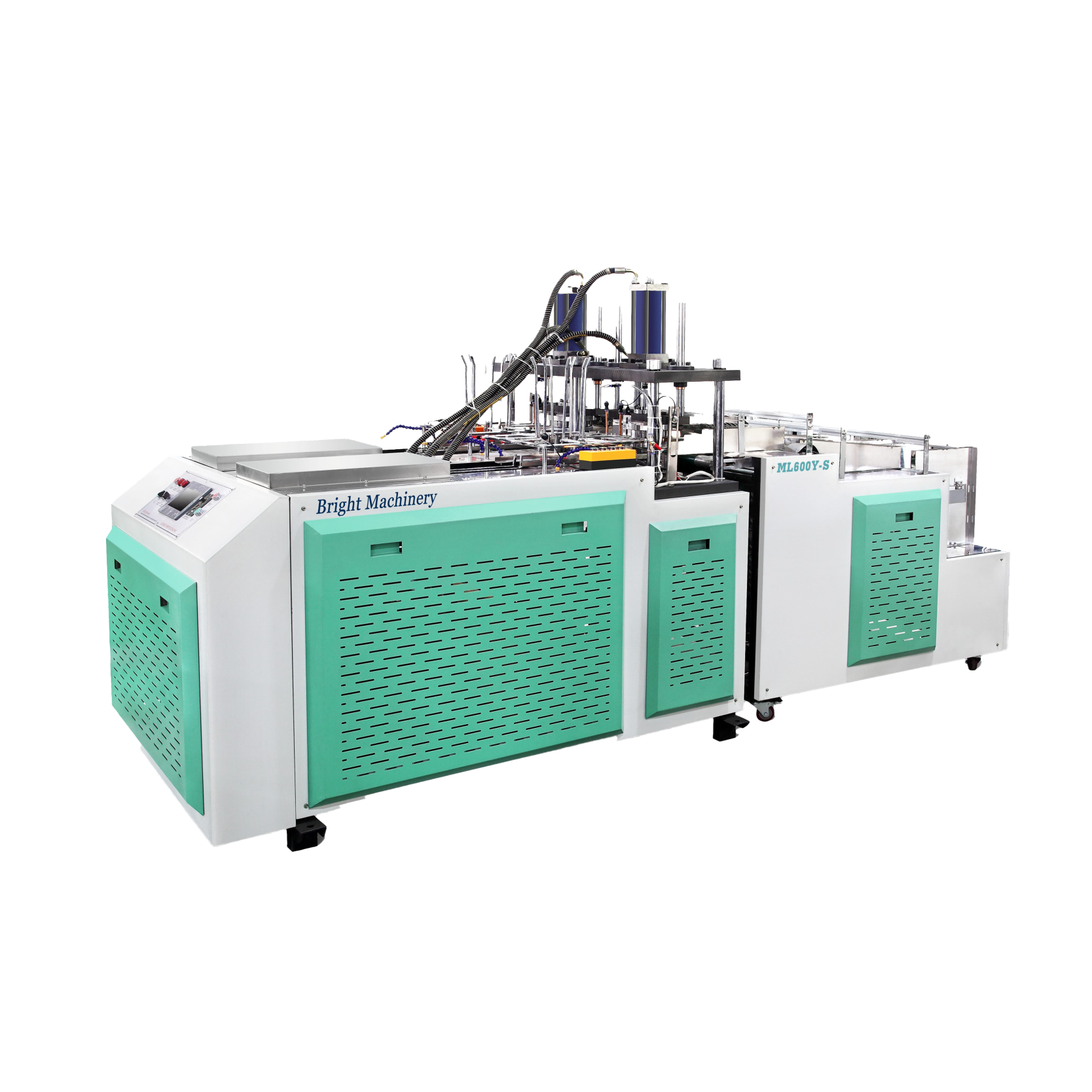

The ML600-S Fully Automatic Hydraulic Double-Station Paper Plate Making Machine is designed for efficient production of standard and special-shaped paper plates. Its paper feeding rack is installed close to the forming station to support a compact and coordinated feeding process. The dual-station independent hydraulic control system allows the two forming stations to operate efficiently, while PLC control and photoelectric detection support automated production and operational monitoring.
The photoelectric detection system monitors the production process and can trigger automatic fault alarms when operating abnormalities are detected. This function helps operators identify production issues promptly and supports safer machine operation. Actual production speed depends on the plate design, material, mold configuration, and confirmed machine operating parameters.

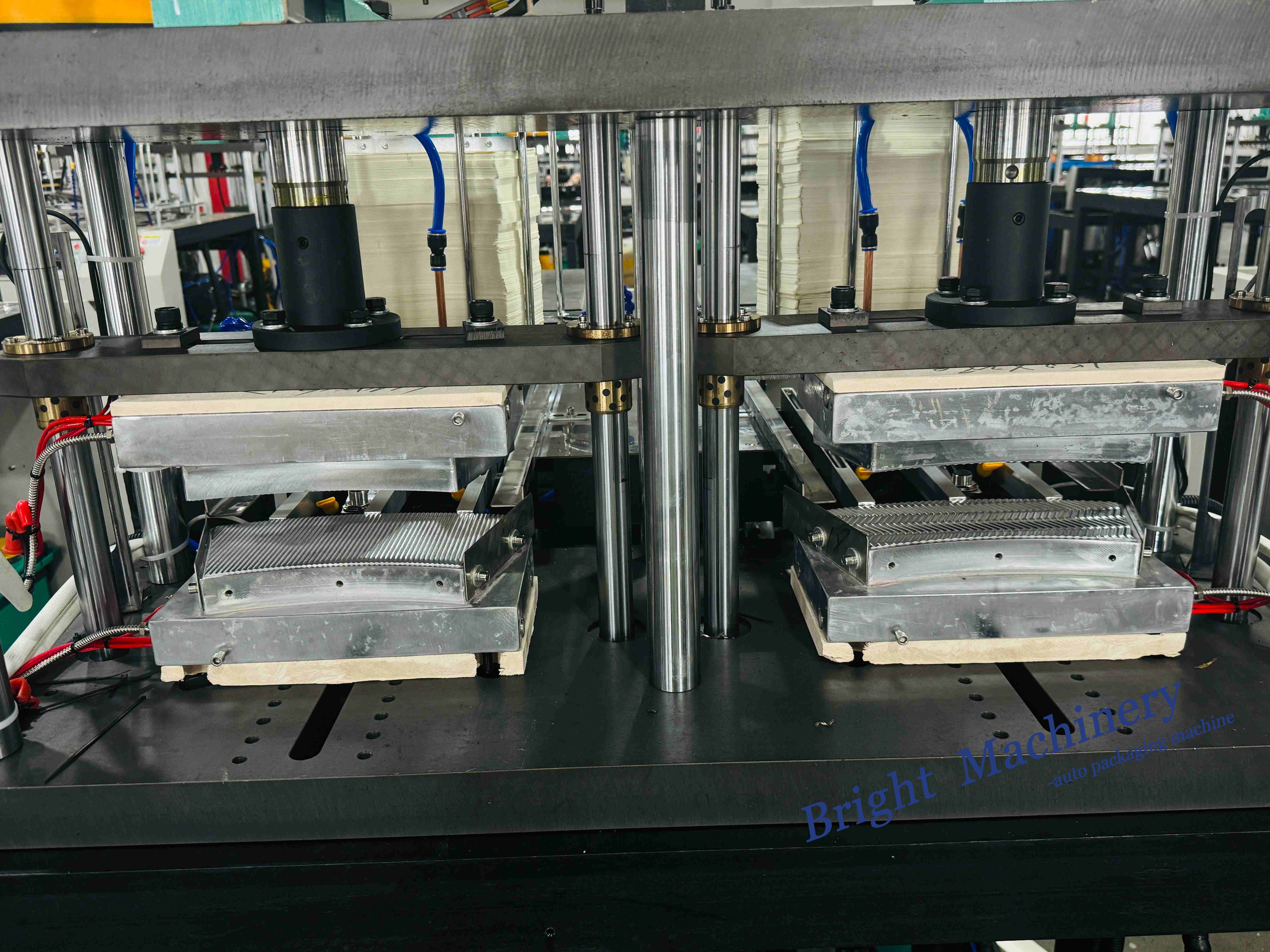

The ML600-S is configured for paper plate production using a dual-station hydraulic forming system. According to the current technical specifications, the machine supports paper weights from 100–800g/m², uses an 8KW power system, and is equipped with an ML-80-150-5T-X oil cylinder with a 150mm stroke. Its overall weight is approximately 1600kg, with machine dimensions of 3500×1300×1900mm. Actual output and forming performance vary according to paper material, plate size, mold design, and production settings.
Paper Plate Size | 4-12” |
|---|---|
Paper Grams | 100-800g/m² |
Paper Materials | Base paper, whiteboard paper, white cardboard, aluminum foil paper or others |
Capacity | Double Stations 40-100pcs/min |
Power Requirements | 380V 50HZ |
Total Power | 8KW |
Weight | 1600kg |
Specifications | 3500×1300×1900mm |
Air Supply Requirement | 0.4Mpa, 0.3cube/min |
Other Notes | Customize |
Oil Cylinder | ML-80-150-5T-X |
Cylinder Stroke | 150mm |
The ML600-S uses selected electrical, hydraulic, sensing, and temperature-control components to support coordinated machine operation. The configuration includes Delta PLC and frequency-control components, Shanghai Qide photoelectric sensors, temperature-control components, and other specified parts according to the machine configuration.
Photoelectric Detection: Shanghai Qide photoelectric sensors are used to monitor the production process. The detection system can support automatic fault alarms when abnormal operating conditions are identified.

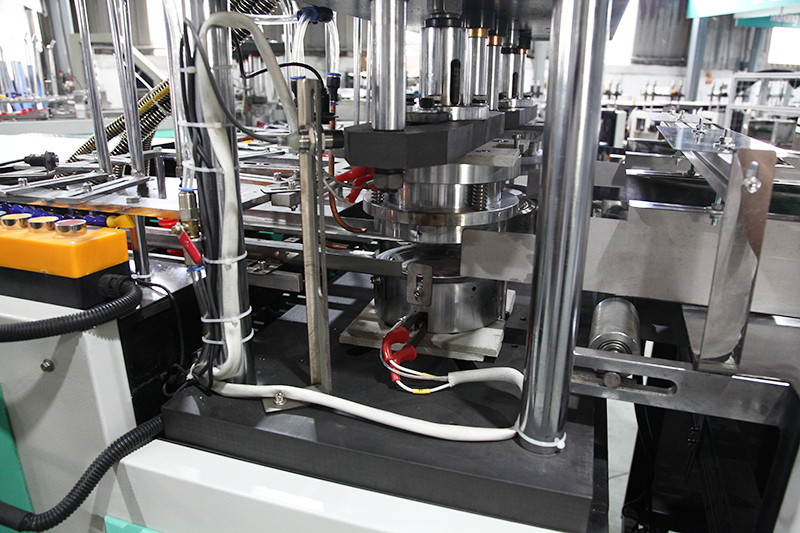

Temperature Control: Temperature sensors, stainless-steel heating pipes, and Delta temperature-control components support temperature management during the forming process. Operating temperatures can be adjusted according to different paper materials and mold requirements.
Control System: The Delta PLC and frequency-control components support coordinated control of machine operation and allow production parameters to be managed according to different processing requirements.
NO | Spare Parts | Supplier |
|---|---|---|
1 | Hydraulic Motor | Zhejiang Zhonglong |
2 | Normally Closed Photoelectric | Shanghai Qide |
3 | Stainless Steel Heating Pipe | Jiangsu Rong Dali |
4 | Oil Pump | Taiwan |
5 | Counter Switch | Yueqing Tiangao |
6 | Normally Open Photoelectric | Shanghai Qide |
7 | Solenoid Valve | Taiwan Airtac |
8 | Bearing | Harbin |
9 | Temperature Sensor | Shanghai Xingyu |
10 | AC Contactor | Yueqing Tiangao |
11 | Frequency Transformer | Delta |
12 | Temperature Part | Delta |
13 | PLC | Delta |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.

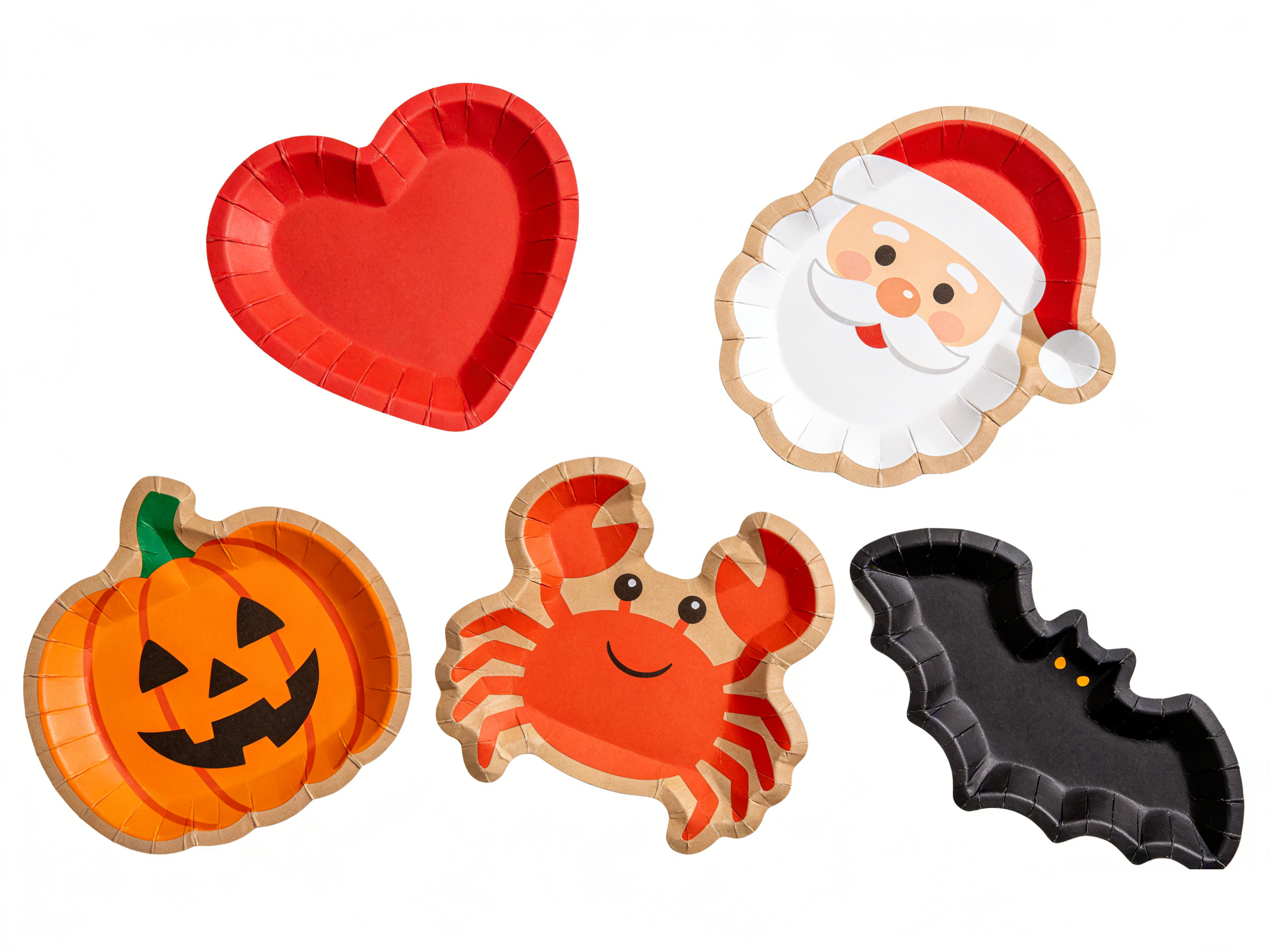

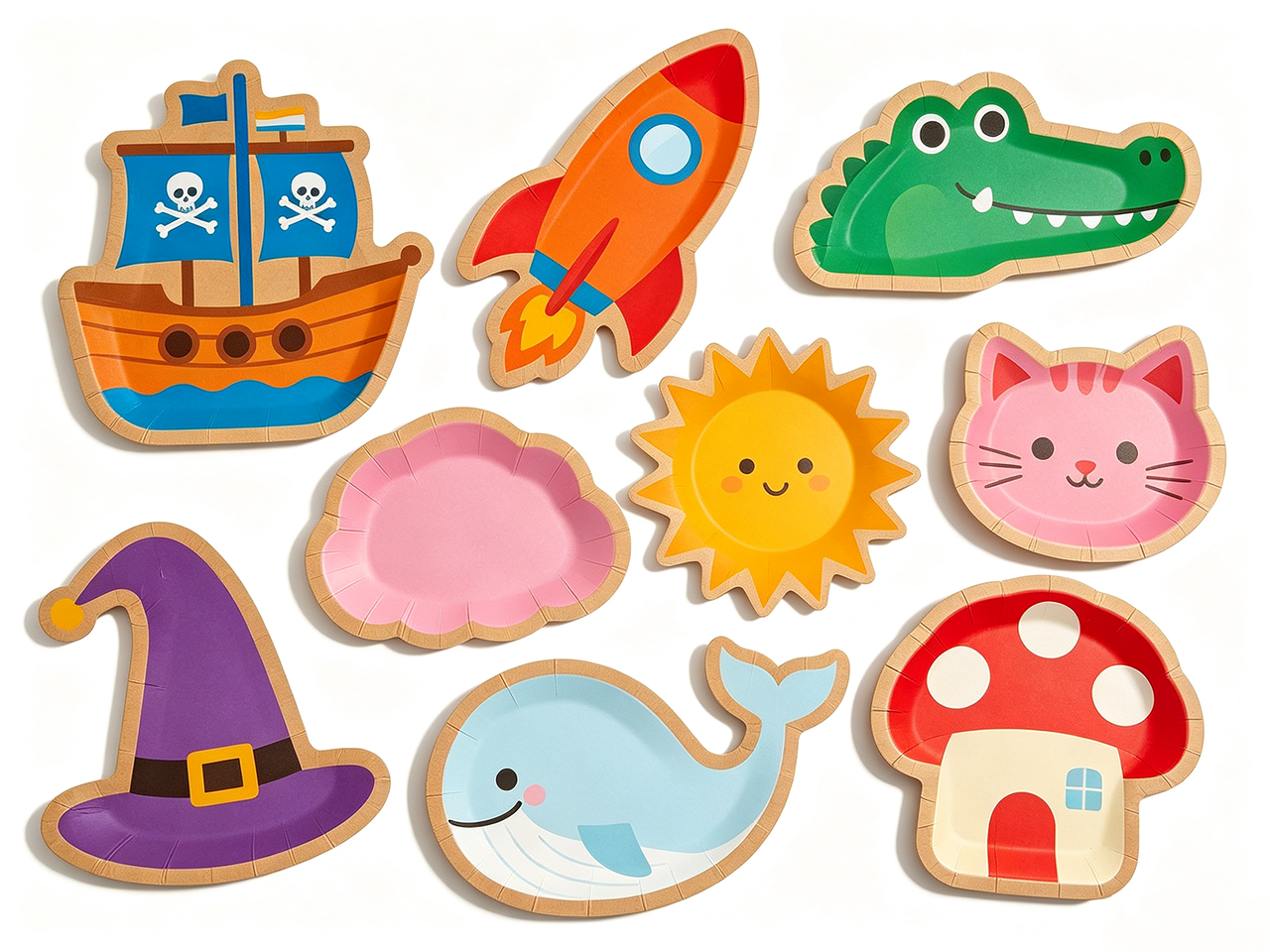

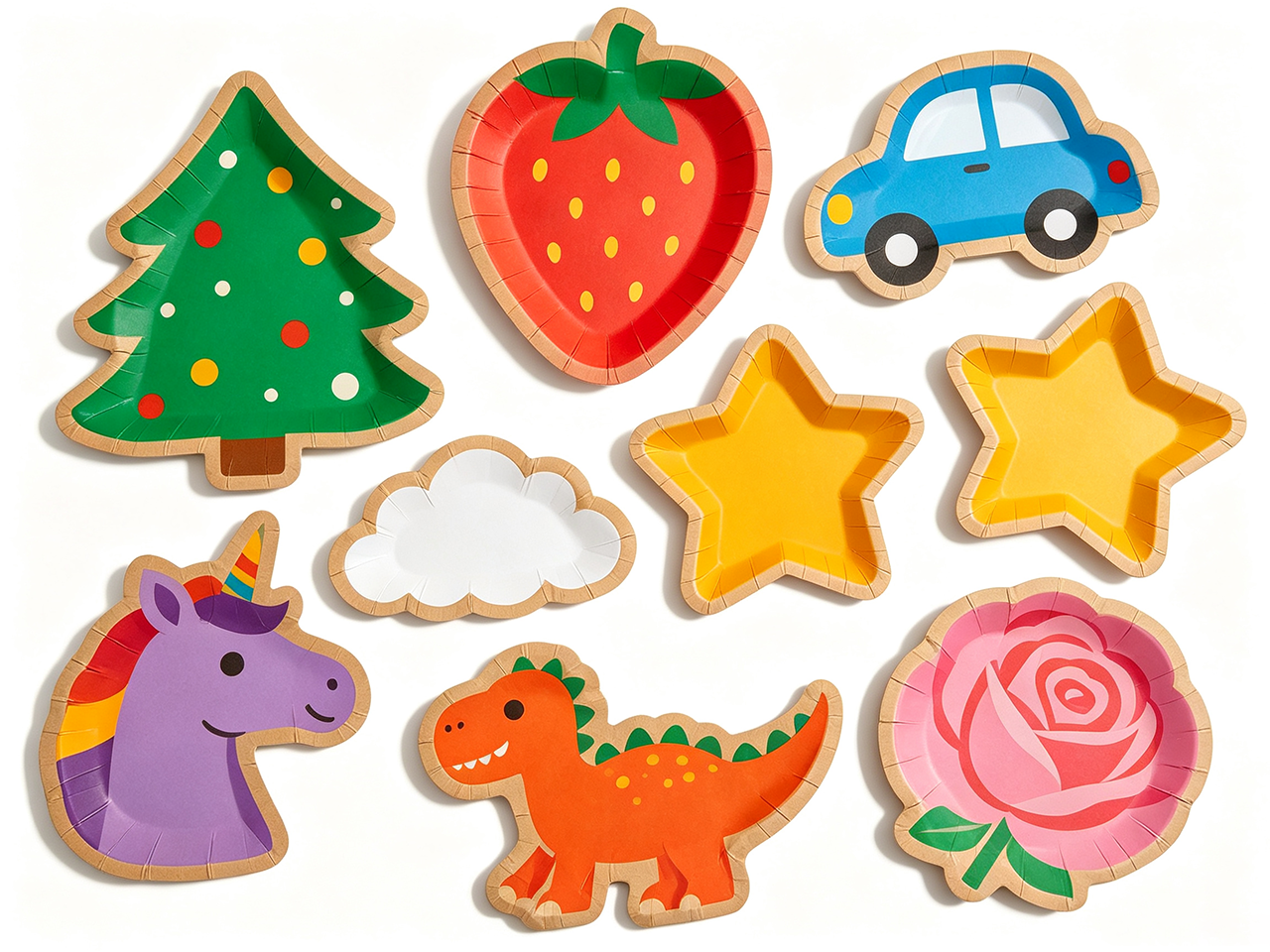

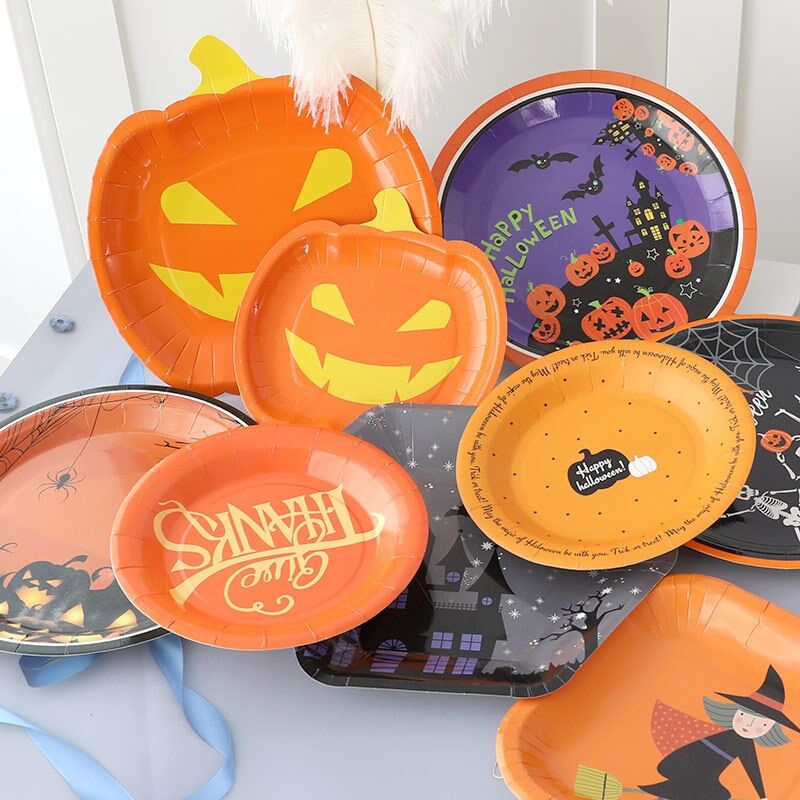

The ML600-S Hydraulic Double-Station Paper Plate Making Machine is suitable for producing a variety of standard and special-shaped disposable paper plates. By changing the forming mold and adjusting machine parameters, manufacturers can process different plate sizes and shapes according to production requirements.
Compatible paper materials include:
Base paper
Whiteboard paper
White cardboard
Aluminum foil paper
Other suitable paper materials according to forming requirements
The machine is suitable for disposable tableware manufacturers, food packaging factories, and paper plate production facilities requiring flexible mold customization and double-station production.
The ML600-S can be configured according to different paper plate production requirements. Paper plate molds, product sizes, plate shapes, and selected machine configurations can be customized based on the customer's target products and production conditions.
For customized projects, customers can provide plate samples, drawings, dimensions, paper specifications, or target production requirements to support machine and mold configuration.
