Machine Description:
Our ML1680Y Hydraulic High Speed Four Station Paper Plate Forming Machine running in high speed, it has following features:
Capable of producing standard round and square paper plates.
Fully enclosed mechanical outer cover.
Four-station hydraulic control system.
Equipped with a photoelectric system.
Fitted with servo drive.
Adopts vacuum pump.
The complete machine comes with a mechanical protective enclosure, which is safe and sturdy.
Four-station hydraulic control system with precise pressure regulation.
High speed for manufacturing standard paper plates: 120–200 Pcs/min for four stations.
Equipped with photoelectric detection device for automatic fault alarm, making production safer and trouble-free.
Servo drive provides accurate positioning and high forming precision.
Vacuum pump for paper feeding, lower energy consumption and power saving.
Integrated machine design. Compared with two sets of 600Y models, it greatly saves workshop floor space.
Sample Made From Machine
Main Technical Parameters
Paper plate specifications | 5.5-10 inches |
|---|---|
Paper weight | 150-600 grams per square meter |
paper materials | Base paper, white board paper, white cardboard, aluminum foil, or others |
production speed | Dual-station, 120-200 pieces/minute |
Power requirements | 380V 50-60HZ |
rated power | 25KW |
Actual Power | 12KW |
machine weight | 4000kg |
Overall dimensions | 2800×2060×2060mm |
Requirements for supporting air source | Working pressure: 0.6 MPa, working air volume: 0.8 cubic meters per minute |
Other remarks | customizable |
Main technical parameters of the oil cylinder | ML-80-150-10T-X |

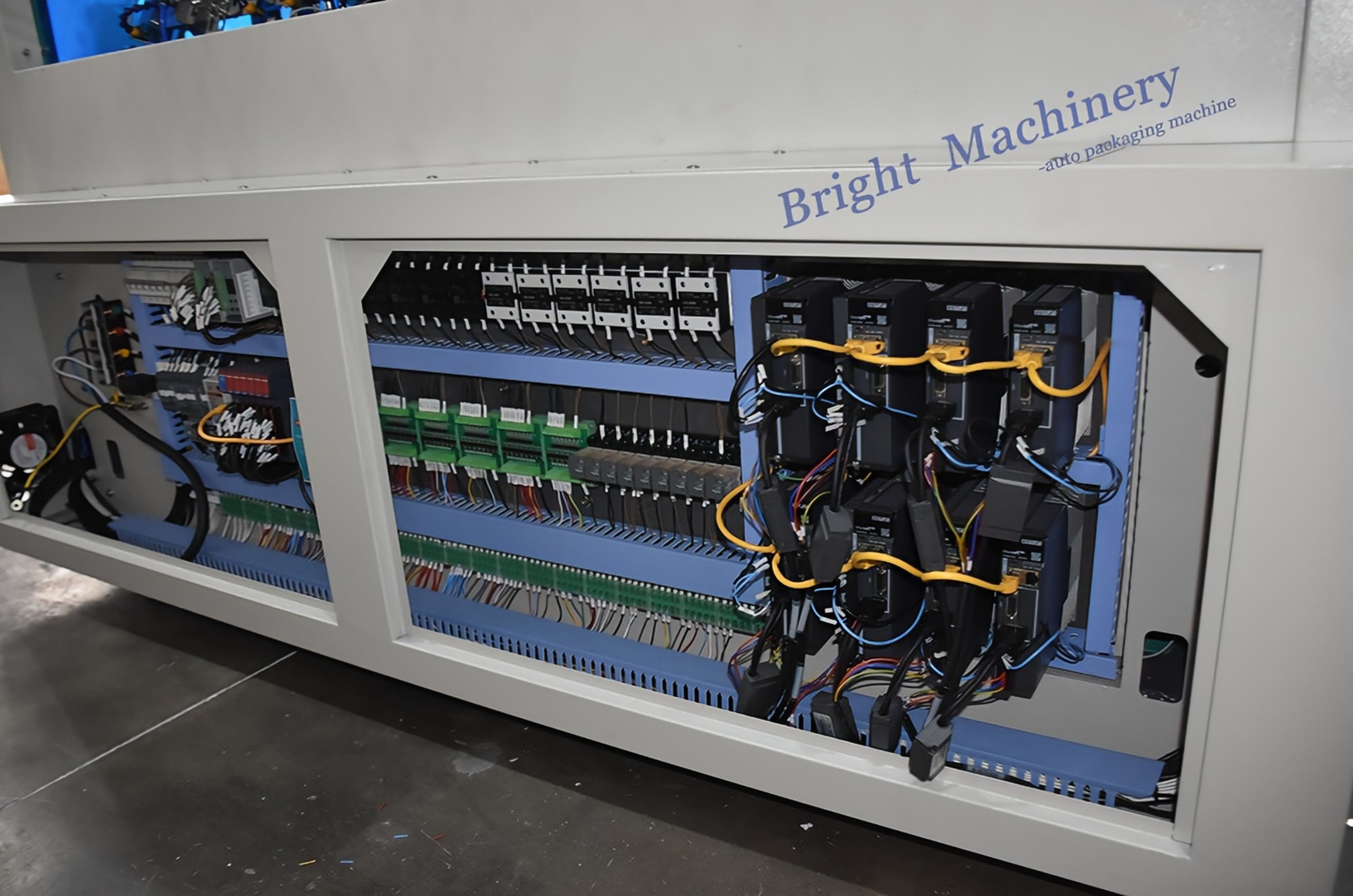

Electrical Configuration
NO | Accessories | Model | Quantity | Supplier |
|---|---|---|---|---|
1 | 7-inch touch screen | 1070N | 2 | Fanyi |
2 | Bus motion controller | New 8-axis bus controller | 1 | Trio |
3 | Input extension module | Input at 16:00 | 3 | Trio |
4 | Output expansion module | 16 point output | 3 | Trio |
5 | 400W servo driver | ED5E servo driver ED5E-04AEA | 4 | Estun |
6 | 400W servo motor | EM5E servo motor EM5E-04ATA221 | 4 | Estun |
7 | 750W servo driver | ED5E servo driver ED5E-08AEA | 4 | Estun |
8 | 750W servo motor | EM5E servo motor EM5E-08ATA221 | 4 | Estun |
9 | 400W servo motor power cable, length 3 meters | 400W servo power cable, 3-8 meters | 4 | Estun |
10 | 400W servo encoder cable, length 3 meters | 400W servo encoder cable, 3-8 meters | 4 | Estun |
11 | 750W servo power cable, length 3 meters | 750W servo power cable, 3-8 meters | 4 | Estun |
12 | 750W servo encoder cable, length 3 meters | 750W servo encoder cable, 3-8 meters | 4 | Estun |
13 | EC bus network cable | EC bus network cable | 9 | Yongding |
14 | Temperature control module | 4 routes | 2 | Panasonic |
15 | reducer | 750W,1:20 | 2 | Gurr |
16 | reducer | 400W,1:4 | 2 | Gurr |
17 | circuit breaker | 3P63A | 1 | Schneider |
18 | circuit breaker | 3P16A | 1 | Schneider |
19 | circuit breaker | 1P32A | 4 | Schneider |
20 | circuit breaker | 1P16A | 3 | Schneider |
21 | AC contactor | 3810 | 1 | Schneider |
22 | AC contactor | 1210 | 1 | Schneider |
23 | AC contactor | 2510 | 1 | Schneider |
24 | Thermal overload | 23-32A | 1 | Schneider |
25 | Thermal overload | 2.5-4A | 2 | Schneider |
26 | solid state relay | 40DA | 8 | Zhejiang Taiquan |
27 | solid state relay | 25DD | 6 | Zhejiang Taiquan |
28 | Solid-state radiato | Solid-state radiato | 14 | Zhejiang Taiquan |
29 | Switch-mode power supply | 240W | 1 | Zhejiang Mingwei |
30 | phase sequence protector | 1 | Shanghai Zhongdun | |
31 | intermediate relay | 24V 5A | 9 | Schneider |
32 | red button | Single normally open contact | 2 | Schneider |
33 | green button | Single normally open contact | 2 | Schneider |
34 | Second gear shift lever | Single normally open contact | 4 | Schneider |
35 | Emergency stop button | Single normally open contact | 4 | Schneider |
36 | indicator light | AC220V | 4 | Schneider |
37 | warning light | DC24V | 1 | Helijia |
38 | yellow button | Single normally open contact | 4 | Schneider |
39 | Type K thermocouple | K-type spring | 8 | |
40 | aviation connector | 26 cores | 2 | |
41 | photoelectric switch | M18 | 20 | Shanghai Xiangchuan |
42 | proximity switch | M18 | 6 | Yangming, Taiwan |
43 | plywood | 1 | ||
44 | Eight-channel amplifier board | 5 | ||
45 | Consumable cables, busbar terminals | 1 |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.

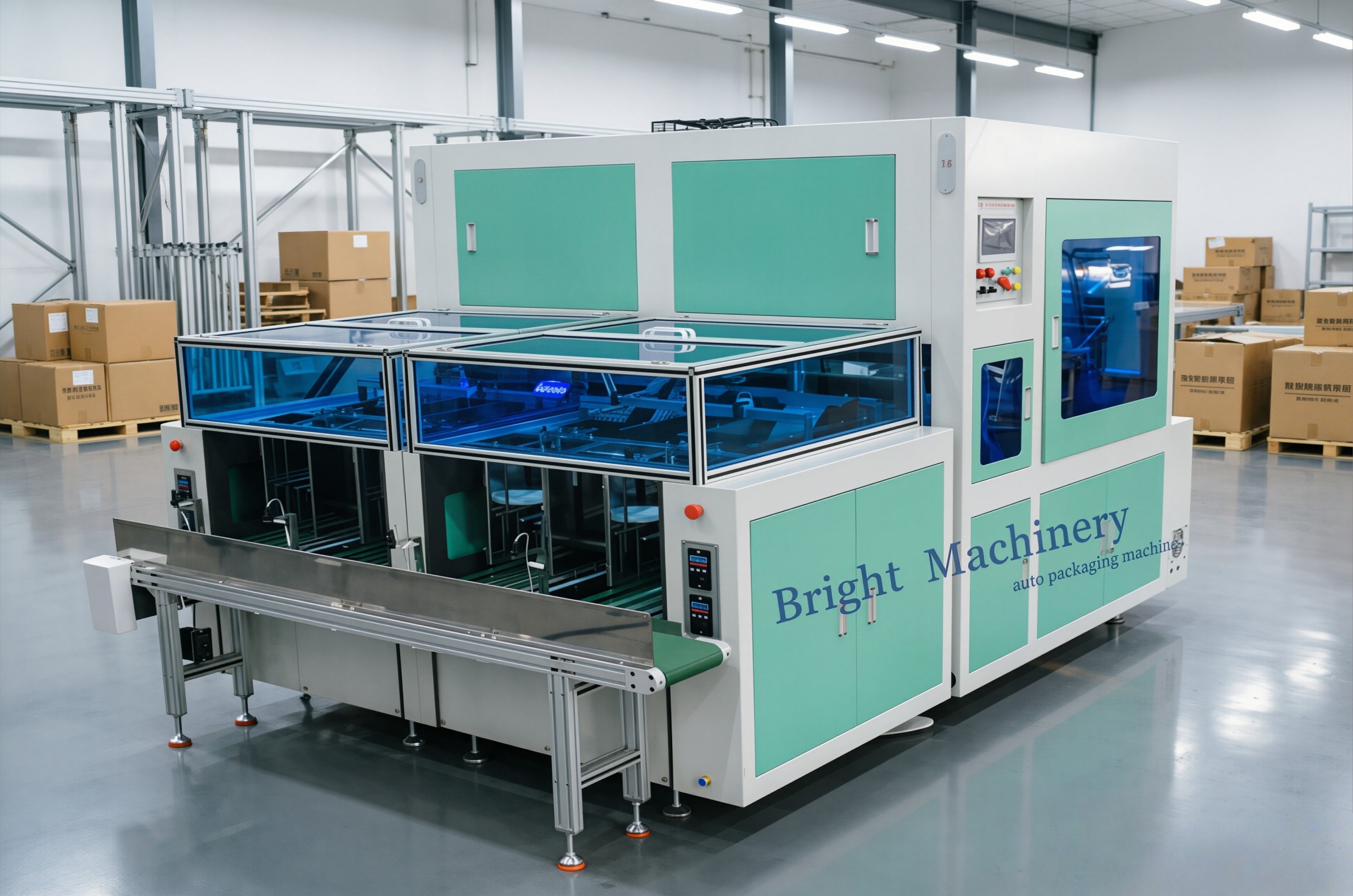

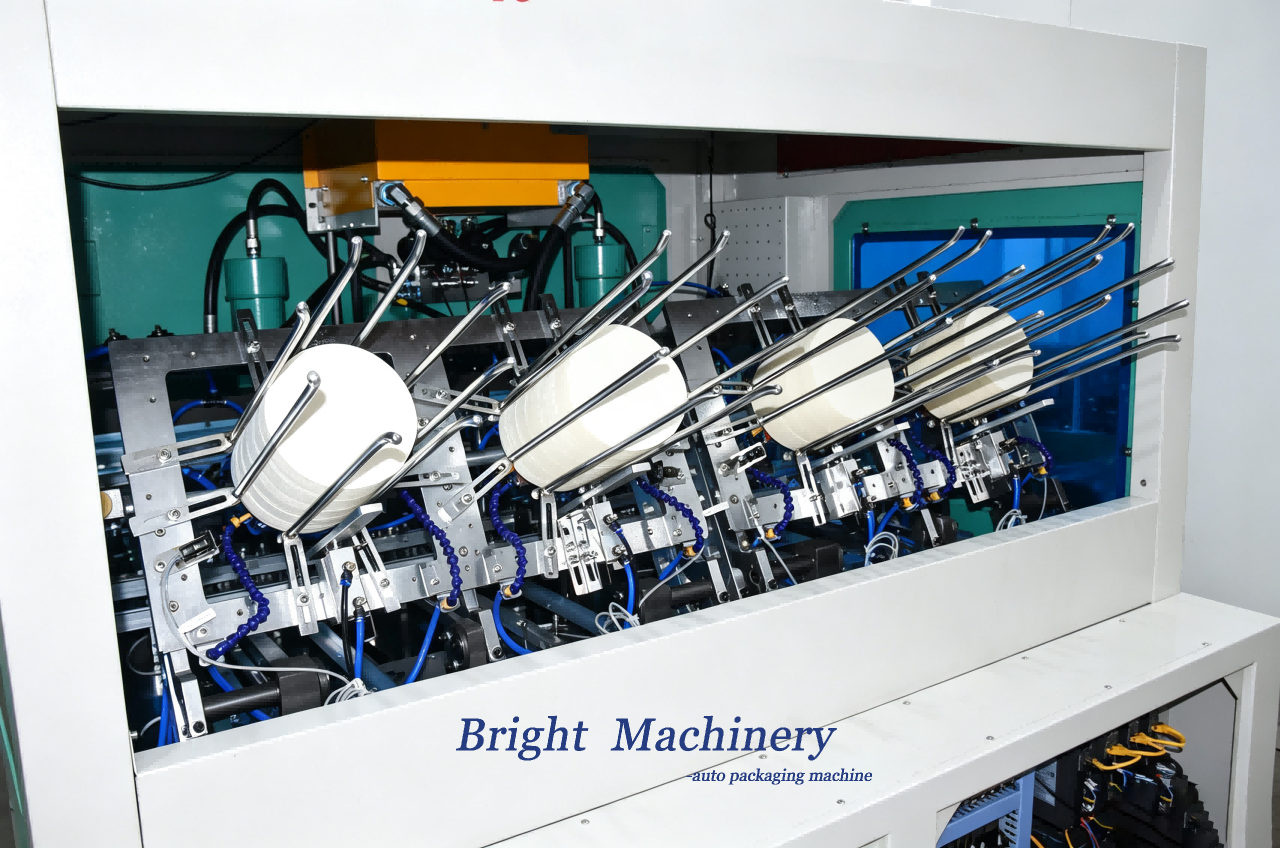

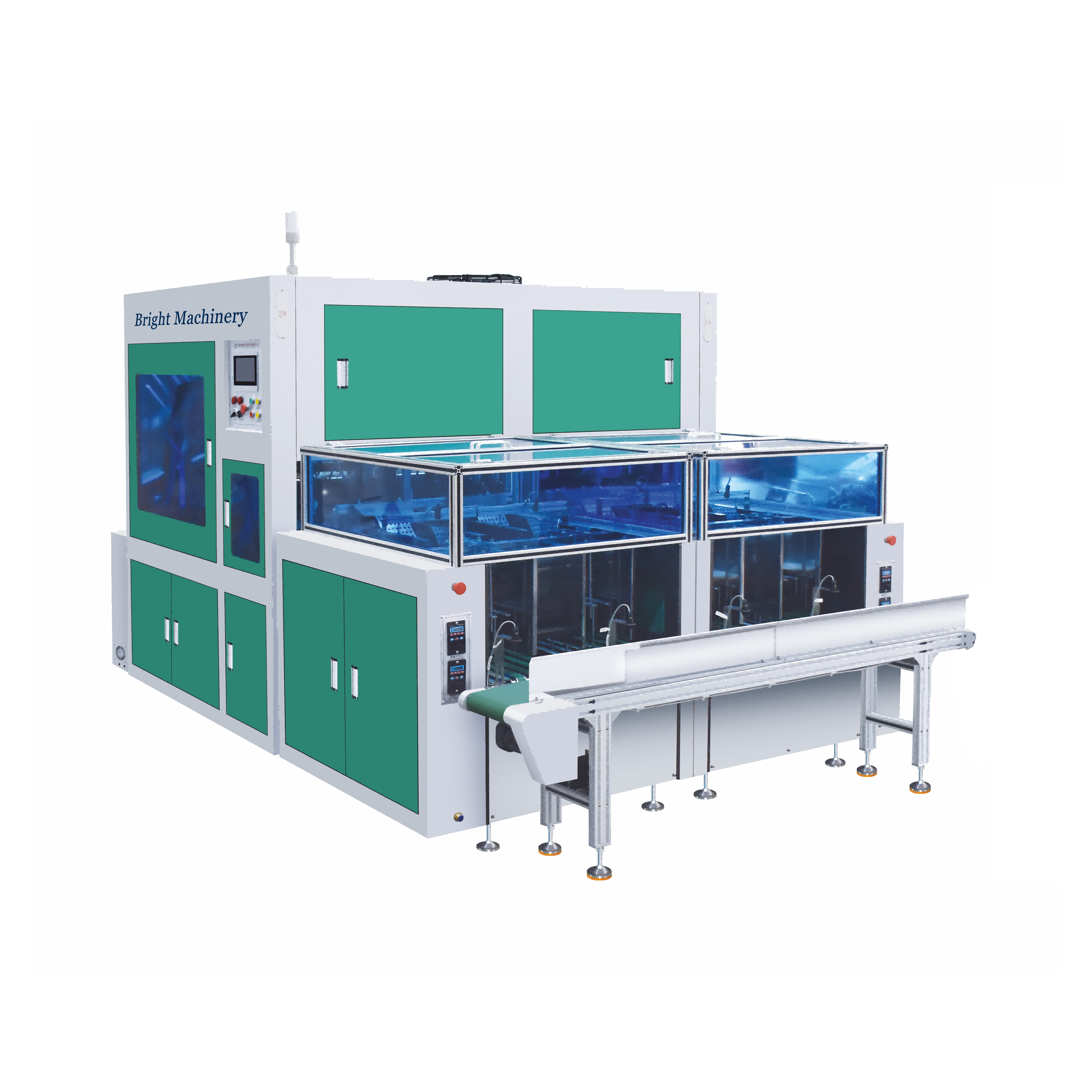

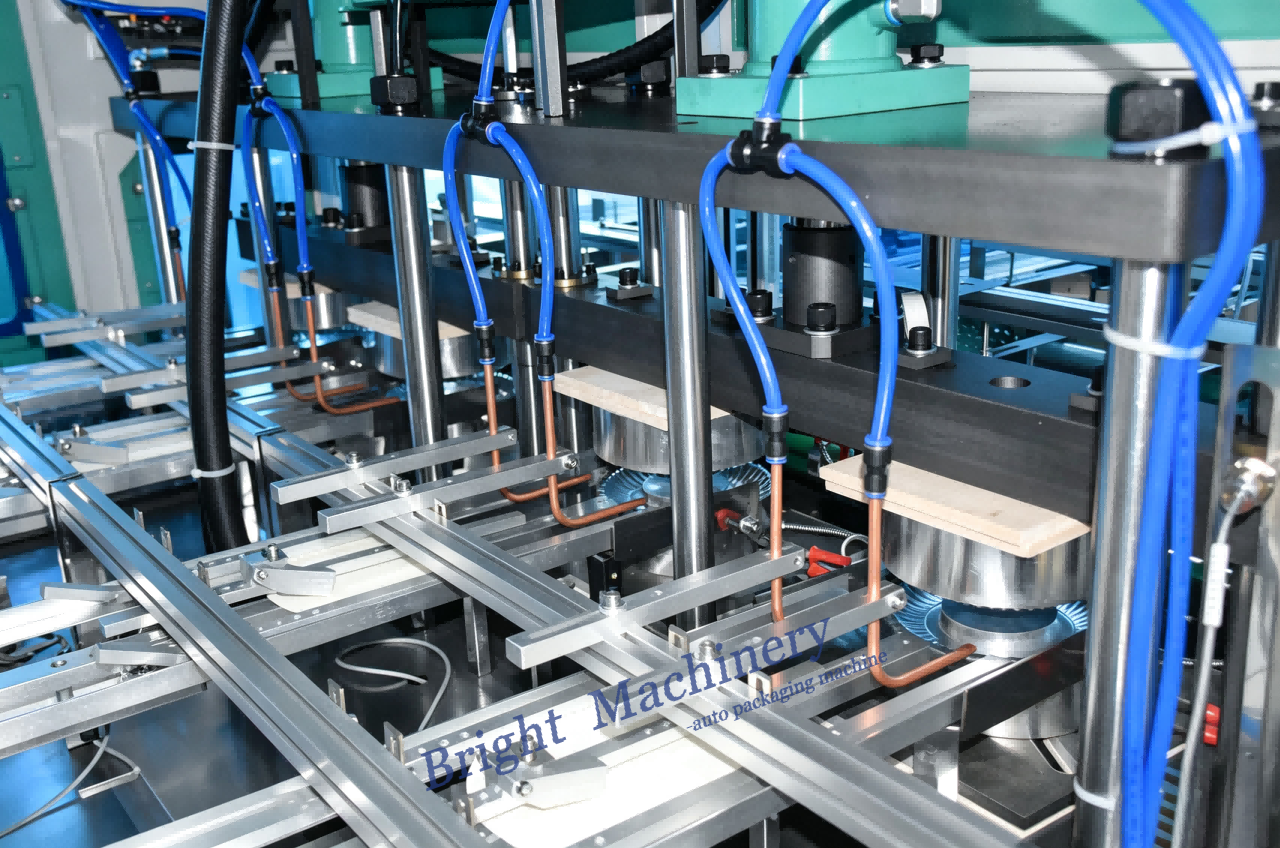

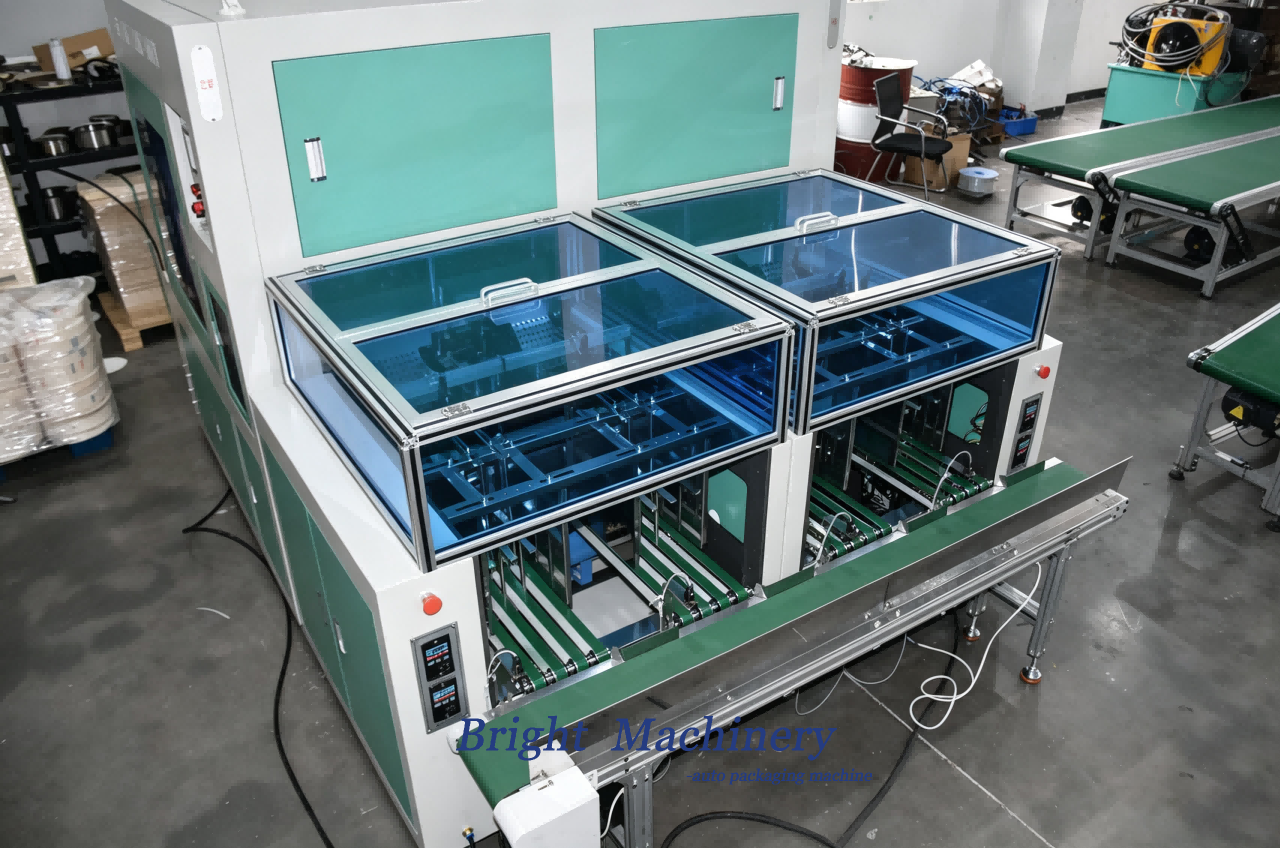

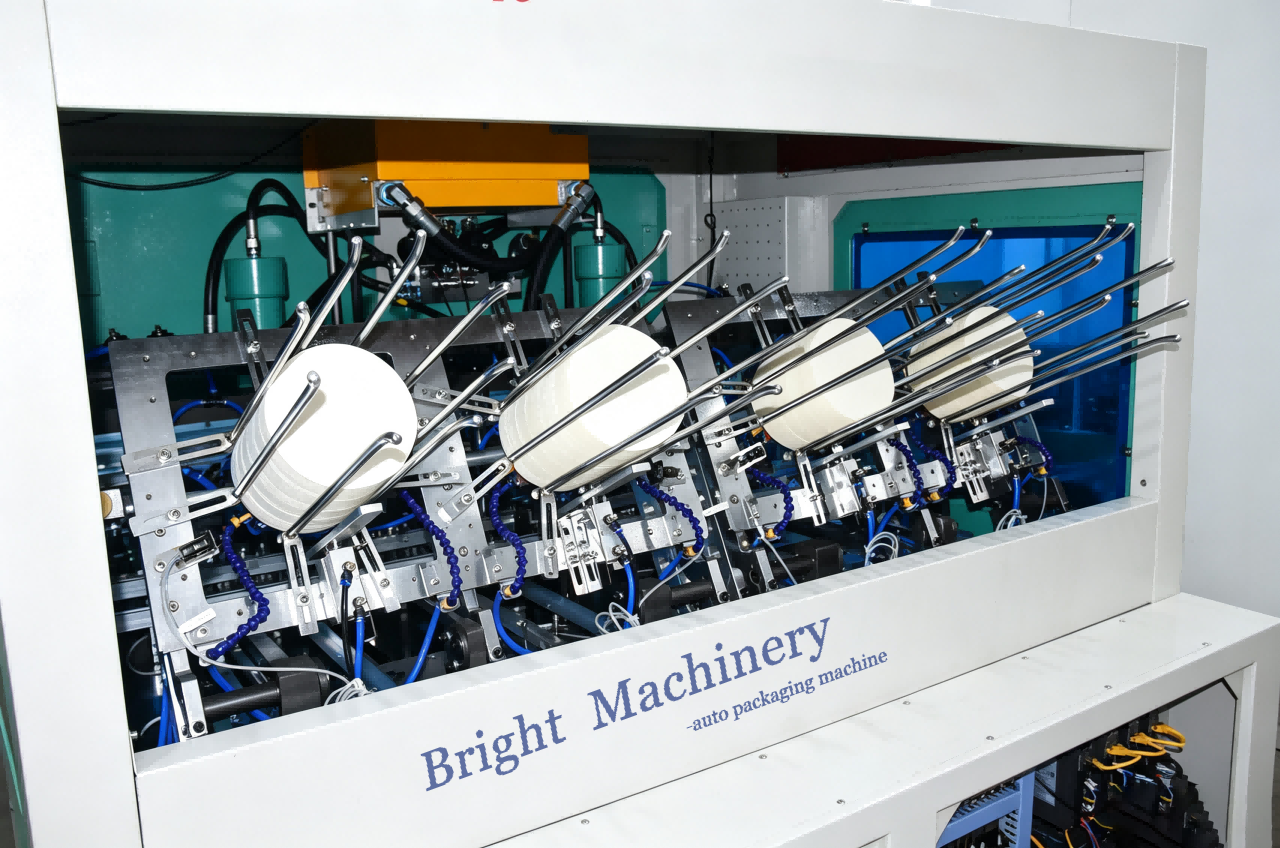

Machine Picture for Reference:
