Our ML 400 Medium Speed Pneumatic Double Station Paper Plate Forming Machine can making different specifications of round, square and other shaped paper plates. Compared with the traditional automatic paper plate machine, it recombines the principle of pneumatic and mechanical combination, with higher production speed, more stable performance and safer operation. More convenient maintenance and more humane structural design and other advantages.Our ML 400 medium speed pneumatic double station paper plate forming machine adopts high efficiency pressurized cylinder, the maximum pressure can reach 5T, it has the advantages of faster and more environmental protection compared with the oil cylinder.

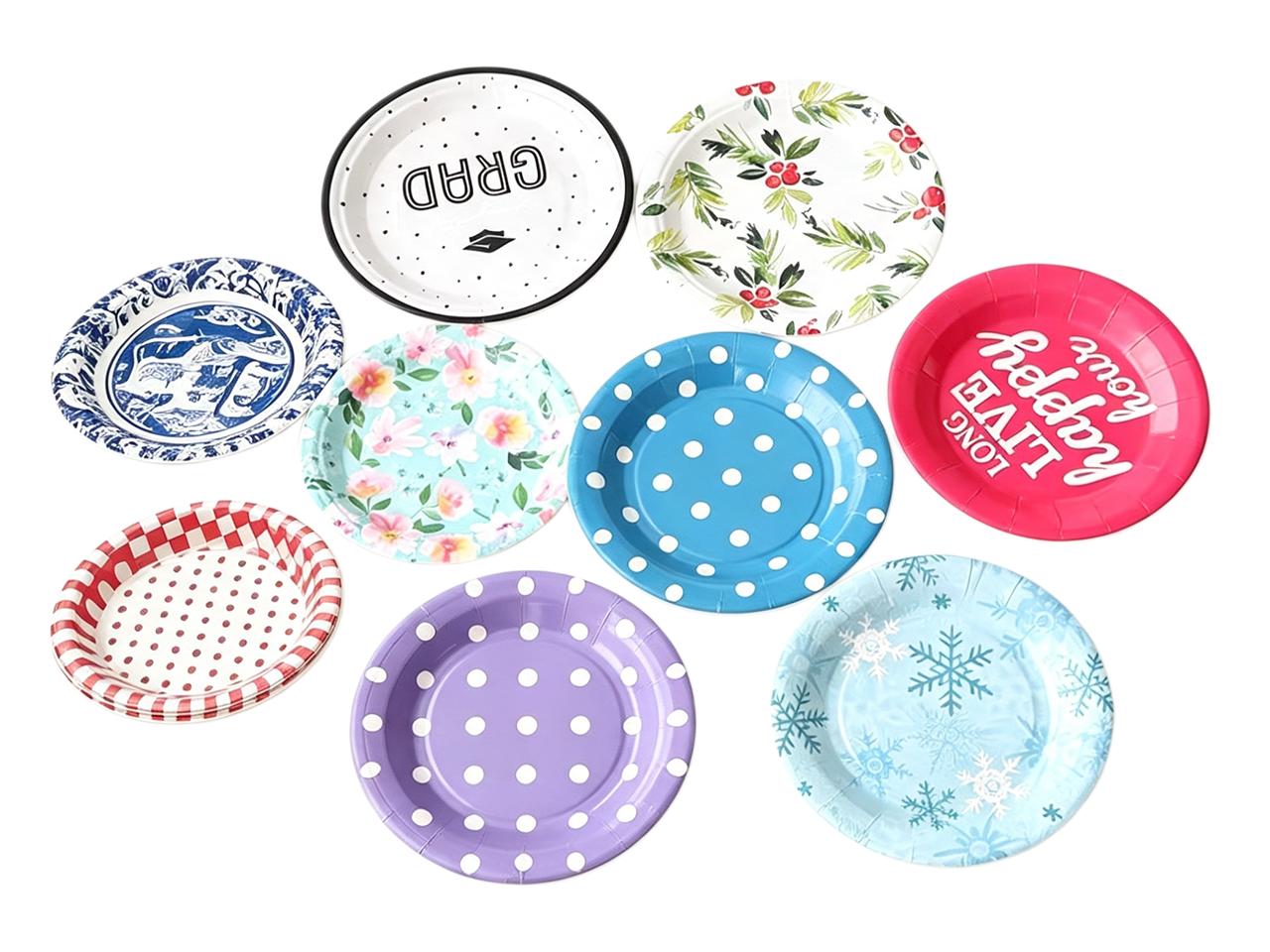

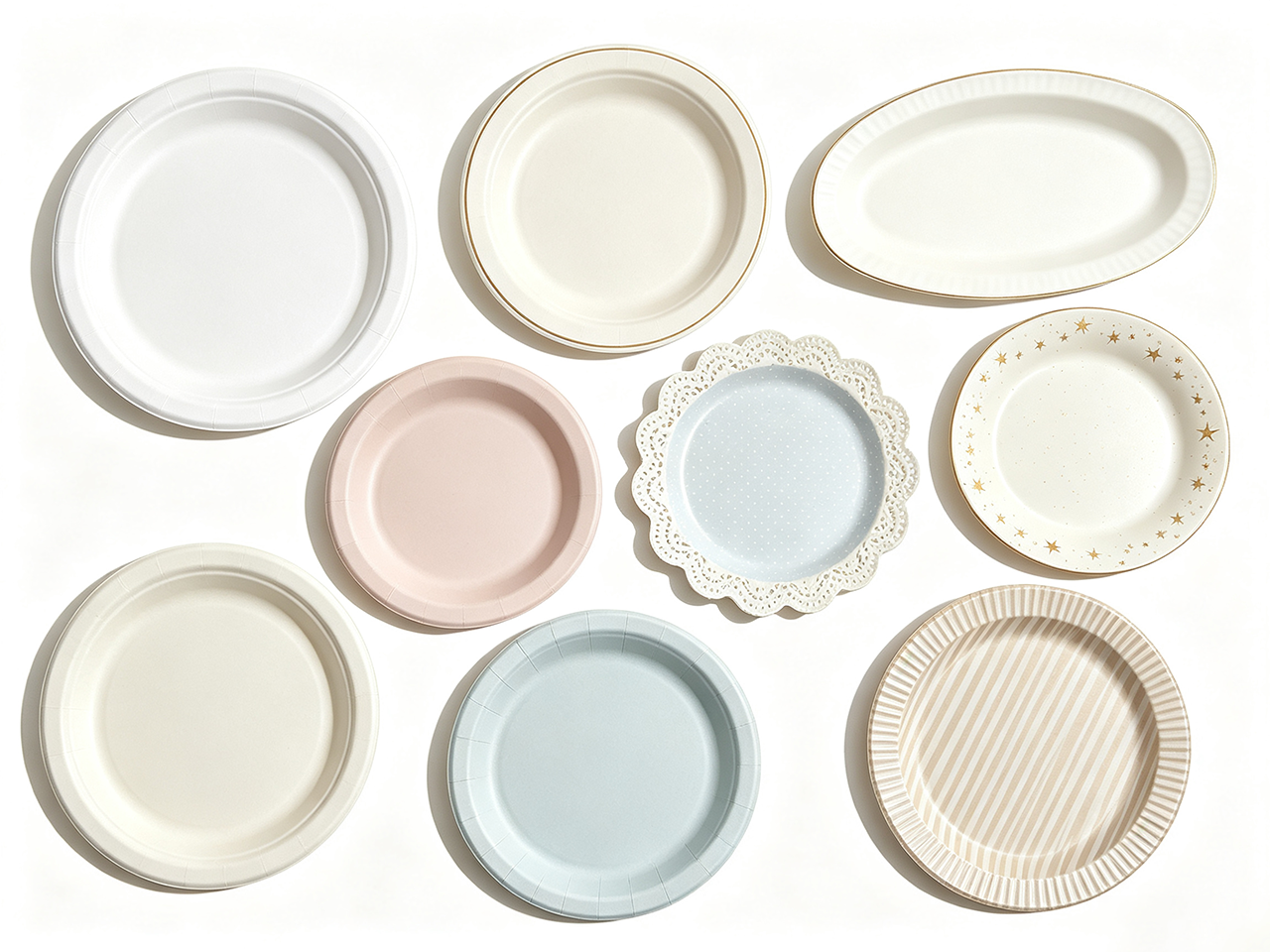

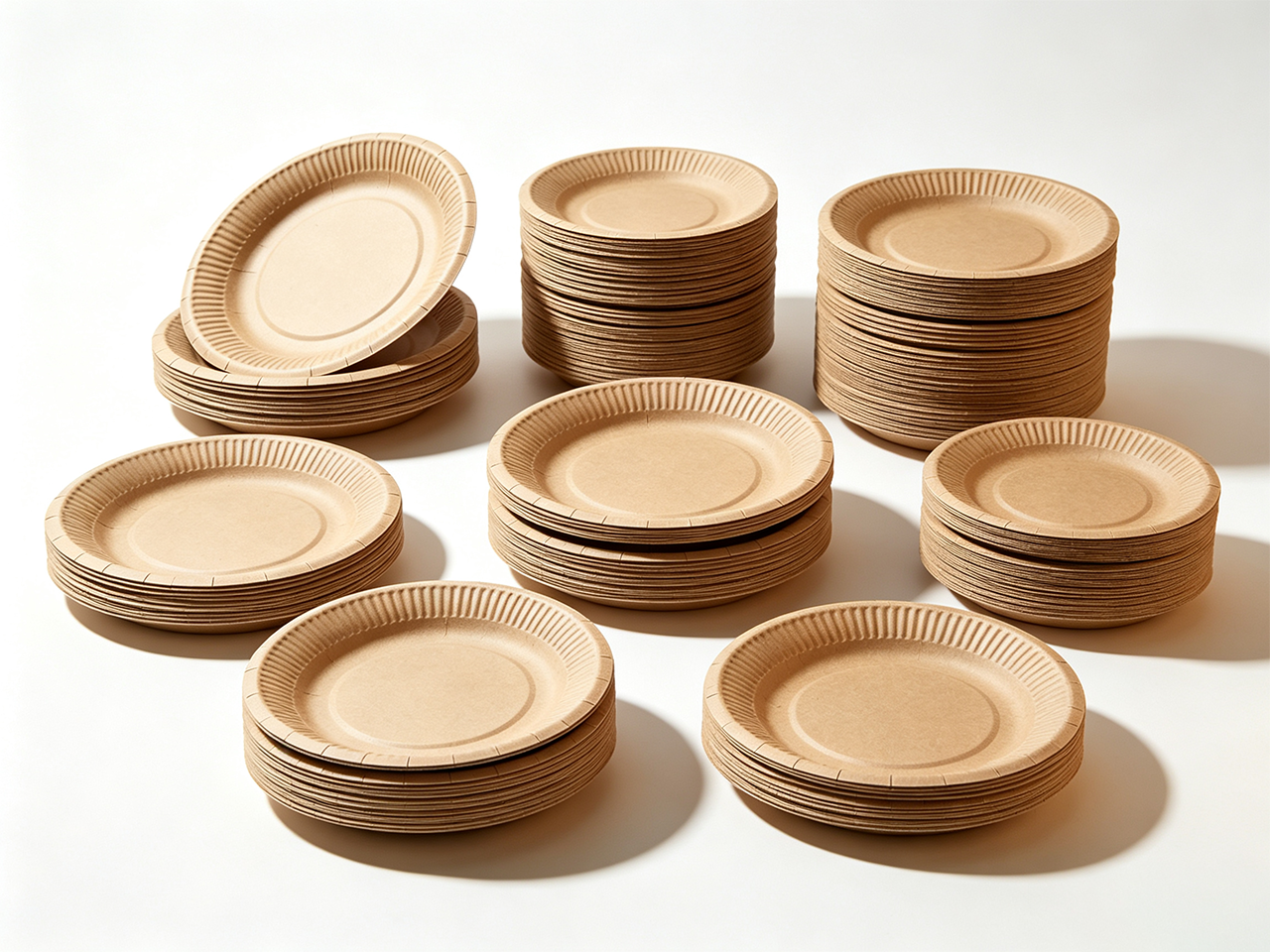

Sample Made From Machine
Main Technical Parameters
Model | ML400 |
|---|---|
Paper Plate Size | 4-11 inches |
Capacity | 50-70Pcs/min |
Power Requirements | 220V 50HZ |
Total Power | 3KW |
Weight | 500Kg |
Specifications | 1300×1400×1600mm |
Raw Material | 100-800g/m² (original paper, white paperboard, white cardboard, aluminum foil paper or others) |
Air Source | Working pressure 0.8Mpa Working Air volume 1.5m³/min |
Electrical Configuration
NO. | Spare Parts | Supplier |
|---|---|---|
1 | Relay | Schneider |
3 | Temperature Controller | Shanghai Yatai |
4 | Time Relay | Omron |
5 | Counter | Shanghai Yatai |
6 | Stainless Steel Heating Pipe | Jiangsu Rong Dali |
8 | Counter Switch | Shanghai Yijia |
9 | Normally Open Photoelectric | Japan Omron |
10 | Solenoid Valve | Taiwan Airtac |
11 | Bearing | Harbin |
12 | Temperature Sensor | WHENZHOU CHIN GROUP |
13 | Normally Closed Photoelectric | Japan Omron |
14 | AC Contactor | Chint |
15 | Thermal Relay | Chint |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.

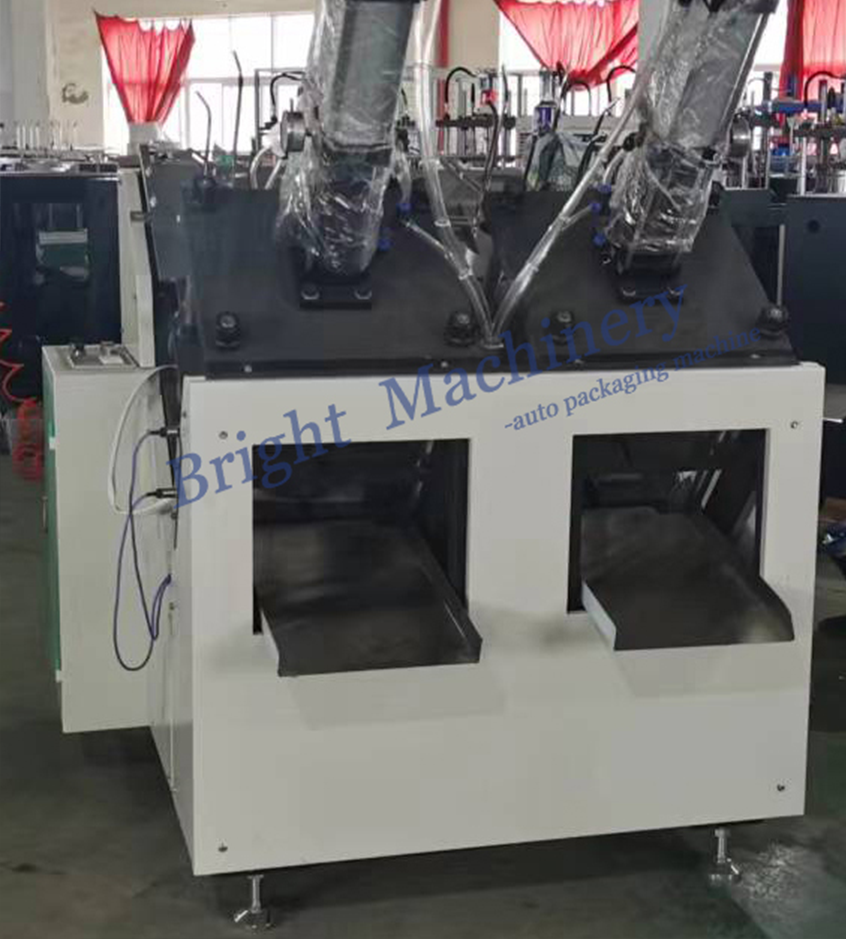

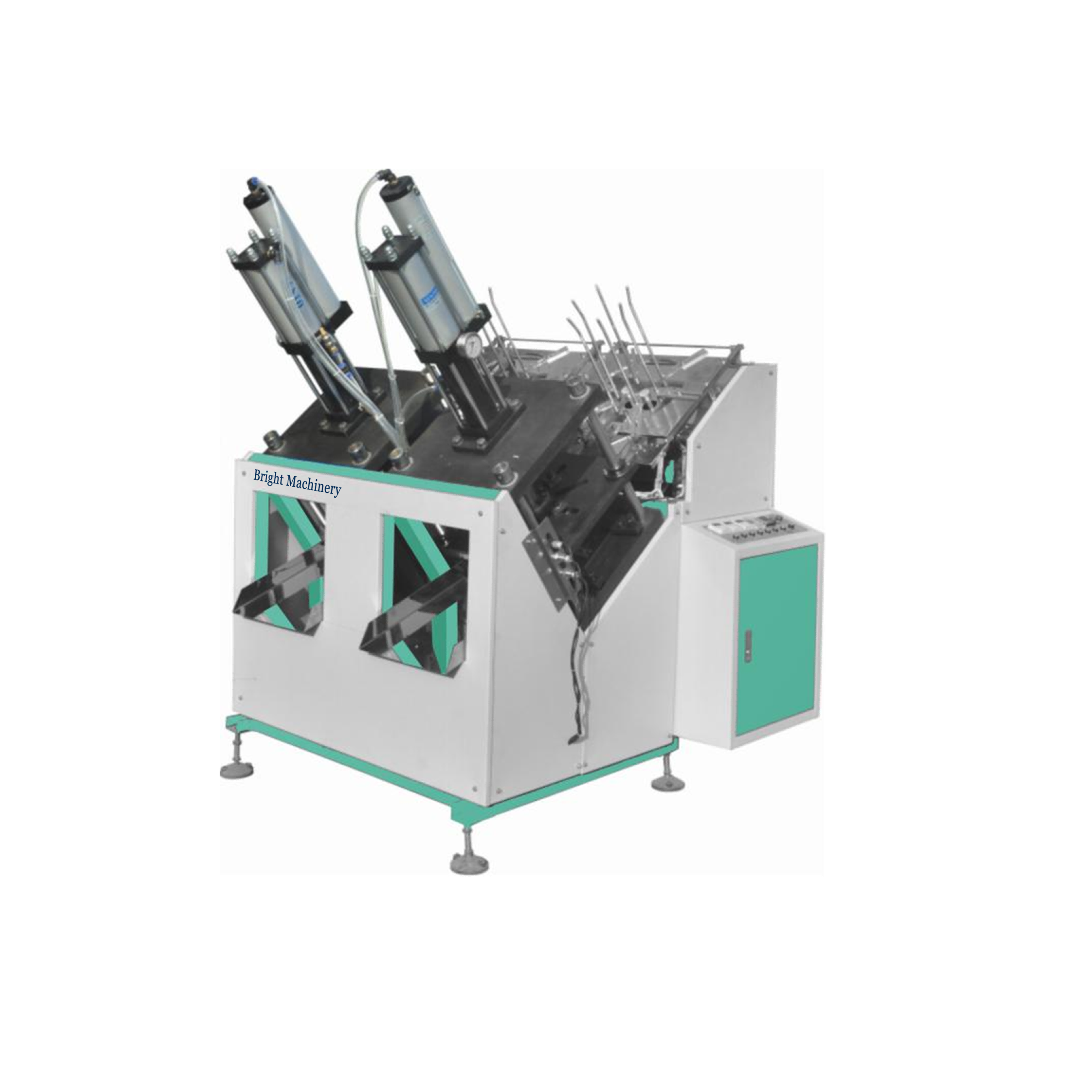

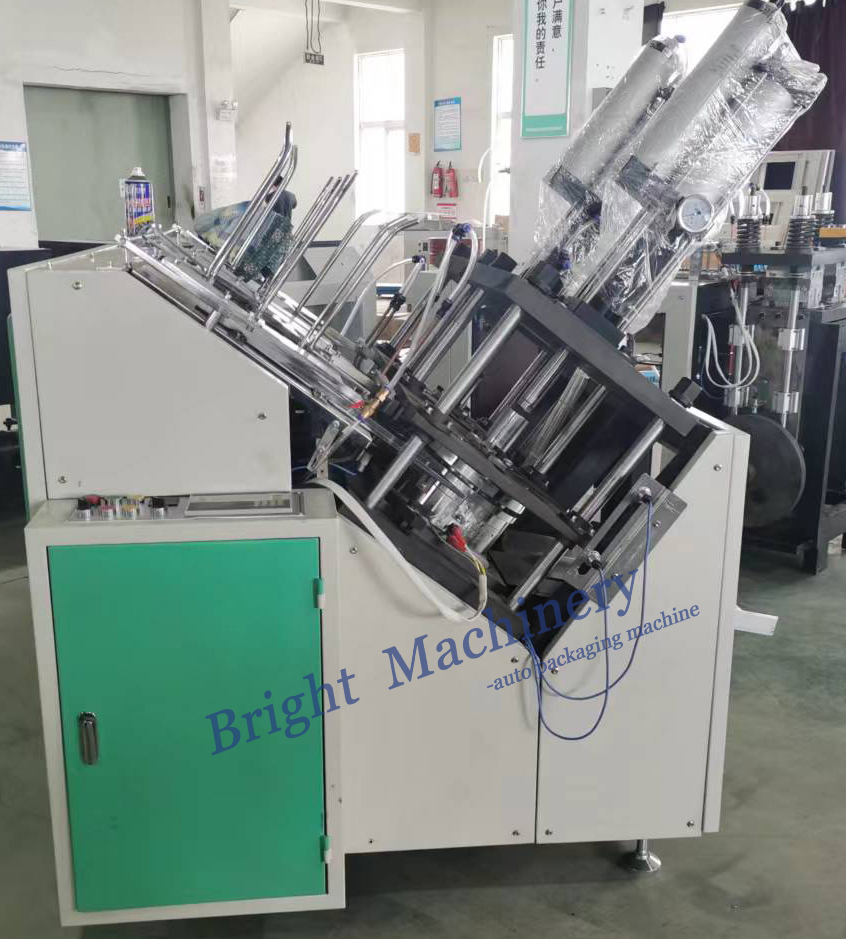

Machine Picture for Reference:
