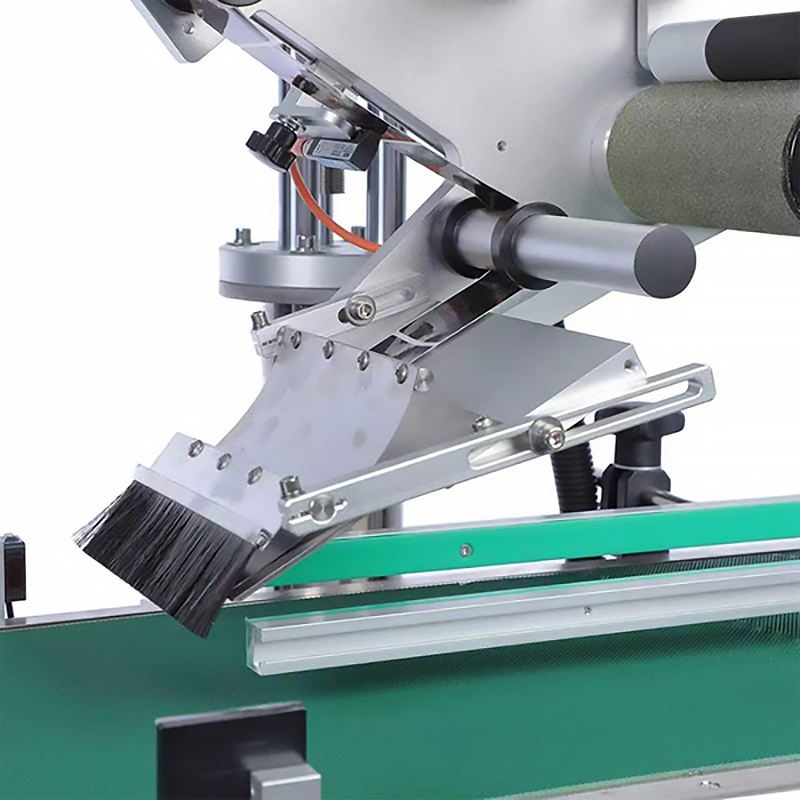

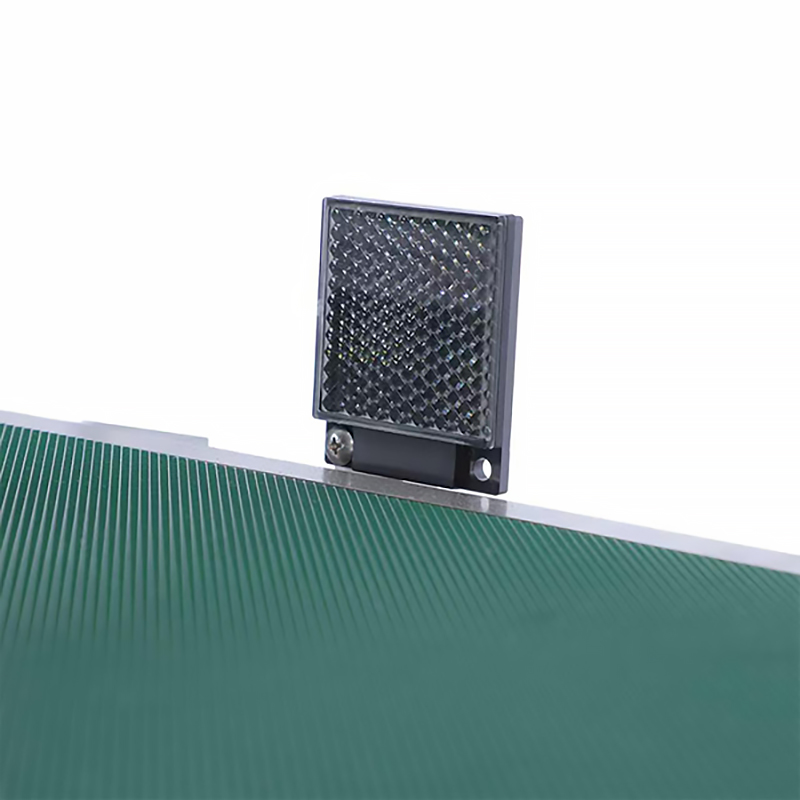

When products pass through the detection area, the photoelectric sensor detects materials and sends labeling signals to the PLC. The traction motor then dispenses labels for attachment, followed by a pressing brush or sponge roller to flatten labels without air bubbles, automatically outputting finished labeled products. Stable in operation and high in labeling accuracy, this machine suits food, daily chemical and electronics industries. It labels flat workpieces including paper cards, bags, cartons and paper trays. Easy to operate and compatible with mass standardized production lines, it effectively cuts labor costs and improves packaging efficiency.
Sample Made From Machine
Main Technical Parameters
Labeling Speed | Approx. 0–80 P/min (subject to product and label dimensions) |
|---|---|
Labeling Accuracy | ±1 mm (excluding errors from products and labels) |
Applicable Product Size | Within L400*W300*H185 mm |
Applicable Label Range | Label length: 10–350 mm, liner width: 10–150 mm |
Max. Label Roll Capacity | Max. outer diameter ≤300 mm, inner diameter 76 mm |
Ambient Temperature & Humidity | 0–50°C / 15–85% RH |
Voltage Specification | AC220V, 50 Hz |
Dimensions & Weight | Overall size: L1.67 m × W0.9 m × H1.47 m, weight approx. 200 Kg |
Labeling Head & Adjustment Mechanism | Stainless steel & aluminum alloy |
Conveying Mechanism | Stainless steel & aluminum alloy |
Guiding Mechanism | Stainless steel & aluminum alloy |
Traction Mechanism | Diamond & aluminum alloy |
Electrical Cabinet Assembly | Stainless steel & aluminum alloy |
Electrical Configuration
Name | Brand |
|---|---|
PLC Programmable Logic Controller | Panasonic |
Label Sensor | SICK |

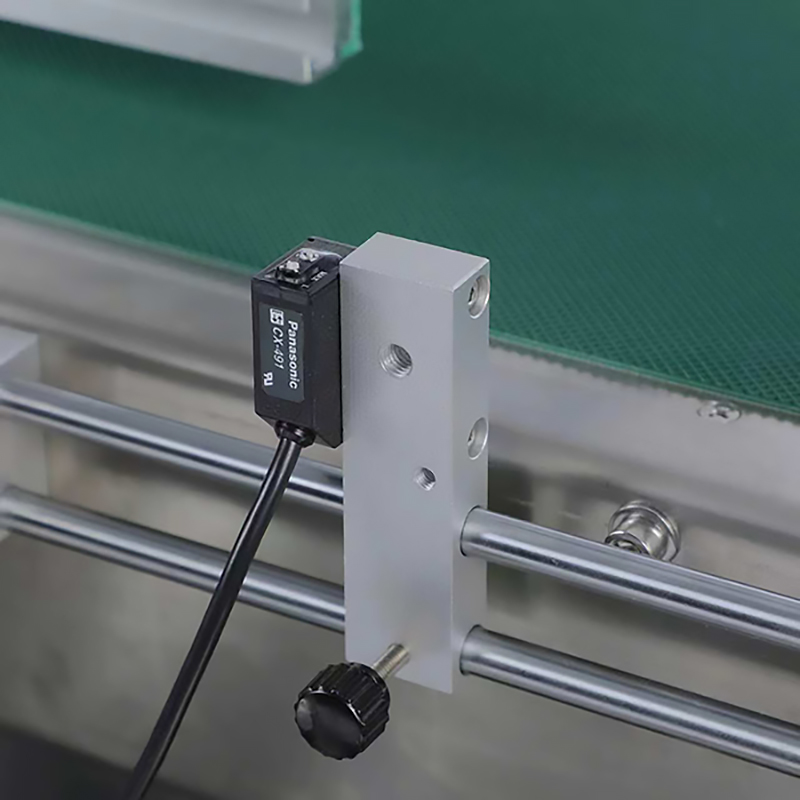

Product Sensor | Panasonic |
Label Head Traction Motor | Leadshine |
Human-Machine Interface (HMI) | WECON |
Conveying Motor | Chuanming |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.

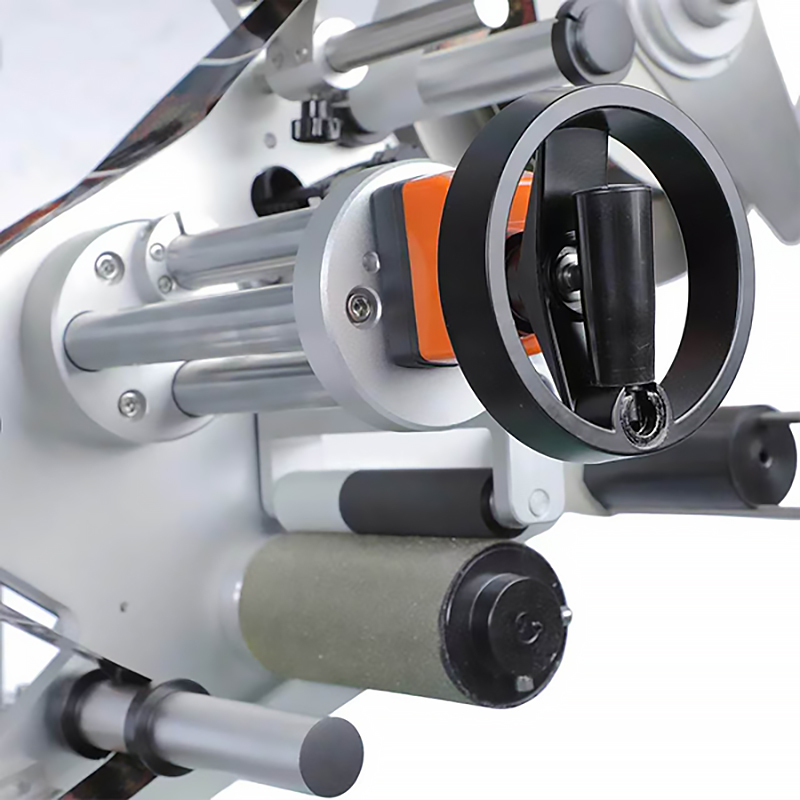

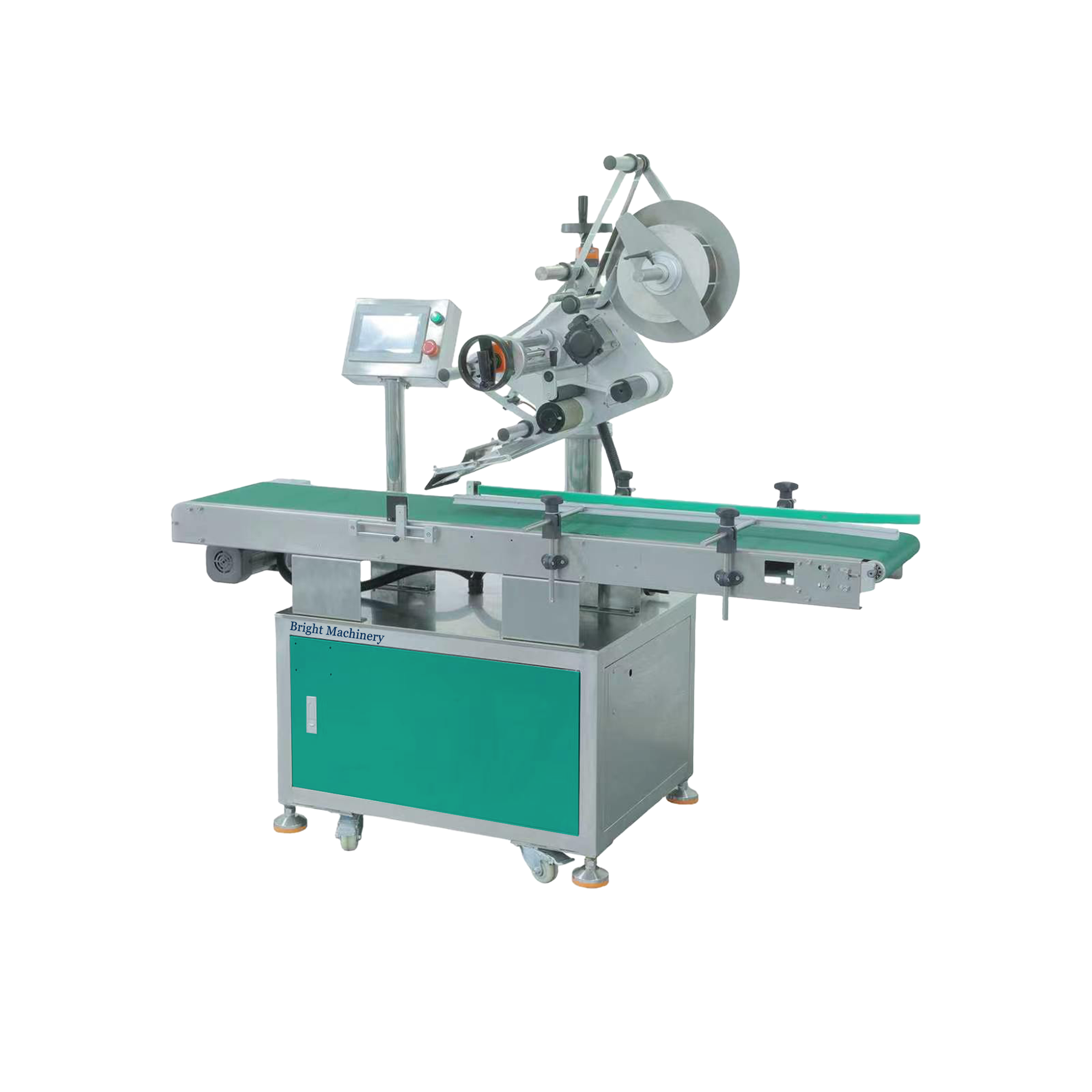

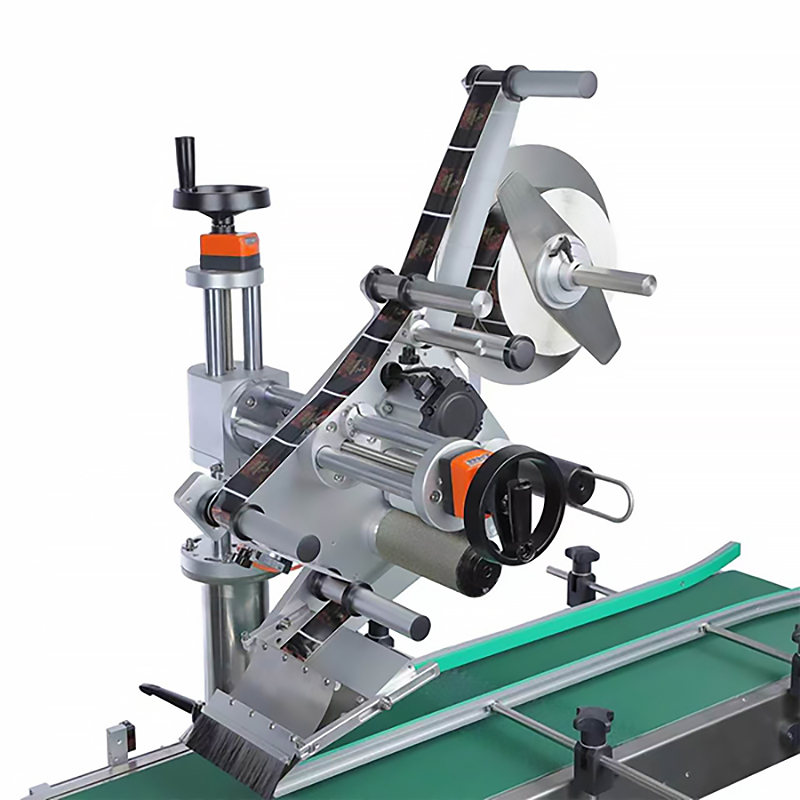

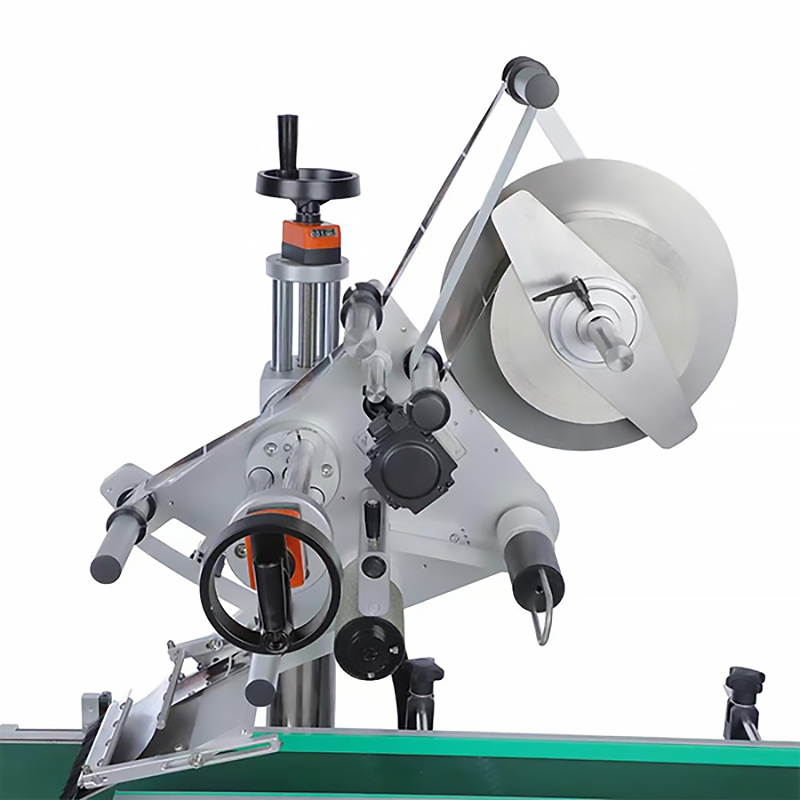

Machine Pic for Reference:
