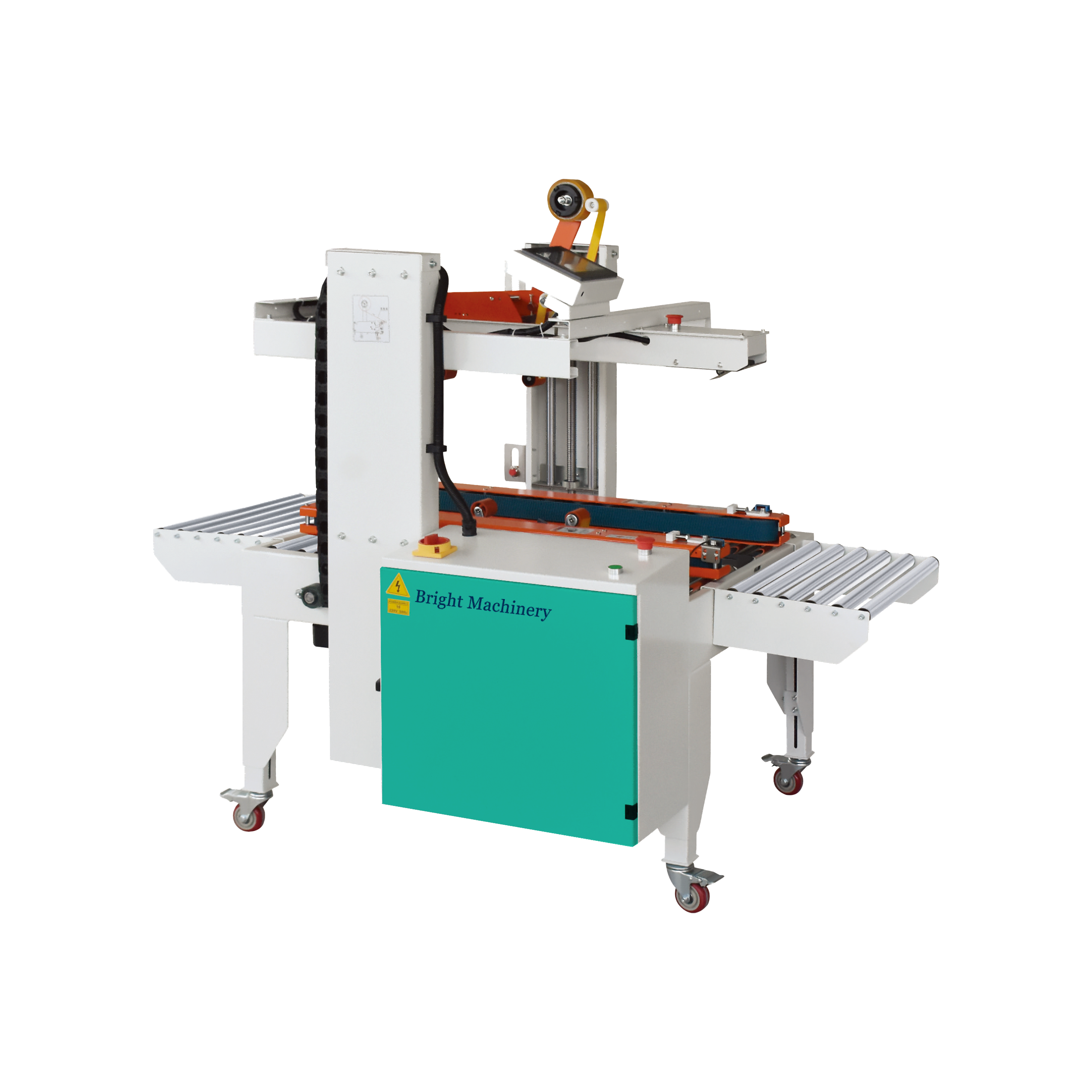

The carton tape sealing machine is an automatic packaging device specially designed for carton sealing operations. It adopts top and bottom tape sealing structure to complete box sealing quickly and evenly. With stable mechanical transmission and adjustable conveying speed, it is suitable for cartons of different sizes. The machine features simple operation, strong compatibility and wide adaptability, greatly improving packaging efficiency and reducing manual packaging costs. It is widely used in logistics, e-commerce, food, daily necessities and industrial packaging industries.
Sample Made From Machine
Main Technical Parameters
Model | ML-5050XE |
|---|---|
Voltage | 220V 50/60HZ |
Motor Power | 1740W |
Working Table Height | 570-750mm |
Applicable Carton | L130-700×W80-500×H90-500mm |
Applicable Tape | 36-48mm |
Tape Overlap | 50-67mm |
Roller Material | Stainless Steel Roller |
Sealing Dimension | L>130,500>W>80,500>H>90mm |
Overall Machine Dimension | L1840×W1210×H1190mm |
Net Weight | 280kg |

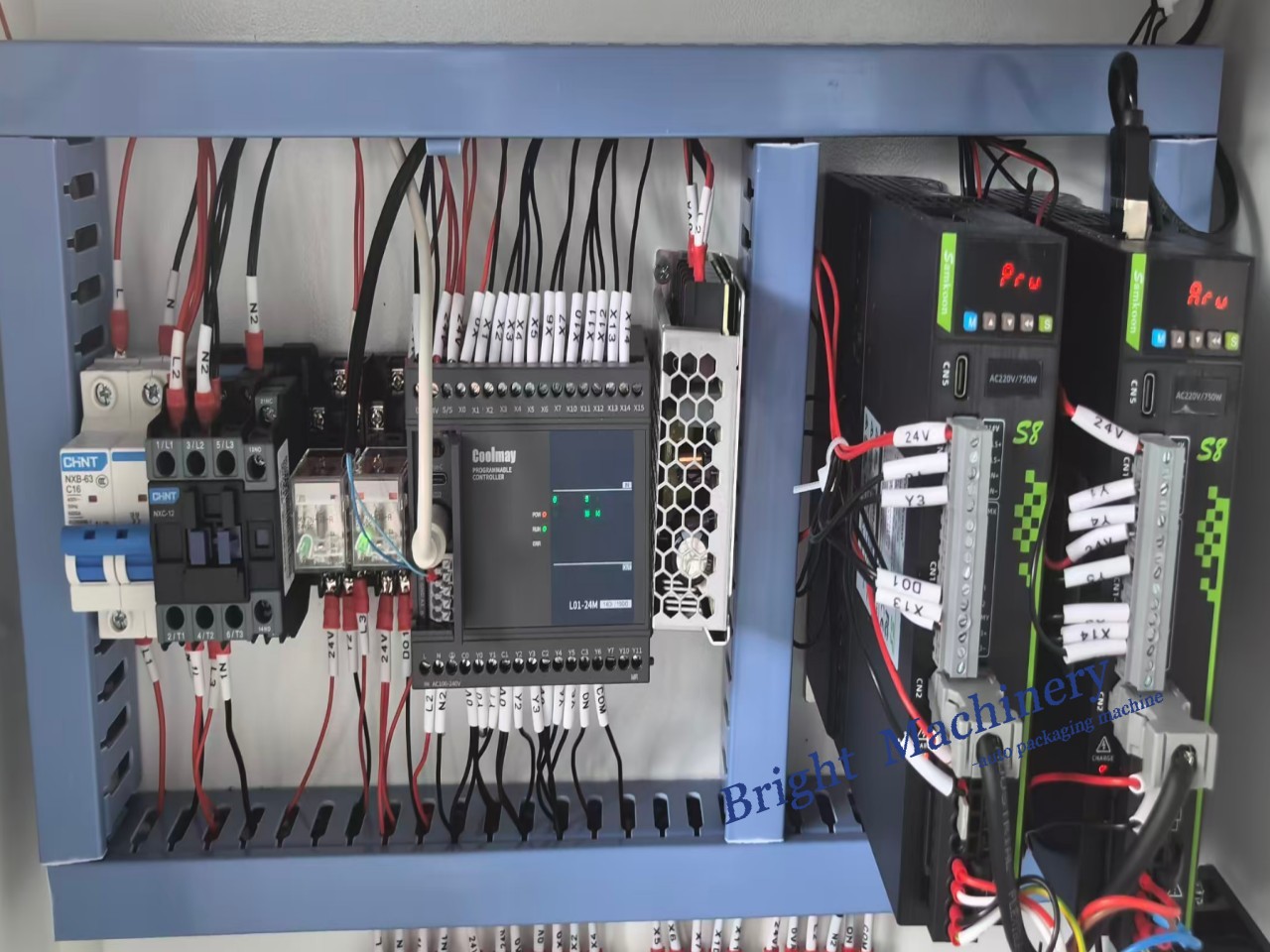

Electrical Configuration
Name | Brand |
|---|---|
Power Switch | Chint |
Circuit Breaker | Chint |
Fuse | Chint |
Intermediate Relay | Chint |
AC Contactor | Chint |
PLC (Programmable Logic Controller) | Inovance / Jemicon (select one) |
Limit Switch | Yongde / Chint (select one) |
Gear Reducer Motor | Libang / Taiming (select one) |

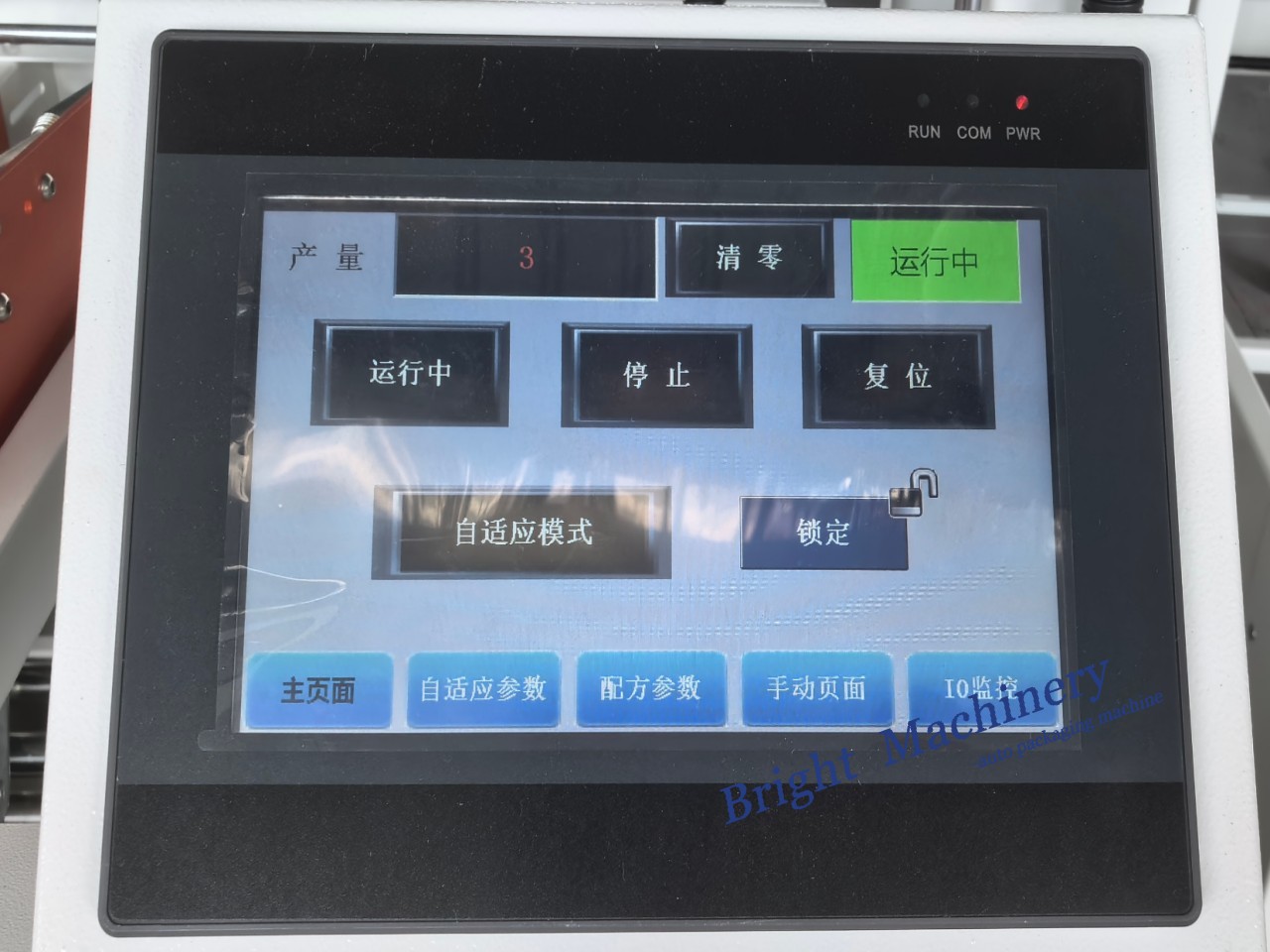

Touch Screen | Inovance / Gumei (select one) |
Servo Motor | Inovance / Jemicon (select one) |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.
