The standard model features leftward feeding, while corner and edge structures for rightward feeding operation can be customized. This equipment is compatible with cartons of multiple specifications simultaneously, and can automatically adjust width and height when switching carton sizes, with a standard tabletop height of 620 mm. Its tape attaching components are precise and robust, delivering smooth, stable operation and a long service life. In addition to standard regular models, non-standard customization is available for the machine, which fully completes the I-shaped sealing process of cartons. It is widely applicable to mass sealing and packaging scenarios for all types of cartons.

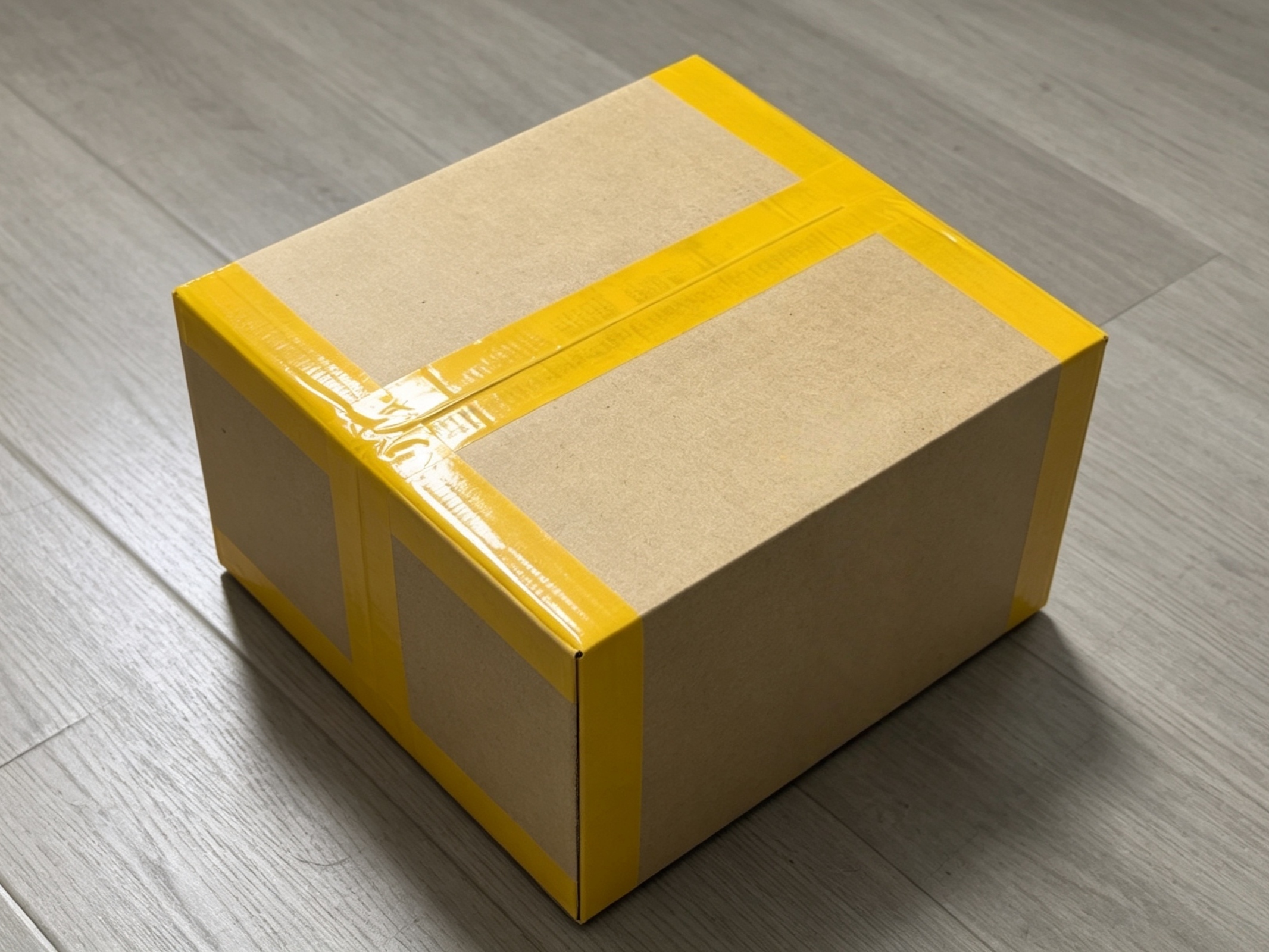

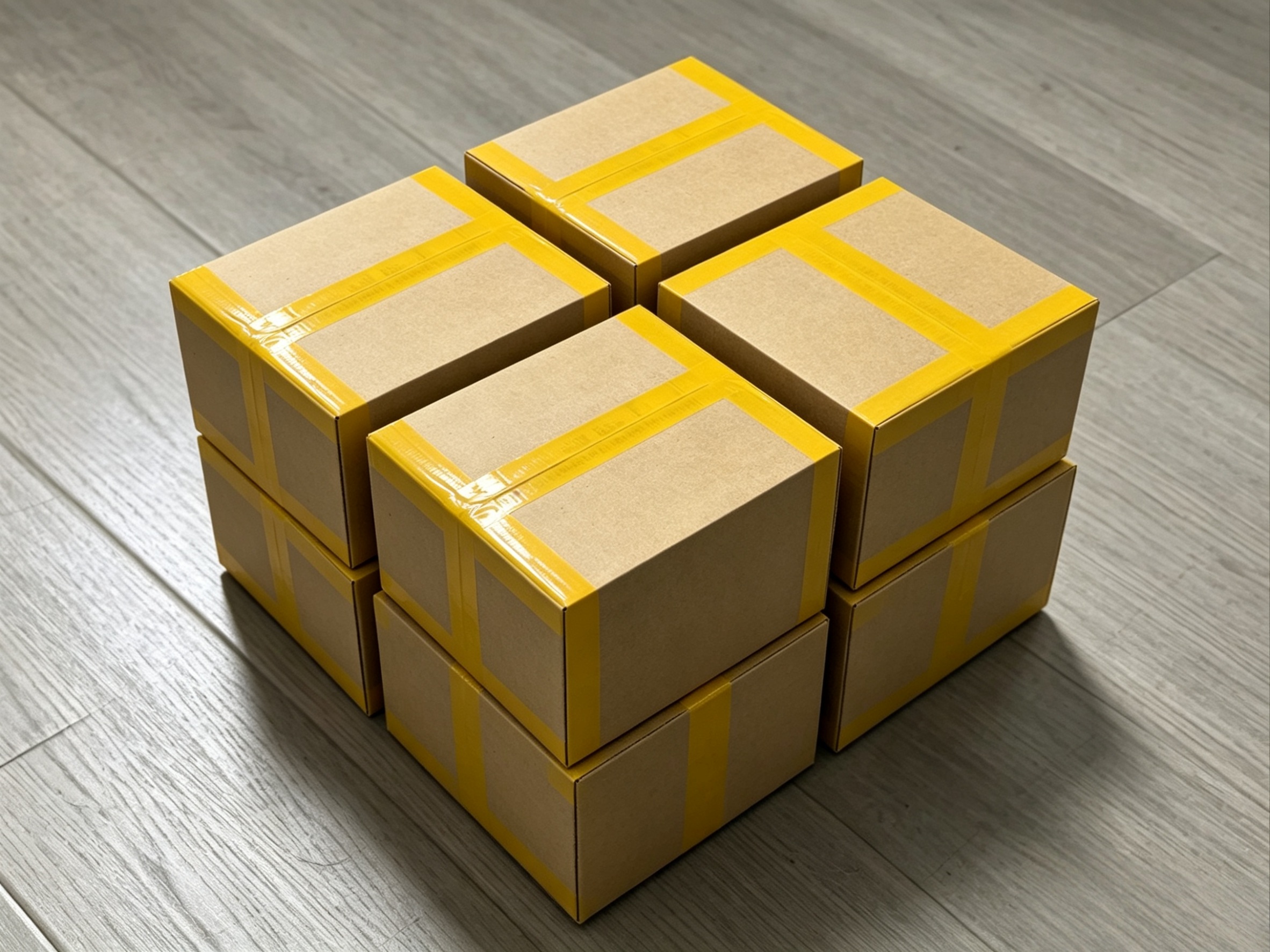

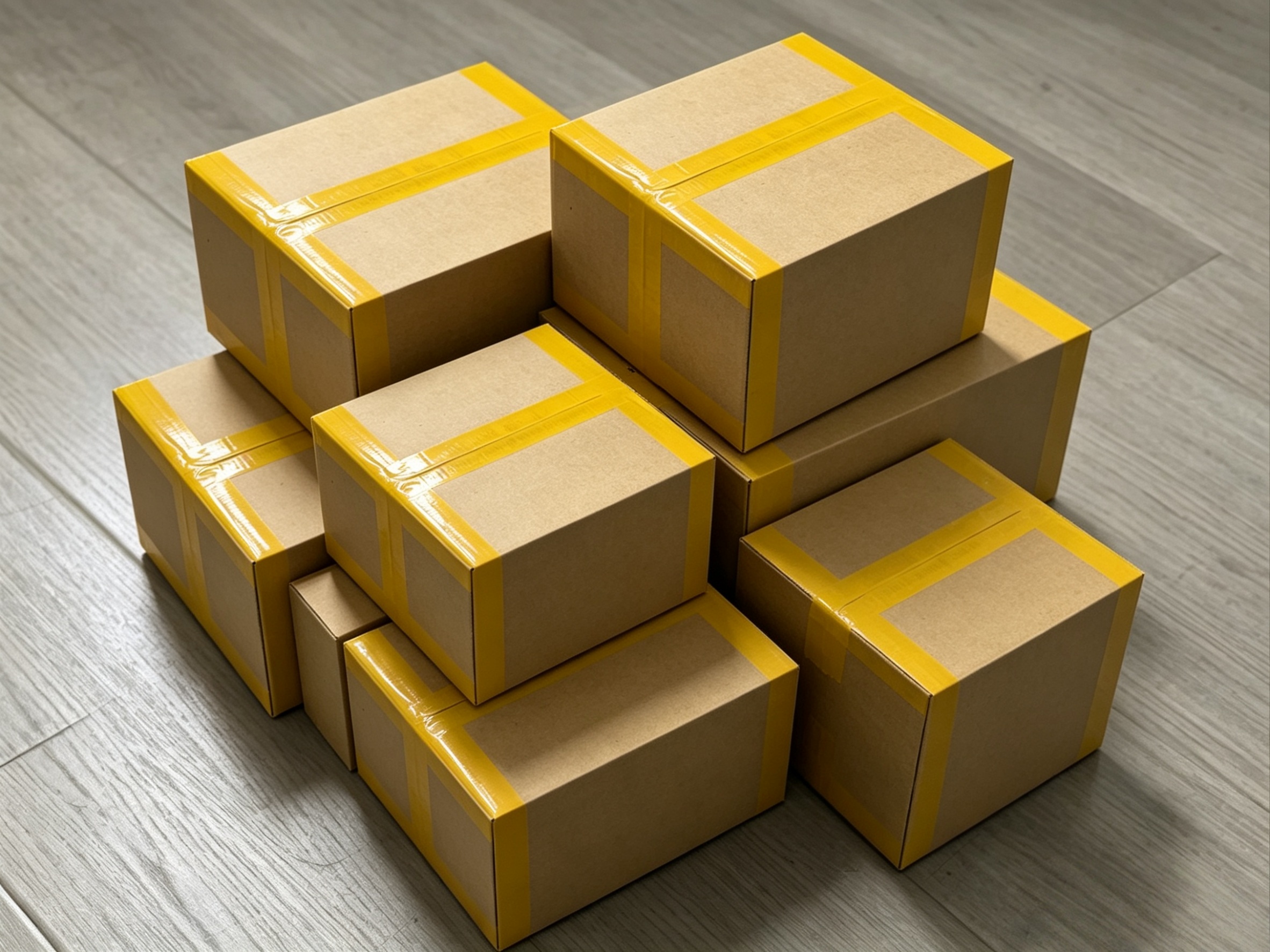

Sample Made From Machine
Main Technical Parameters
Model | KFZ-5050+KFJ-755 |
|---|---|
Power supply | 220V/50–60HZ |
Maximum packaging size | L600*W500*H500mm |
Minimum packaging size | L300*W200*H180mm |
Tape width | 48–72mm |
Countertop height | 600–630mm |
Machine dimensions | L3040*W1980*H1420mm |
Machine weight | 650kg |
Pressure source supply | 5.5–6kg/cm² |
Roller Material | Stainless Steel Roller |

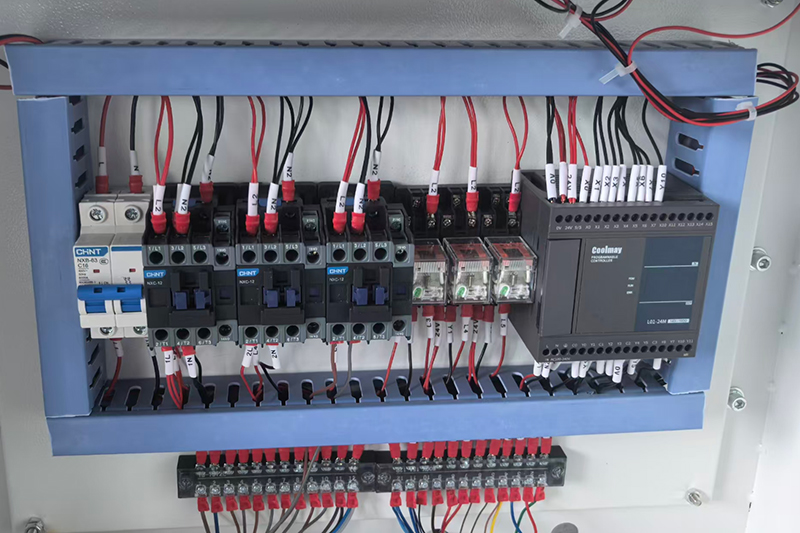

Electrical Configuration
Main Power Switch | CHNT |
|---|---|
Fuse | CHNT |
Limit Switch | Yongde |
Circuit Breaker | CHNT |
AC Contactor | CHNT |
PLC | Weikong |
Intermediate Relay | CHNT |
Solenoid Valve | Airtac / Shenchi |
Air Cylinder | Airtac / Shenchi |
Gear Reduction Motor | Taibang / Libang |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.

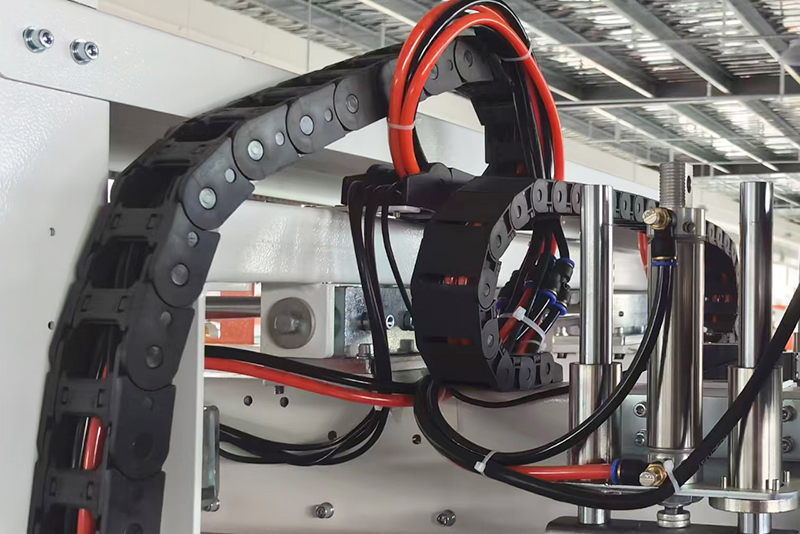

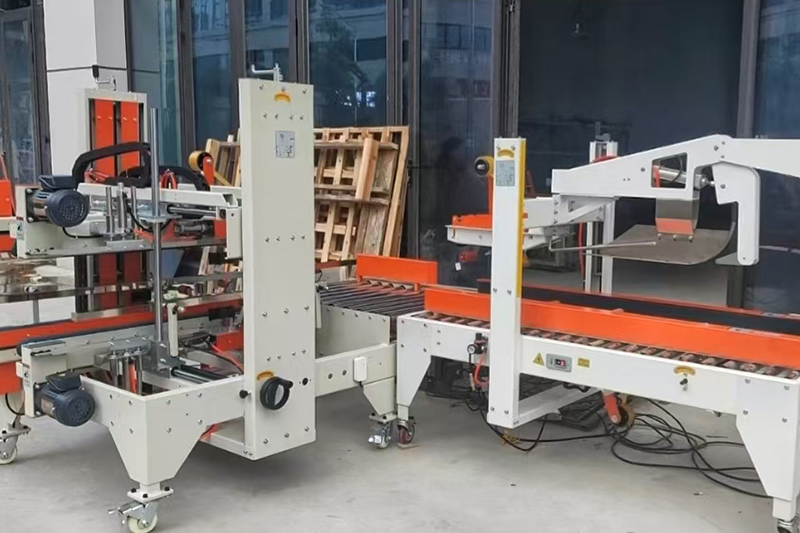

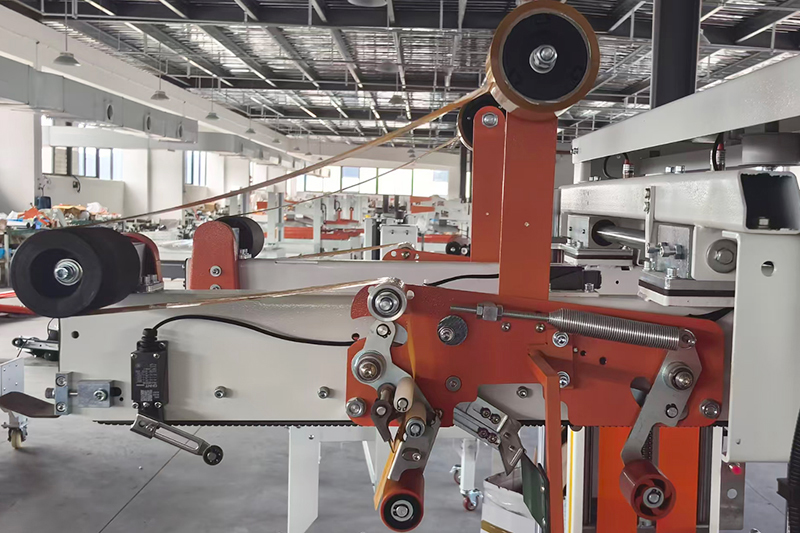

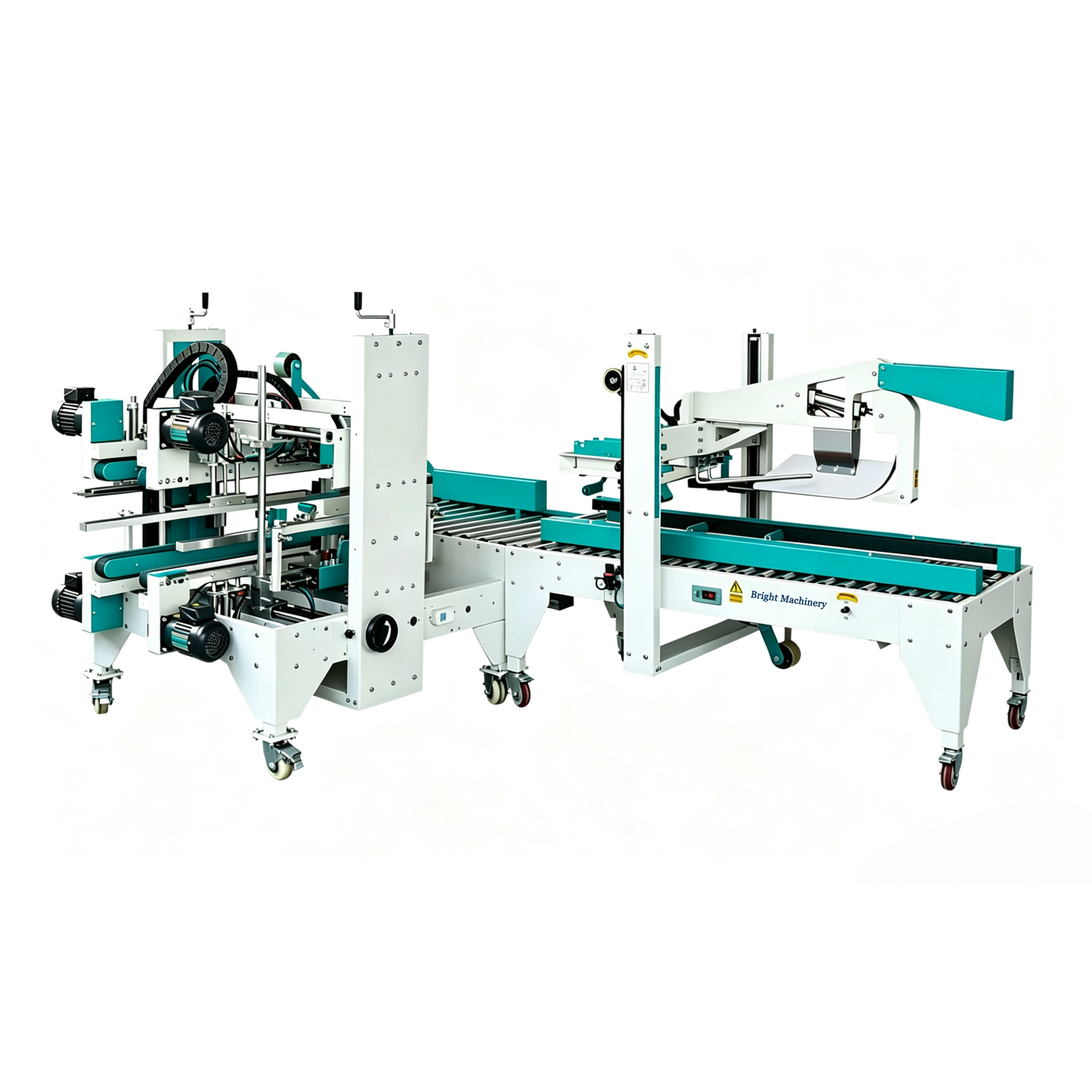

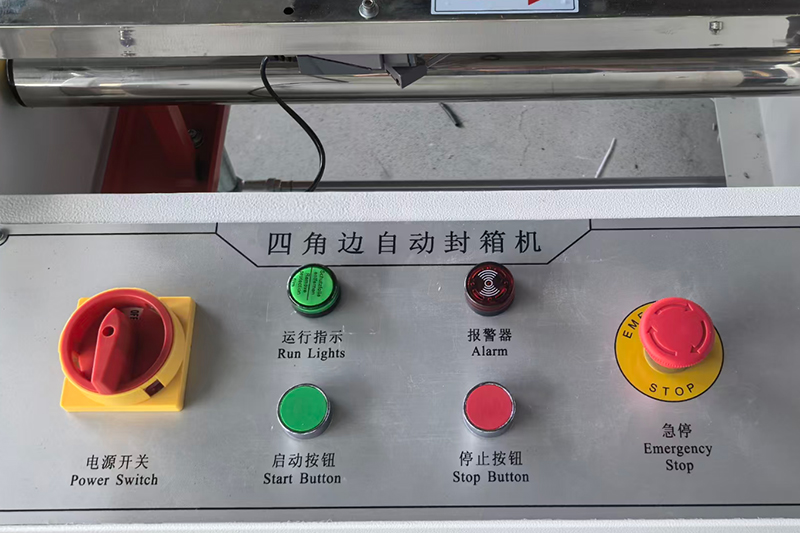

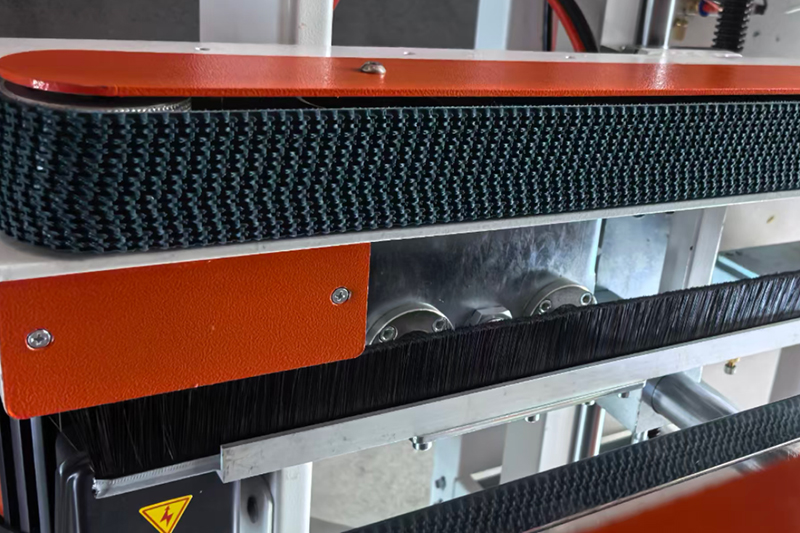

Machine Pic for Reference:
