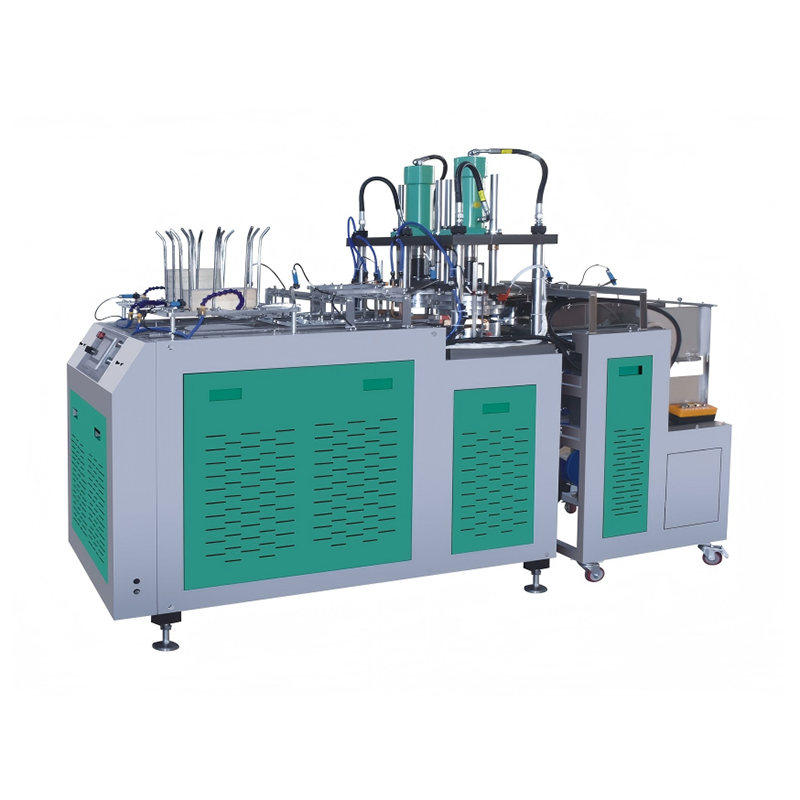

The ML620Y Economical Hydraulic Dual-Station Paper Plate Making Machine is developed for producing disposable paper plates used in catering, food service, parties, and other tableware applications. Its dual-station hydraulic forming structure supports efficient paper plate production, while interchangeable molds allow manufacturers to produce different plate sizes and shapes according to production requirements. The compact machine structure and straightforward control system make it suitable for daily disposable tableware manufacturing.

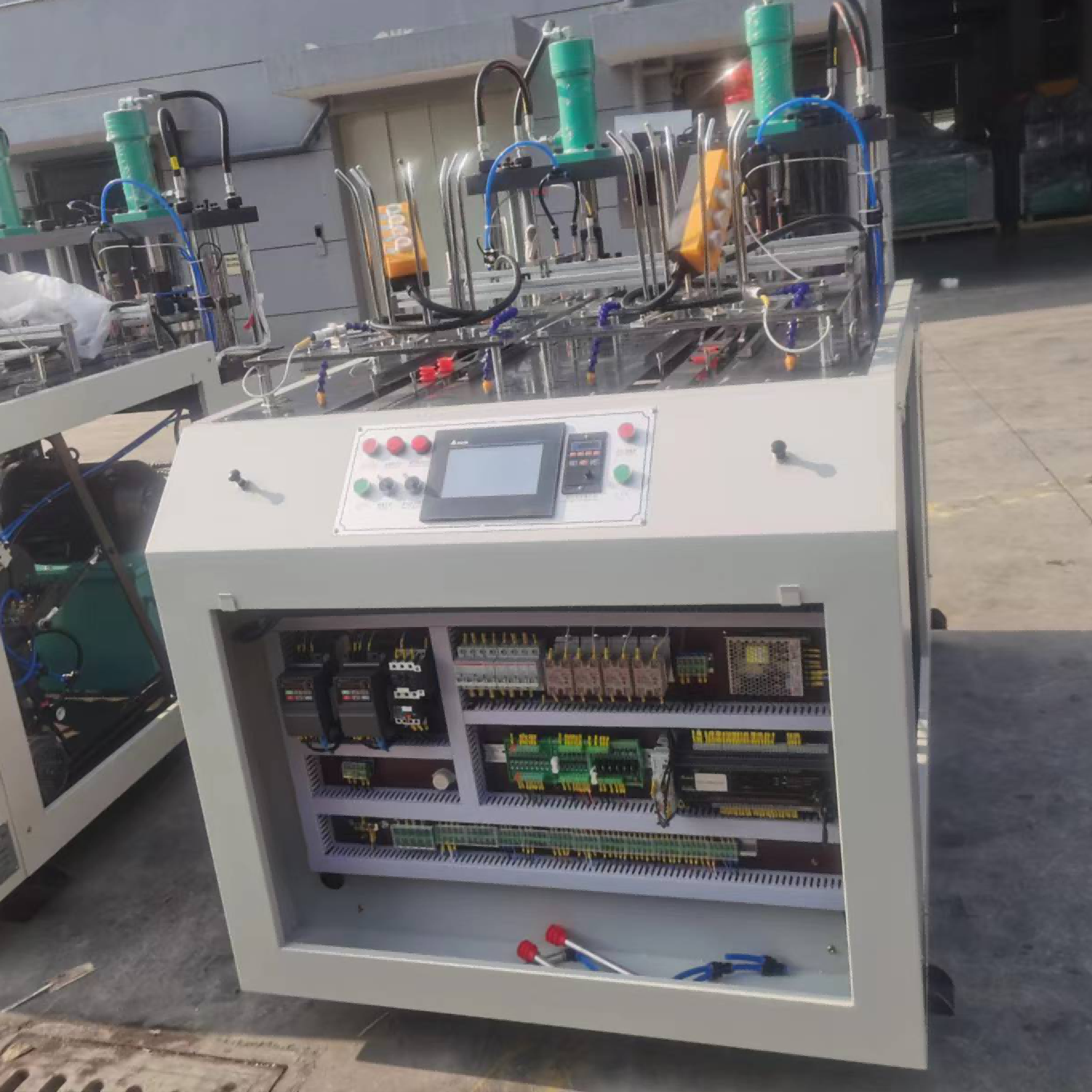

The ML620Y is equipped with PLC control, a touch-screen interface, and a photoelectric detection system to support automated machine operation and production monitoring. The machine can also be connected with compatible packaging equipment according to production-line requirements, providing manufacturers with greater flexibility when planning automated paper plate production and packaging processes.
Photoelectric Detection & Alarm: The machine is equipped with a photoelectric detection system that supports automatic detection and fault alarms during production, helping operators identify abnormal operating conditions in a timely manner.
Flexible Plate Production: By changing the forming molds, the ML620Y can produce different sizes and shapes of paper plates, including conventional round and square designs, according to customer production requirements.

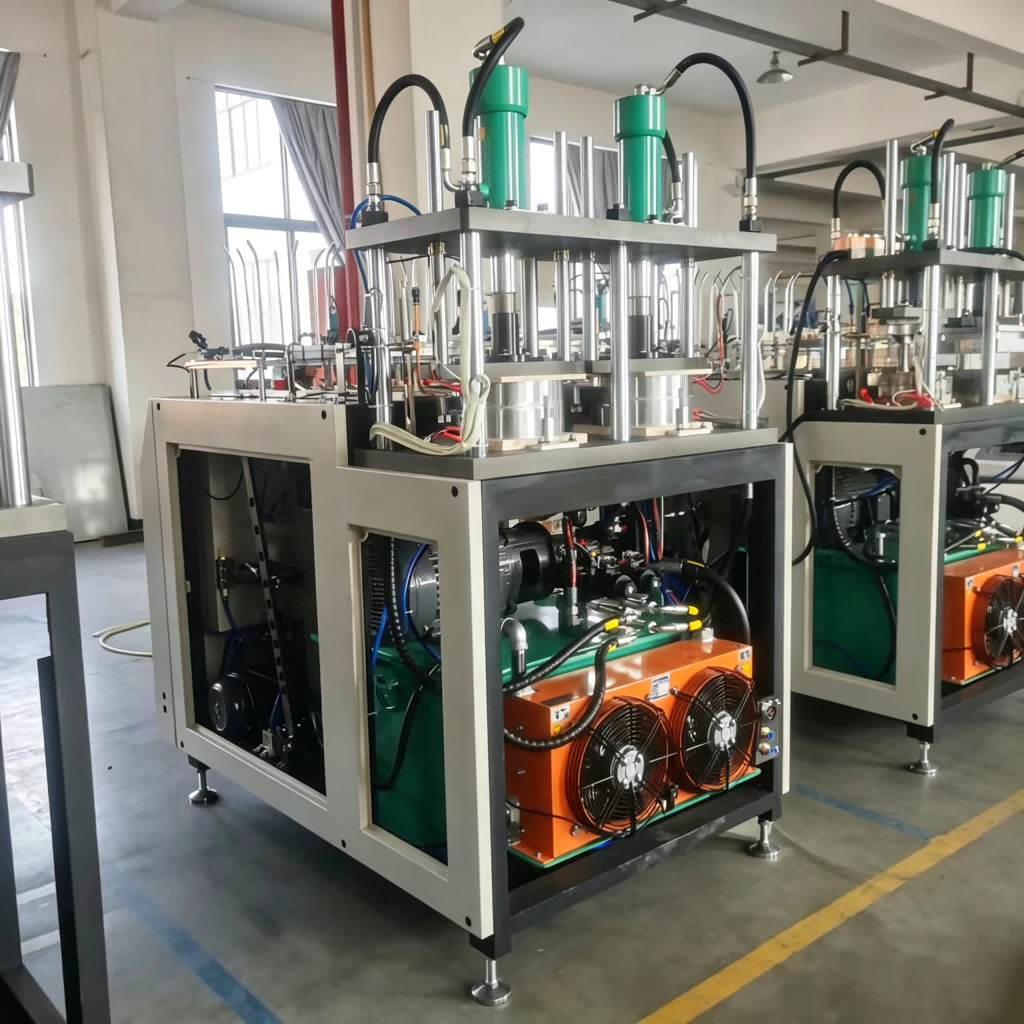

Dual-Station Hydraulic Forming: The hydraulic dual-station system supports coordinated paper plate forming and provides the pressing force required for different plate molds and paper materials.
Efficient Dual-Station Production: The dual-station structure is designed to support efficient paper plate production. Actual production speed varies according to plate size, shape, paper material, mold configuration, and confirmed operating parameters.
Compact Structure: With dimensions of 2300×1000×1800mm, the ML620Y features a compact structure and relatively small installation footprint, helping manufacturers make efficient use of production-floor space.
Economical Model: The ML620Y is positioned as an economical hydraulic paper plate machine, combining dual-station production, automatic control, and a compact machine structure for disposable tableware manufacturing.
The ML620Y supports a range of paper materials for disposable paper plate production, including base paper, laminated paper, printed paper, white paperboard, white cardboard, kraft paper, aluminum foil paper, and other suitable materials.
According to the current technical specifications, the machine supports paper weights from 150–800g/m². Actual forming results depend on the paper material, thickness, coating or lamination structure, plate design, and selected mold configuration.
The ML620Y operates with a 380V 50Hz power supply, with rated power of 10KW and actual power specified as 8KW. The machine weighs approximately 1600kg and measures 2300×1000×1800mm. It supports paper plate sizes from 4–12 inches and paper weights from 150–800g/m². The air supply requirement is 0.6MPa at 0.3m³/min, and the hydraulic system uses an ML-80-150-5T-X oil cylinder with a 150mm stroke.
Paper Plate Size | 4-12” |
|---|---|
Thickness | 150-800g/m² |
Materials | Origin paper, whiteboard paper, white cardboard, craft paper aluminum foil paper or others |
Machine Speed | Double Stations 40-110pcs/min |
Power Requirements | 380V 50HZ |
Rated Power | 10KW |
Actual Power | 8KW |
Weight | 1600kg |
Size | 2300×1000×1800mm |
Air Supply Requirement | 0.6Mpa, 0.3cube/min |
Other Notes | Customize |
Oil Cylinder | ML-80-150-5T-X |
Cylinder Stroke | 150mm |

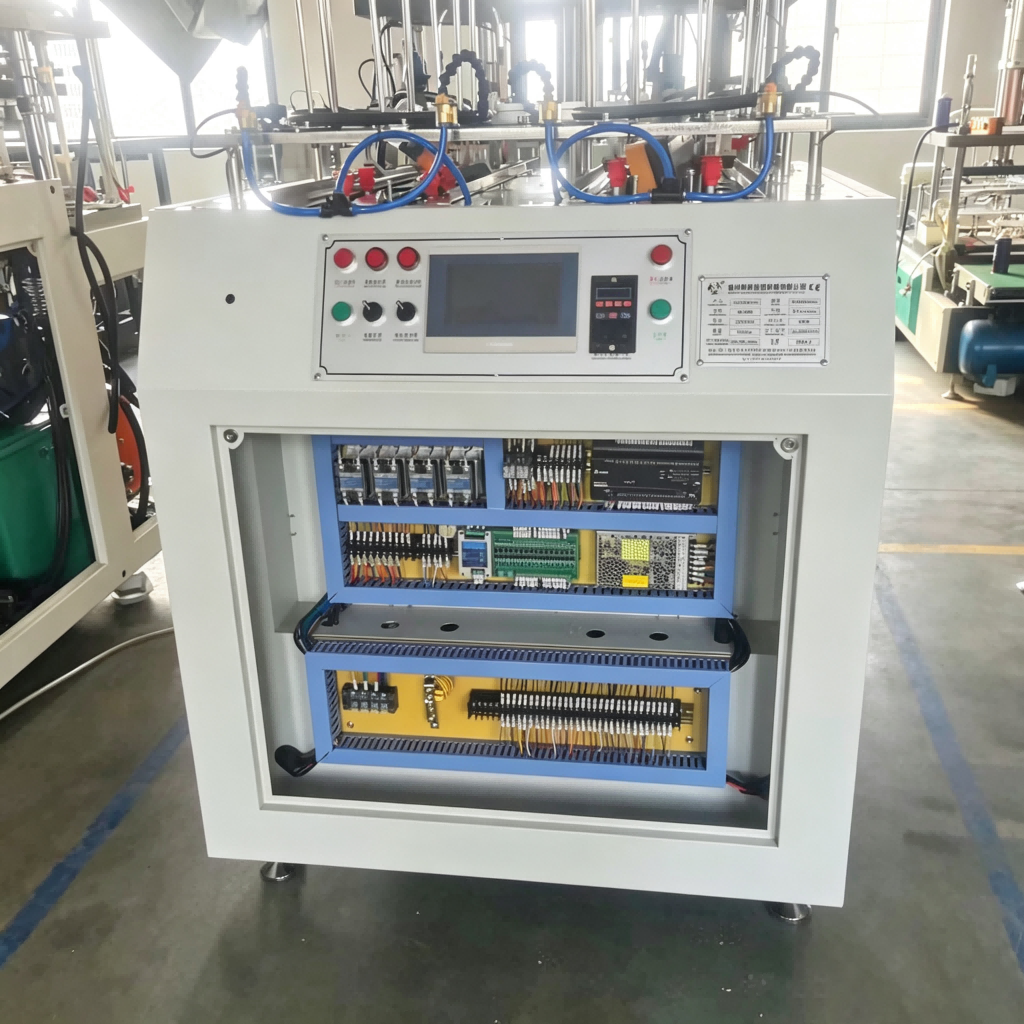

The ML620Y uses specified electrical, hydraulic, and temperature-control components to support coordinated machine operation. According to the current configuration, the machine is equipped with a Taida PLC, Fanyi touch screen, Shanghai Qide photoelectric components, Taiwan Airtac solenoid valve, Shanghai Xingyu temperature sensor, Chint AC contactor, and other selected components. Component brands may be adjusted according to machine configuration or customer requirements.
NO | Spare Parts | Supplier |
|---|---|---|
1 | Hydraulic Motor | Taiwan |
2 | Normally Closed Photoelectric | Shanghai Qide |
3 | Stainless Steel Heating Pipe | Jiangsu Rong Dali |
4 | Oil Pump | Taiwan |
5 | Counter Switch | Yueqing Tiangao |
6 | Normally Open Photoelectric | Shanghai Qide |
7 | Solenoid Valve | Taiwan Airtac |
8 | Bearing | Harbin |
9 | Temperature Sensor | Shanghai Xingyu |
10 | AC Contactor | Chint |
11 | Frequency Transformer | Cocken |
12 | (Touch Screen) | Fanyi |
13 | PLC | Taida |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.
The ML620Y can be configured according to different paper plate sizes, shapes, materials, and production requirements. Customers can provide paper plate samples, drawings, dimensions, paper specifications, or target products to support machine and mold configuration.
For machine operation and technical requirements, customers can contact our team to discuss suitable configurations, compatible molds, production-line connection requirements, and other project-specific details.

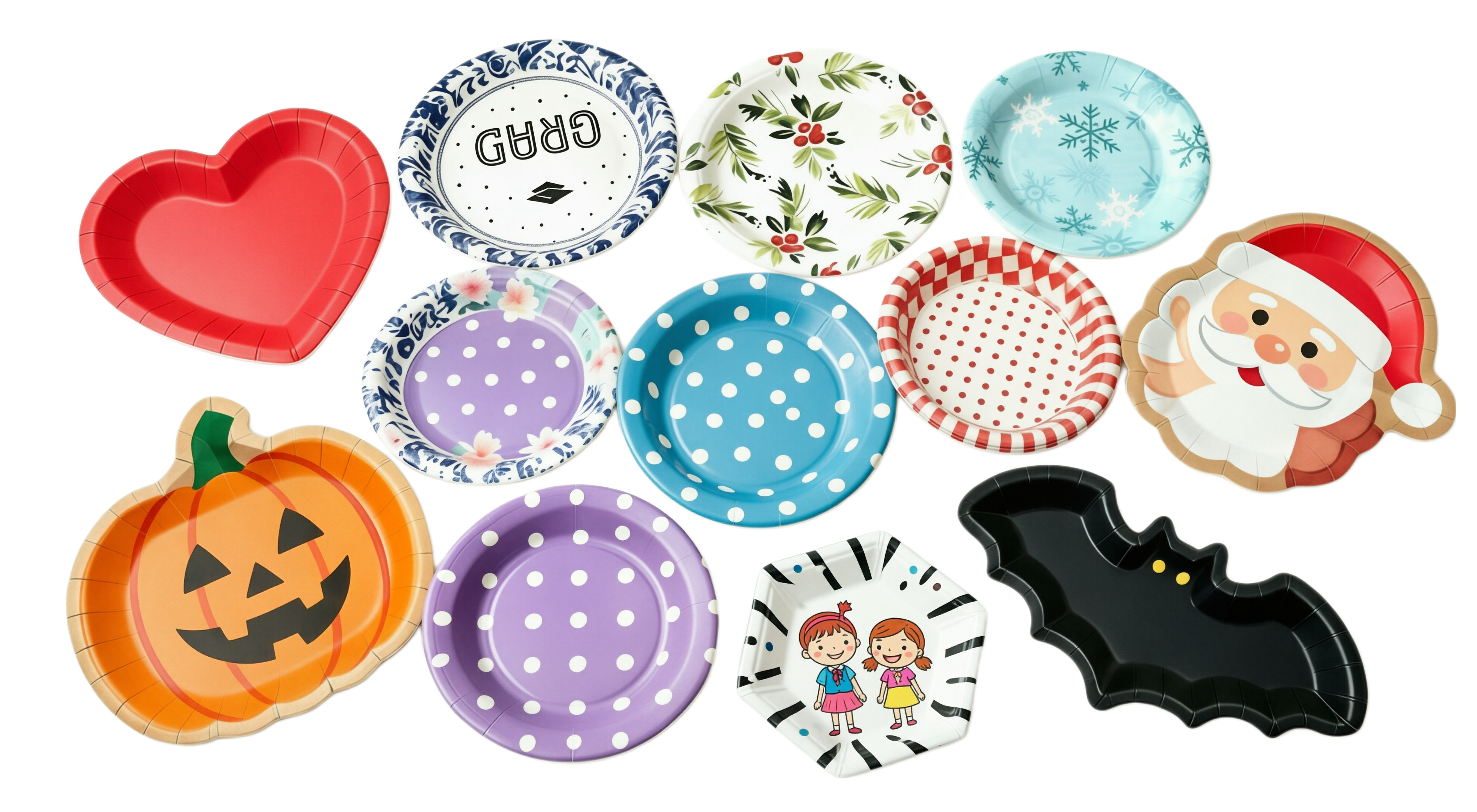

The ML620Y is suitable for producing disposable paper plates for catering, food service, parties, take-away packaging, and other disposable tableware applications. By changing the forming molds, manufacturers can produce round, square, and other compatible paper plate shapes according to market and customer requirements.
