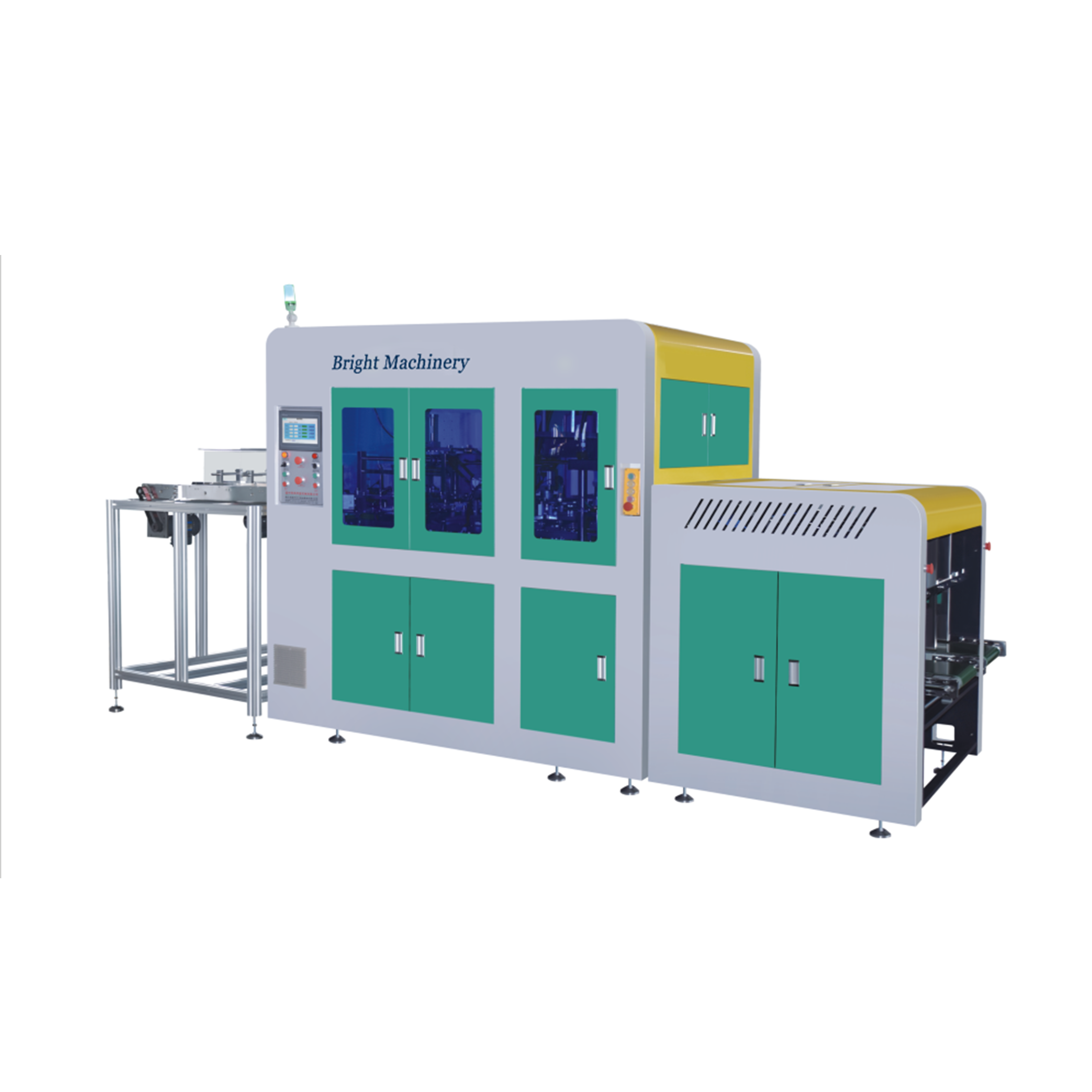

ML660Y Paper Plate Machine Features:
Our ML660Y Deluxe Energy‑saving Fully Automatic Dual‑station Paper Plate Making Machine comes with a fully enclosed mechanical outer cover and complete safety protection. It can produce standard round and square paper plates. Adopting a dual-station independent hydraulic control system and high-grade electric configuration, the machine features low-noise operation. It is equipped with a photoelectric system and photoelectric detection device, which triggers automatic fault alarms to ensure safe and worry-free production. With automatic feeding function, manual loading is not required, greatly saving time and labor and delivering a high degree of automation. The dual-station machine runs at a fast production speed of 60–100 Pcs/min for standard paper plates.

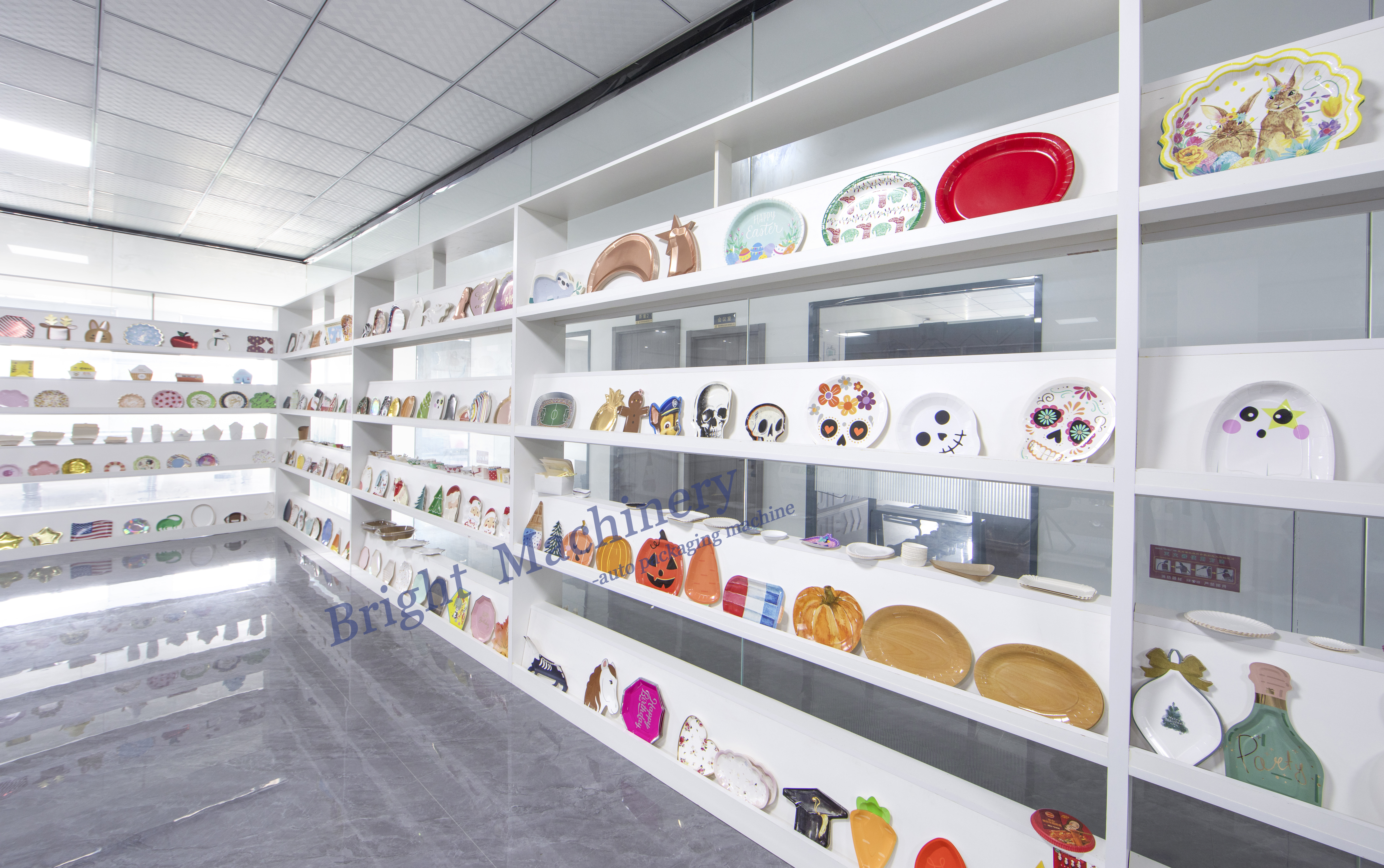

Paper Plate Sample:
Main Technical Parameters:
Paper Plate Size | 4-13 inches |
|---|---|
Paper Grams | 150-800 g / m² |
Paper Materials | Raw paper, white board paper, white card paper, aluminum foil or others |
Capacity | Double Stations 60-140 mice / min |
Power Requirement | 380V 50HZ |
Total Power | Rated power 8KW, Actual Power 5KW |
Weight | 2630kg |
Specifications | 4250X1300X2000mm (including length of paper holder) |
Air Supply Requirement | 0.6 Mpa, 0.1 cube / min |
Other Notes | Customize |
Oil Cylinder | 80x150x6T |
Cylinder Stroke | 150mm |
Electrical Configuration:
NO | Spare Parts | Supplier |
|---|---|---|
1 | Formed oil-pressure motor | Taiwan |
2 | Often closed photoelectric | Omron, Japan |
3 | touch screen | delta |
4 | Stainless steel heating pipe | Jiangsu Ronglida |
5 | Push plate motor | Taiwan |
6 | counter switch | Schneider |
7 | Normally open photoelectric | Omron, Japan |
8 | electromagnetic valve | Taiwan Airtac |
9 | bearing | Harbin |
10 | temperature sensor | Shanghai xingyu |
11 | AC contactor | Schneider |
12 | Frequency transformer | delta |
13 | PLC | delta |
14 | Temperature module | delta |
15 | Push plate servo motor | Xinjie |
16 | Paper feeding servo motor | Xinjie |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.

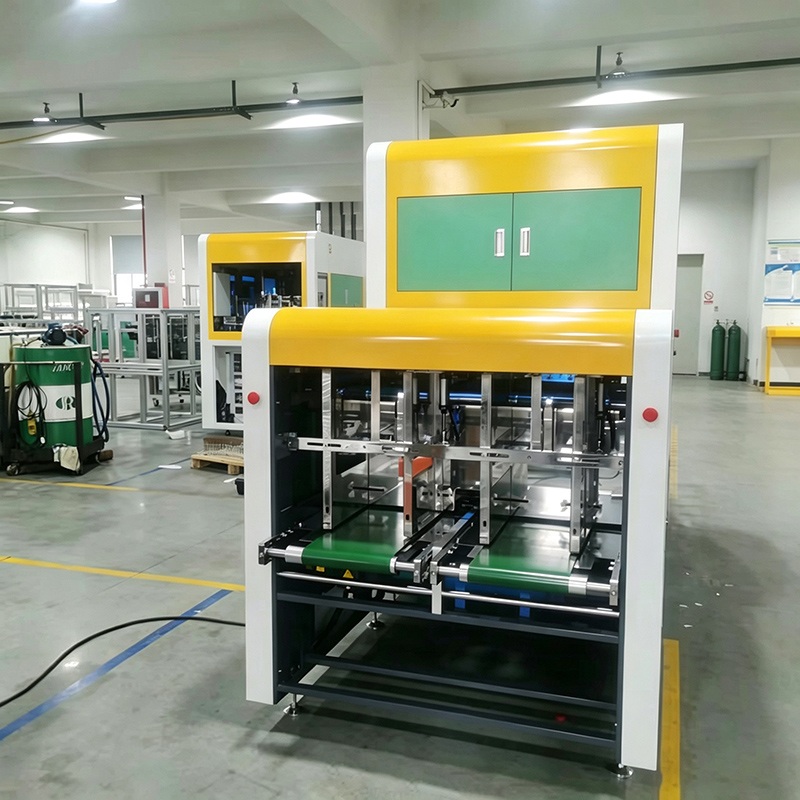

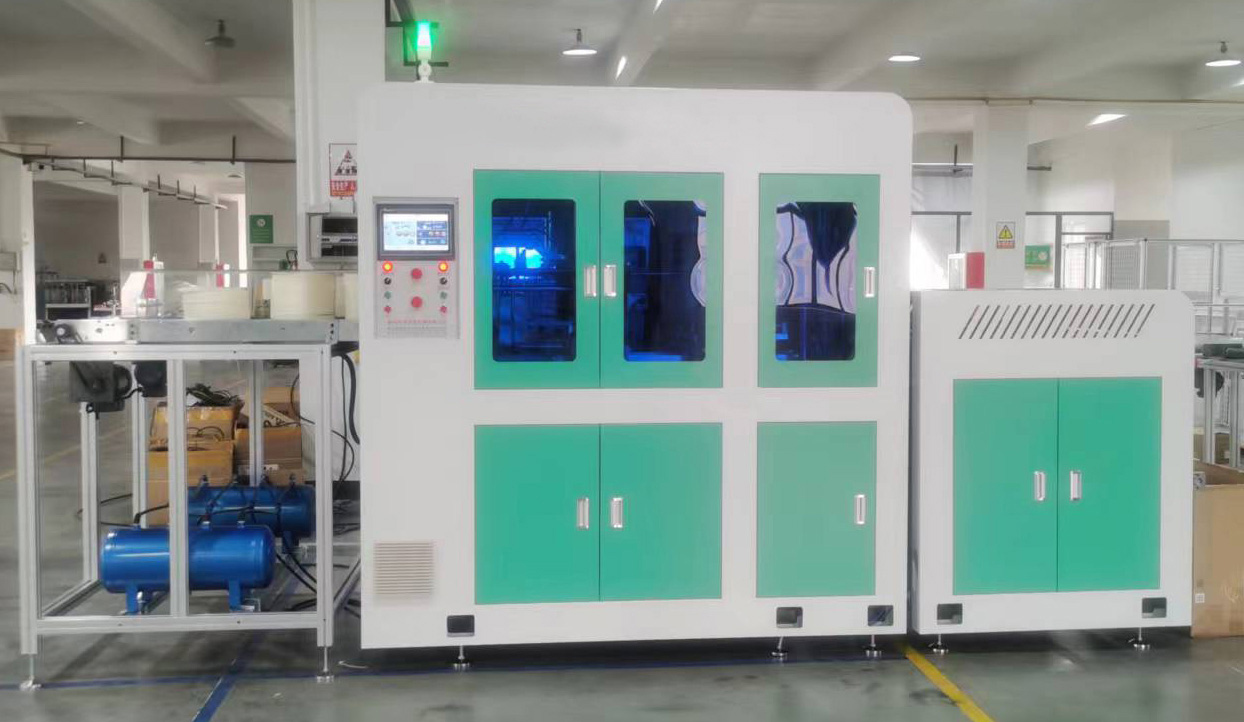

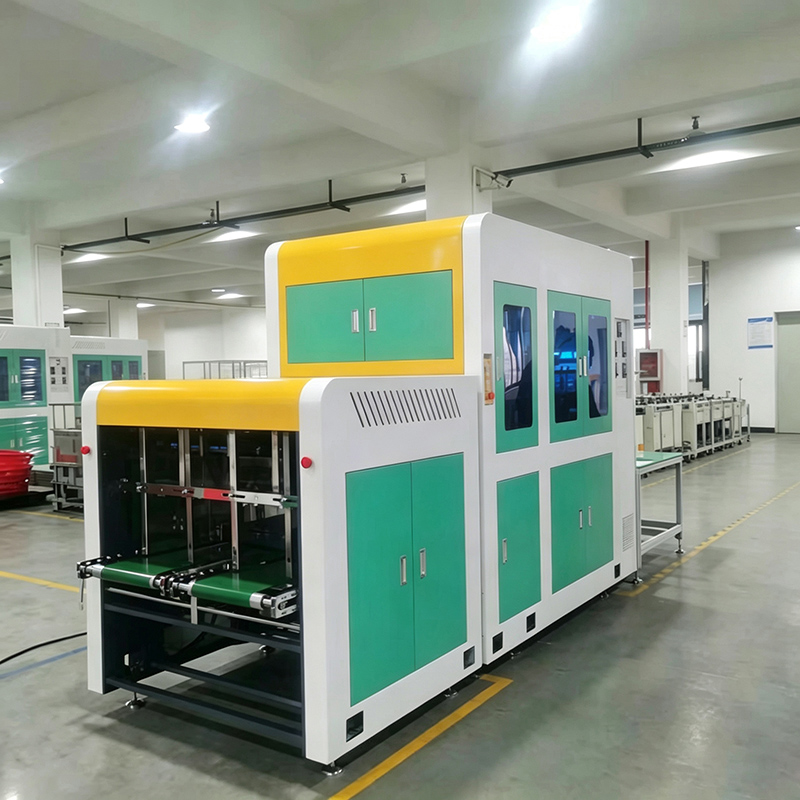

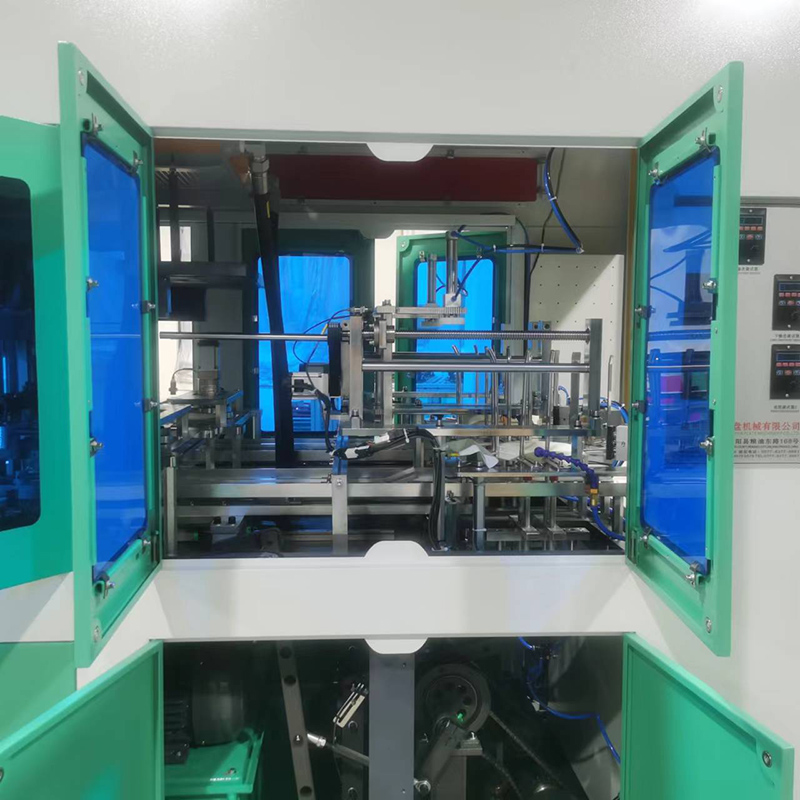

Paper Plate Machine Picture for Reference:
