ML 1780Y Paper Plate Machine Details:
Our ML1780Y Full Automatic Hydraulic Double Station Paper Plate Forming Machine adopts servo drive for paper suction, feeding, and material collection, saving space and labor compared to traditional paper plate forming machines, and achieving higher precision and efficiency. The machine utilizes a hydraulic system for forming, which is more stable than pneumatic and mechanical systems, and produces better-looking plates. The entire machine is equipped with a closed safety cover and multiple touch screens, with photoelectric tracking and intelligent monitoring throughout the production process. It enables one-button start for fully automatic operation and can be directly connected to weighing machines, packaging machines, labeling machines, etc., achieving safe and intelligent production on the paper plate machine assembly line.
Paper Plate Made From Machine:
Main Technical Parameters
Paper Plate Size | 5.5–7 inches |
|---|---|
Paper Grams | 150–600 g/m² |
Paper Materials | Raw paper, whiteboard paper, white cardboard, aluminum foil, or others |
Capacity | Dual workstation: 120–200 pieces per minute |
Power Requirements | 380V 50-60HZ |
Rated Power | 25KW |
Actual Power | 12KW |
Weight | 3800kg |
Specifications | 2700×1600×2000mm |
Air Supply Requirement | Operating pressure 0.6 MPa, air consumption 0.8 m³/min |
Additional Remarks | Customizable |
Oil Cylinder | ML-80-150-10T-X |
Electrical Configuration
Serial Number | Accessories | Model | Quantity | Supplier |
|---|---|---|---|---|
1 | 7-inch Touchscreen | 1070N | 2 | Fanyi |
2 | Bus-Based Motion Controller | New 8-axis bus controller | 1 | Trio |
3 | Input Expansion Module | Input at 16:00 | 3 | Trio |
4 | Output Expansion Module | 16 point output | 3 | Trio |
5 | 400W Servo Driver | ED5E servo driver ED5E-04AEA | 4 | Estun |
6 | 400W Servo Motor | EM5E servo motor EM5E-04ATA221 | 4 | Estun |
7 | 750W Servo Driver | ED5E servo driver ED5E-08AEA | 4 | Estun |
8 | 750W Servo Motor | EM5E servo motor EM5E-08ATA221 | 4 | Estun |
9 | 400W Servo Power Cable, 3 m | 400W servo power cable, 3-8 meters | 4 | Estun |
10 | 400W Servo Encoder Cable, 3 m | 400W servo encoder cable, 3-8 meters | 4 | Estun |
11 | 750W Servo Power Cable, 3 m | 750W servo power cable, 3-8 meters | 4 | Estun |
12 | 750W Servo Encoder Cable, 3 m | 750W servo encoder cable, 3-8 meters | 4 | Estun |
13 | EC Bus Network Cable | EC bus network cable | 9 | Yongding |
14 | Temperature Control Module | 4 routes | 2 | Panasonic |
15 | Gear Reducer | 750W,1:20 | 2 | Gurr |
16 | Gear Reducer | 400W,1:4 | 2 | Gurr |
17 | Circuit Breaker | 3P63A | 1 | Schneider |
18 | Circuit Breaker | 3P16A | 1 | Schneider |
19 | Circuit Breaker | 1P32A | 4 | Schneider |
20 | Circuit Breaker | 1P16A | 3 | Schneider |
21 | AC Contactor | 3810 | 1 | Schneider |
22 | AC Contactor | 1210 | 1 | Schneider |
23 | AC Contactor | 2510 | 1 | Schneider |
24 | Thermal overload | 23-32A | 1 | Schneider |
25 | Thermal overload | 2.5-4A | 2 | Schneider |
26 | Solid State Relay | 40DA | 8 | Zhejiang Taiquan |
27 | Solid State Relay | 25DD | 6 | Zhejiang Taiquan |
28 | Solid-state radiato | Solid-state radiato | 14 | Zhejiang Taiquan |
29 | Switch Mode Power Supply | 240W | 1 | Zhejiang Mingwei |
30 | Phase Sequence Protector | 1 | Shanghai Zhongdun | |
31 | Intermediate Relay | 24V 5A | 9 | Schneider |
32 | Red Button | Single normally open contact | 2 | Schneider |
33 | Green Button | Single normally open contact | 2 | Schneider |
34 | Two-Stage Shift Lever | Single normally open contact | 4 | Schneider |
35 | Emergency Stop Button | Single normally open contact | 4 | Schneider |
36 | Indicator Light | AC220V | 4 | Schneider |
37 | Warning Light | DC24V | 1 | Helijia |
38 | Yellow Button | Single normally open contact | 4 | Schneider |
41 | Photoelectric switch | M18 | 20 | Shanghai Xiangchuan |
42 | Proximity switch | M18 | 6 | Taiwan |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.

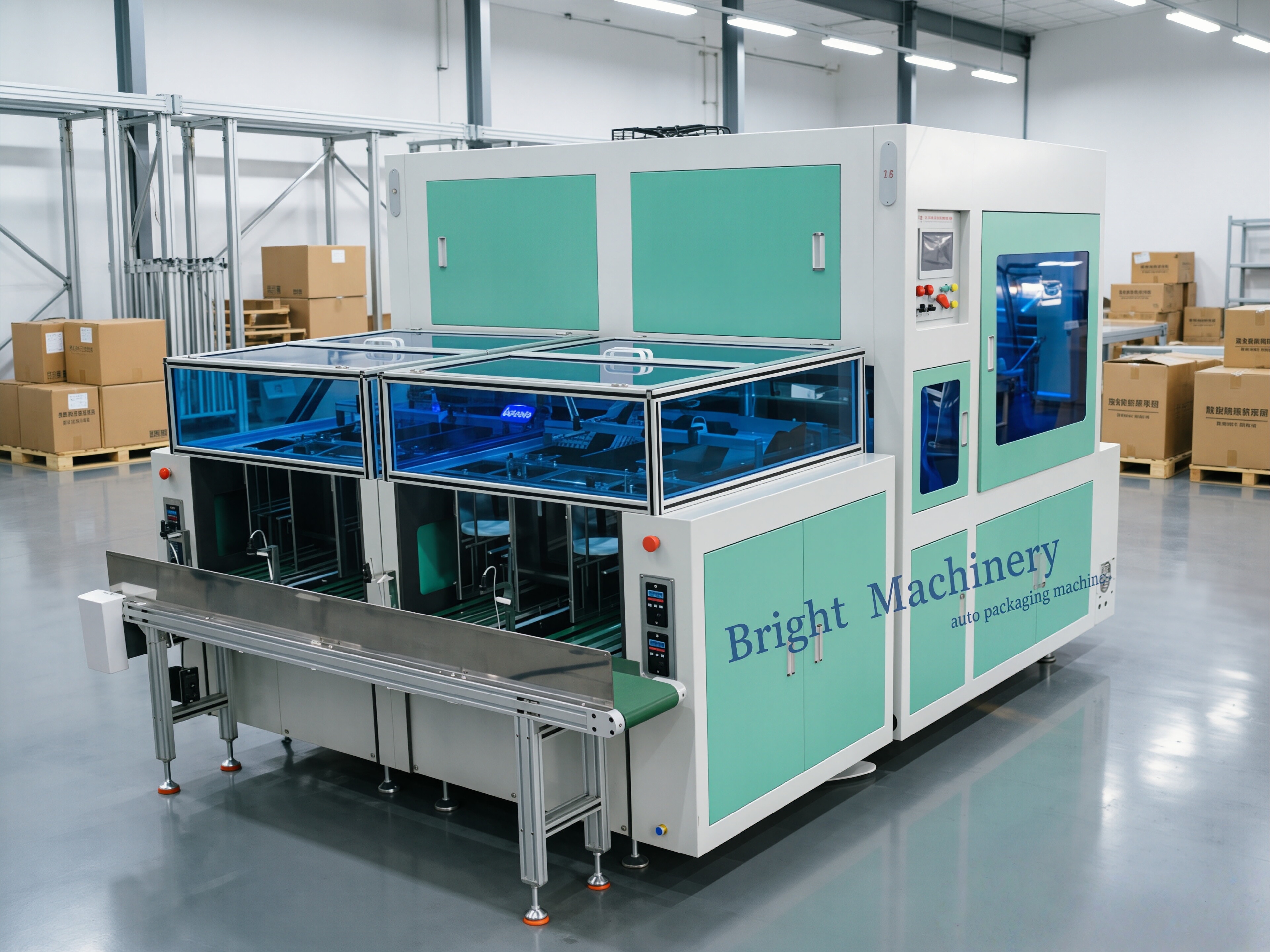

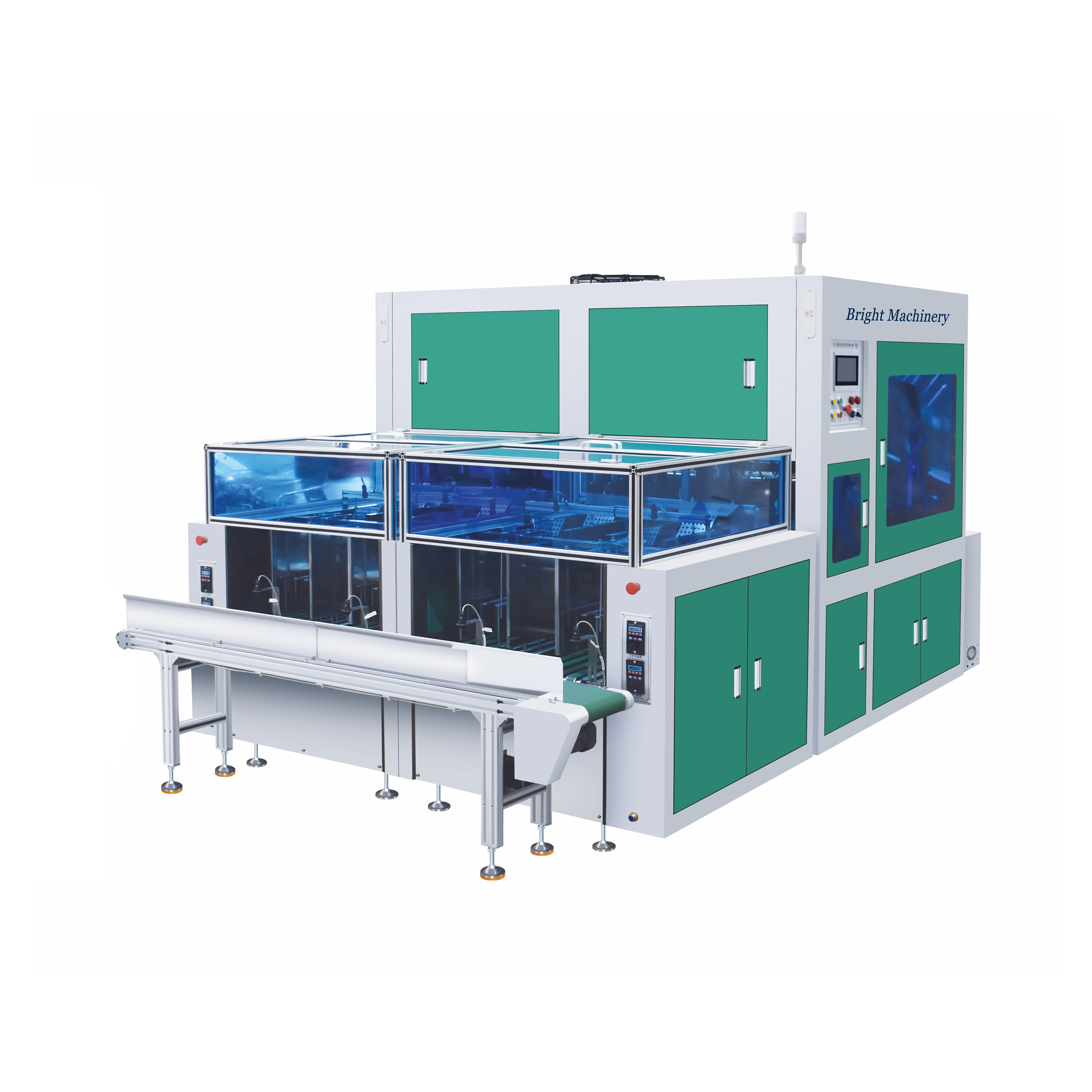

Machine Picture for Reference:
