ML 800J Paper Plate Machine Features:
Our ML800J Heavy Duty Hydraulic Paper Plate Machine for Thick Paper can produce regular paper trays, irregularly shaped paper trays, deep paper trays, and extra-large and thick paper trays. It combines hydraulic and mechanical principles, with servo motor control for precise paper feeding and a robotic arm for tray stacking. Our machine can use raw paper or aluminum foil paper, changing mould, it can produce round or square plates, etc, especially for deep paper trays, it overcomes the hard collection problem.
Suitable Raw Material:
100-3500g/m2 base paper, white cardboard, white cardboard, aluminum foil paper, or other heavy gsm paper.
ML800J Paper Plate Machine Features:
- Supports production of enlarged and thickened paper plates, suitable for large-load-bearing products.

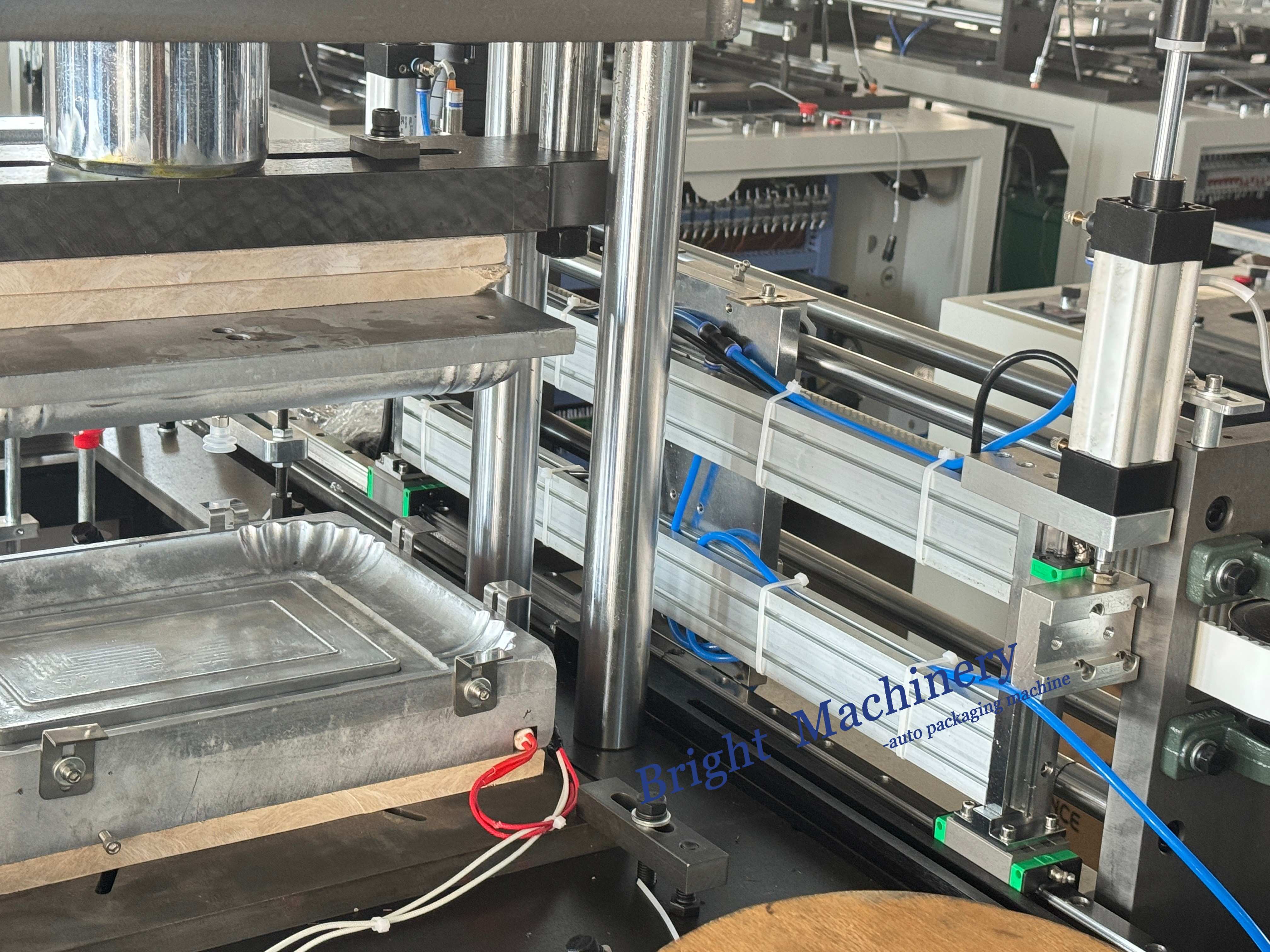

- Equipped with a manipulator for automatic material collection, which saves labor and improves production efficiency.
- Adopts a single-station high-pressure hydraulic cylinder design with strong power and stable heavy-load operation.
- Fitted with a photoelectric detection system that triggers automatic fault alarms, ensuring safer and worry-free production.

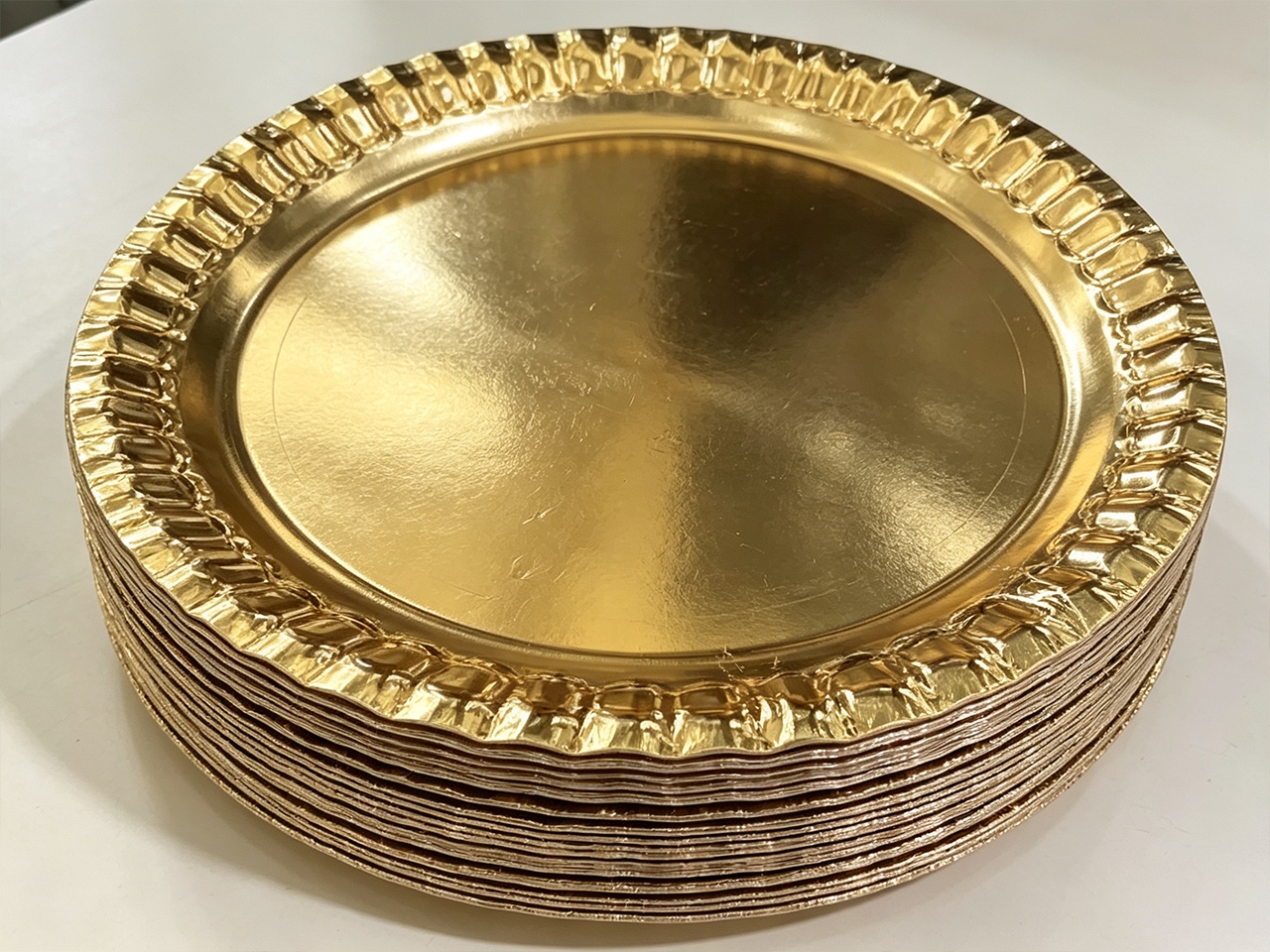

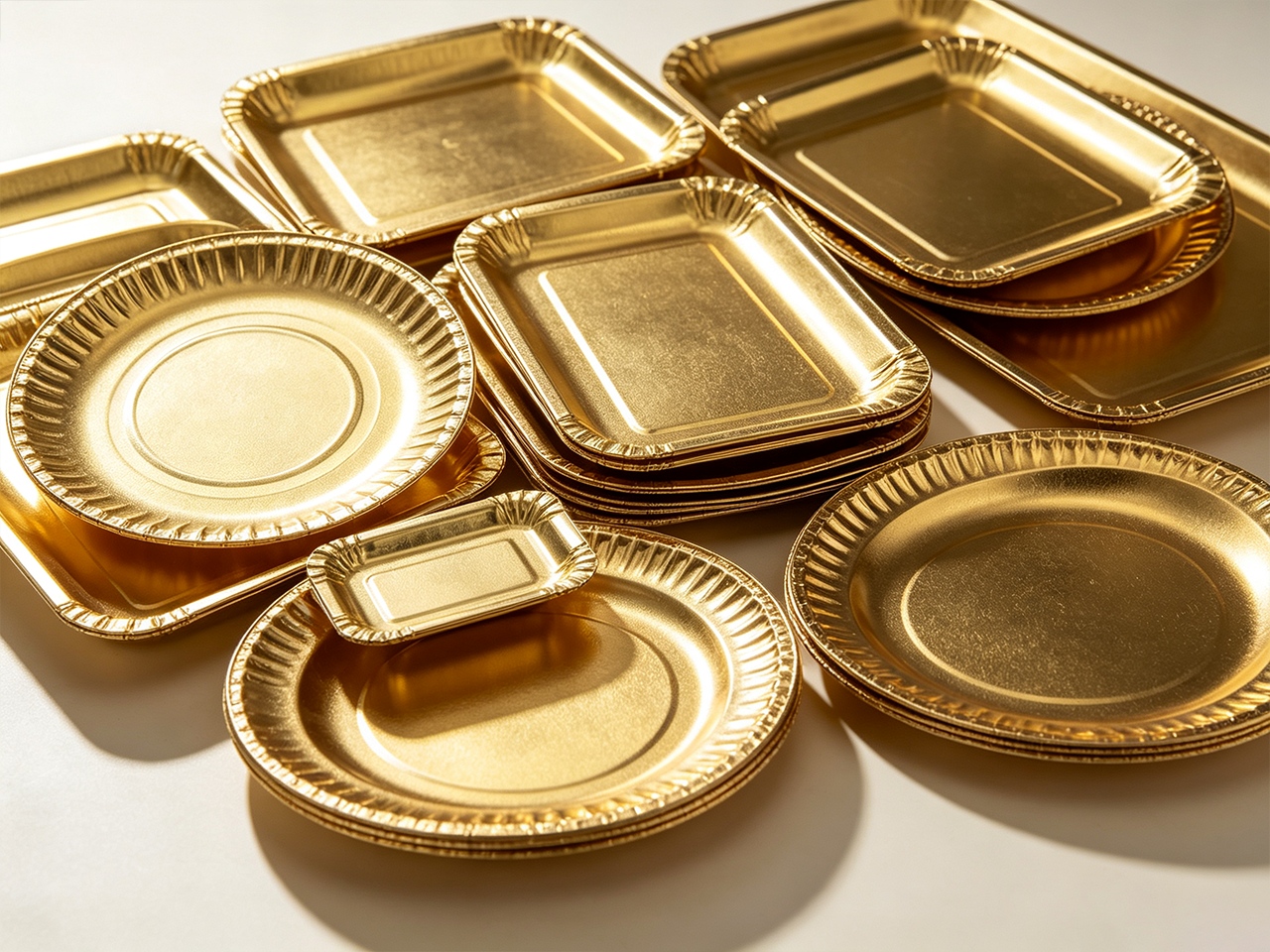

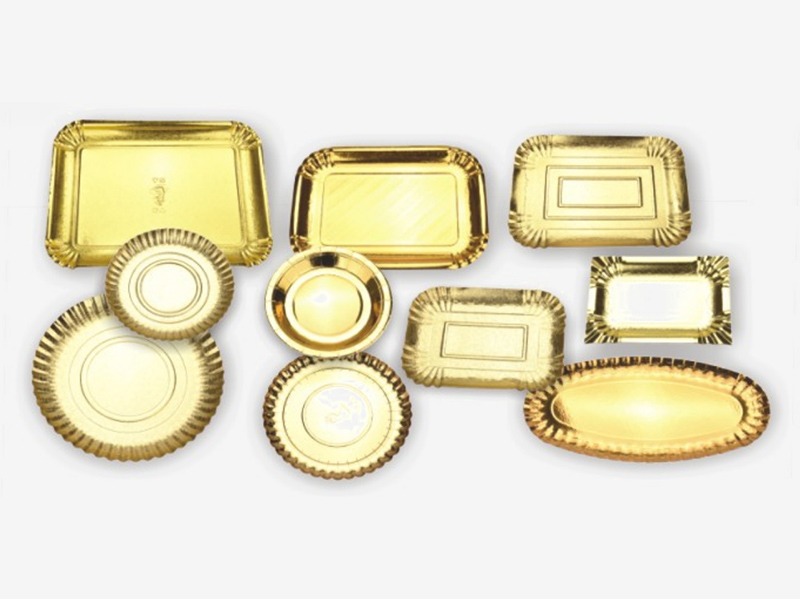

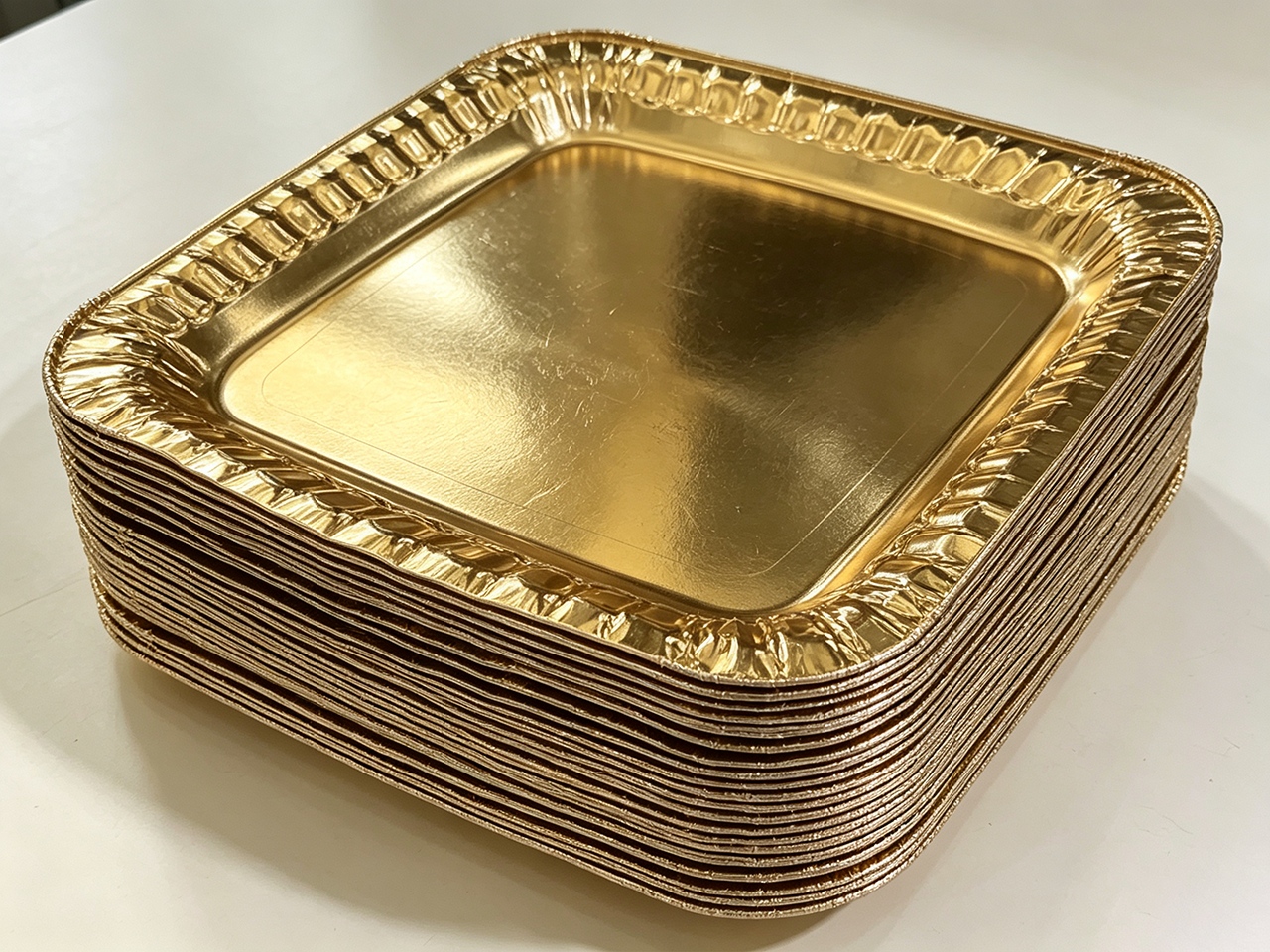

Sample Made From Machine:
Main Technical Parameters:
Model | ML800J |
|---|---|
Paper Plate Size | Round dia 4-20” Square/Rectangular 18(L)×18(W)” |
Capacity | 15-20Pcs/min |
Power Requirements | 380V 50HZ |
Total Power | 4KW |
Weight | 2000Kg |
Specifications | 2500×1100×2300mm |
Raw Material | 100-3500g/m² (Base paper, white cardboard, aluminum foil paper or other heavy gsm paper) |
Air Source | Working pressure 0.6Mpa Working Air volume 0.3m³/min |
Working Pressure | 20-30 TON |
Electrical Configuration:
NO | Spare Parts | Supplier |
|---|---|---|
1 | Hydraulic Motor | Aston |
2 | Normally Closed Photoelectric | Pefun |
3 | Stainless Steel Heating Pipe | Jiangsu Rong Dali |
4 | Oil Pump | Taiwan |
5 | Counter Switch | Tiwu |
6 | Normally Open Photoelectric | Tiwu |
7 | Solenoid Valve | Taiwan Airtac |
8 | Bearing | Harbin |
9 | Temperature Sensor | Shanghai Xingyu |
10 | AC Contactor | Delixi |
11 | (Touch Screen) | Flexem |
12 | PLC | Schneider |
13 | Heat Protector | Delixi |
14 | Breaker | Delixi |
15 | Power Switch | MW(Mean Well) |
16 | Speed Controller | TVT |
17 | Servo Motor | Ruichi |
Parts supplied maybe subjected to upgrates, revisions, or brand-changes without prior notice. Please notify in advance if there are brand requirements.

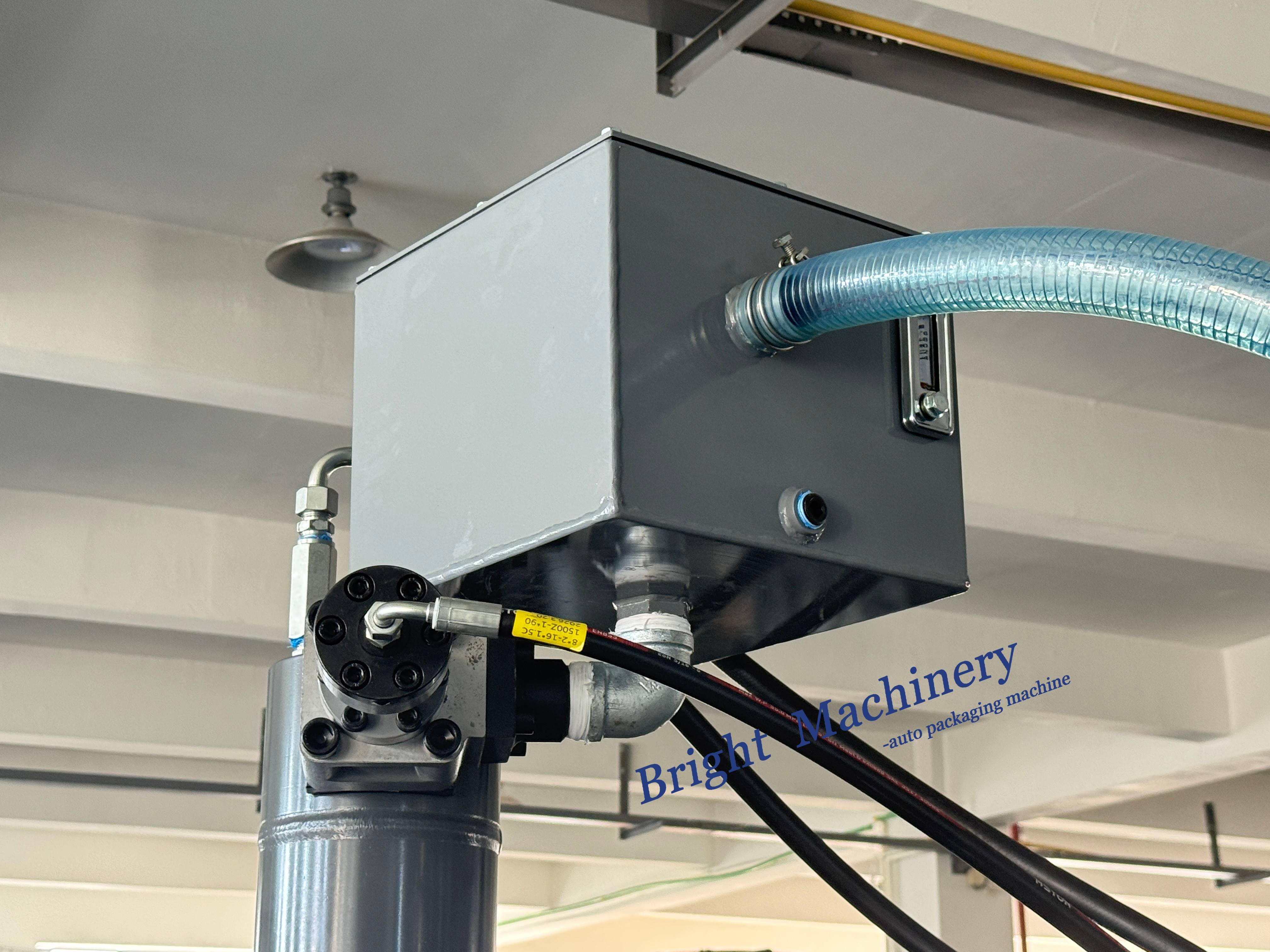

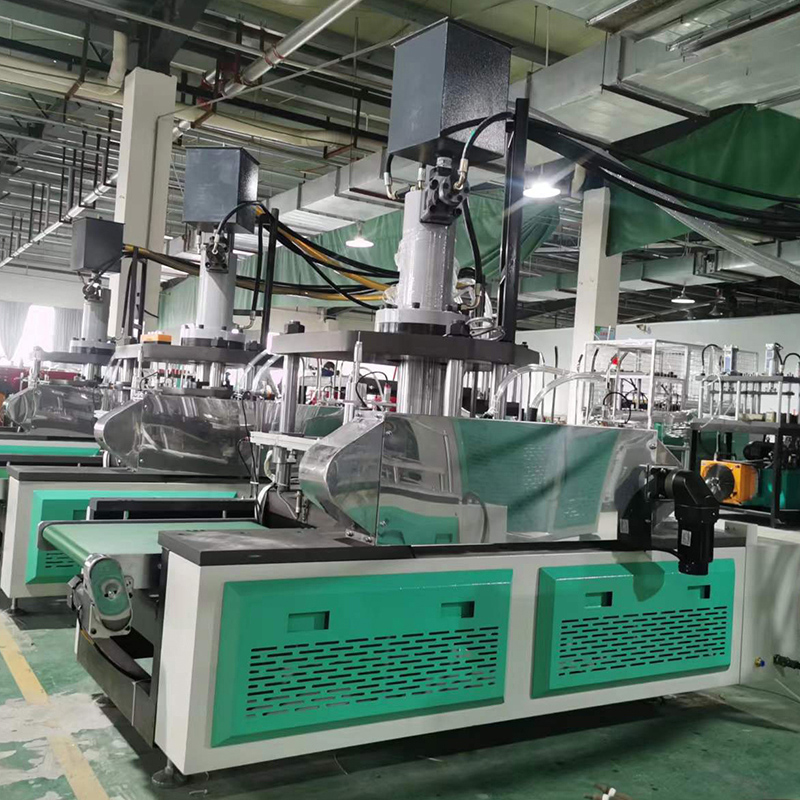

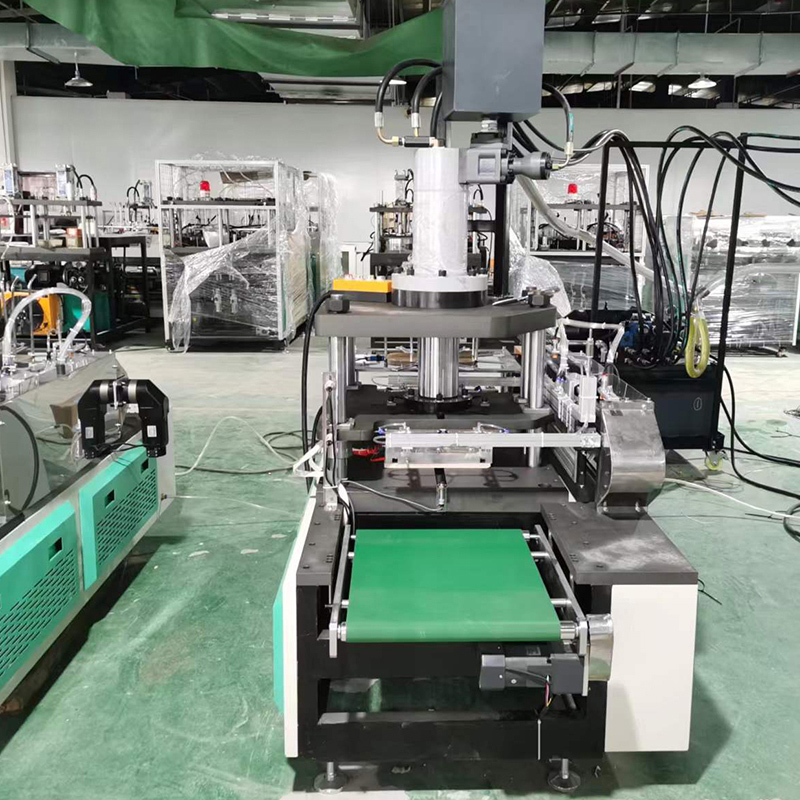

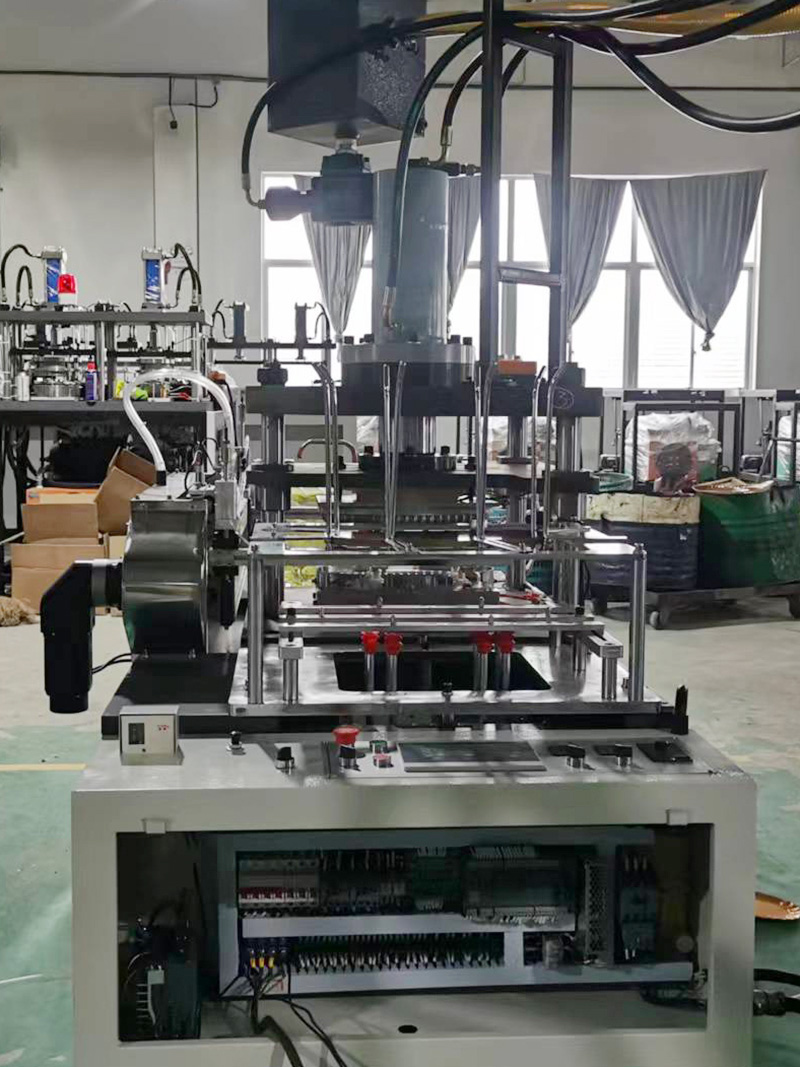

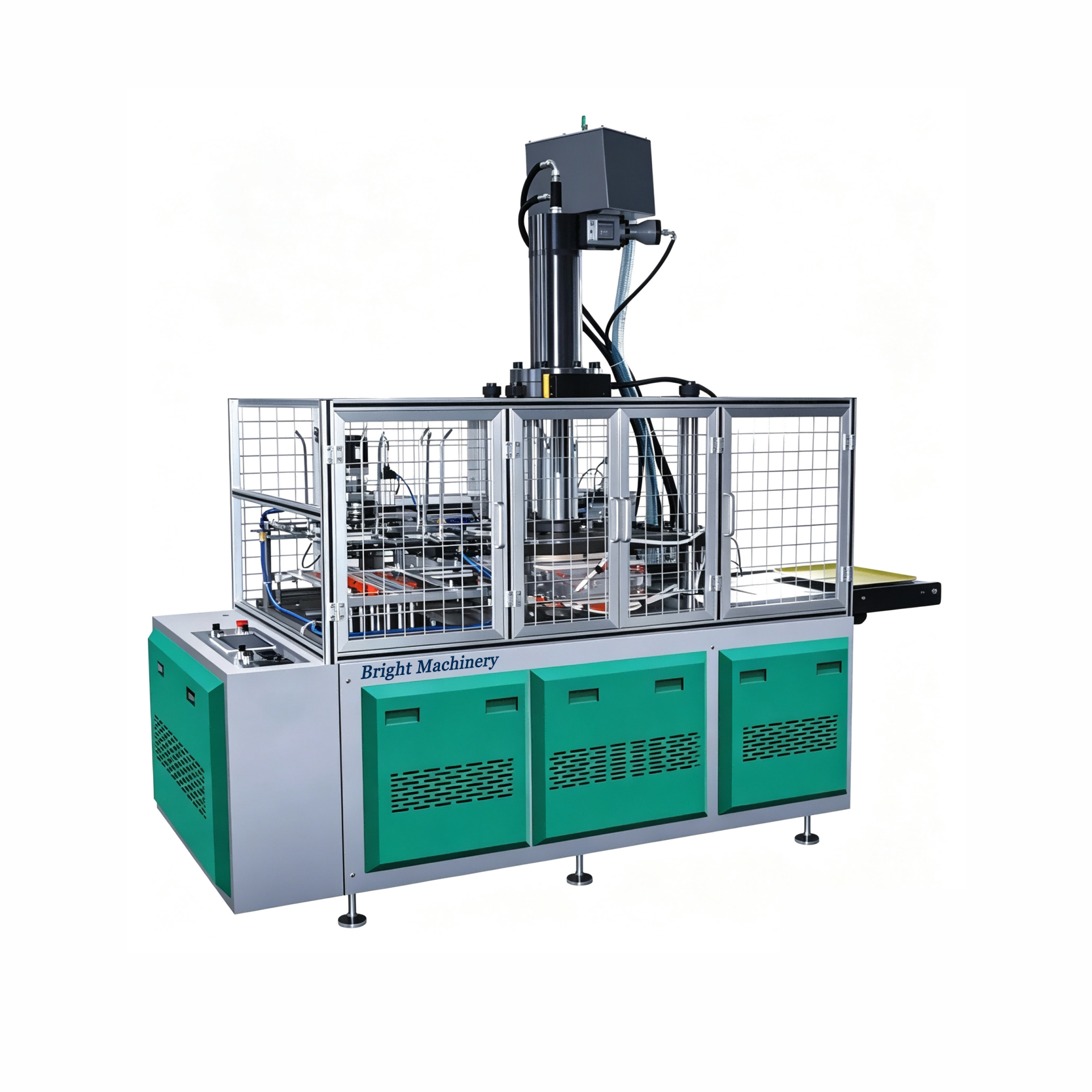

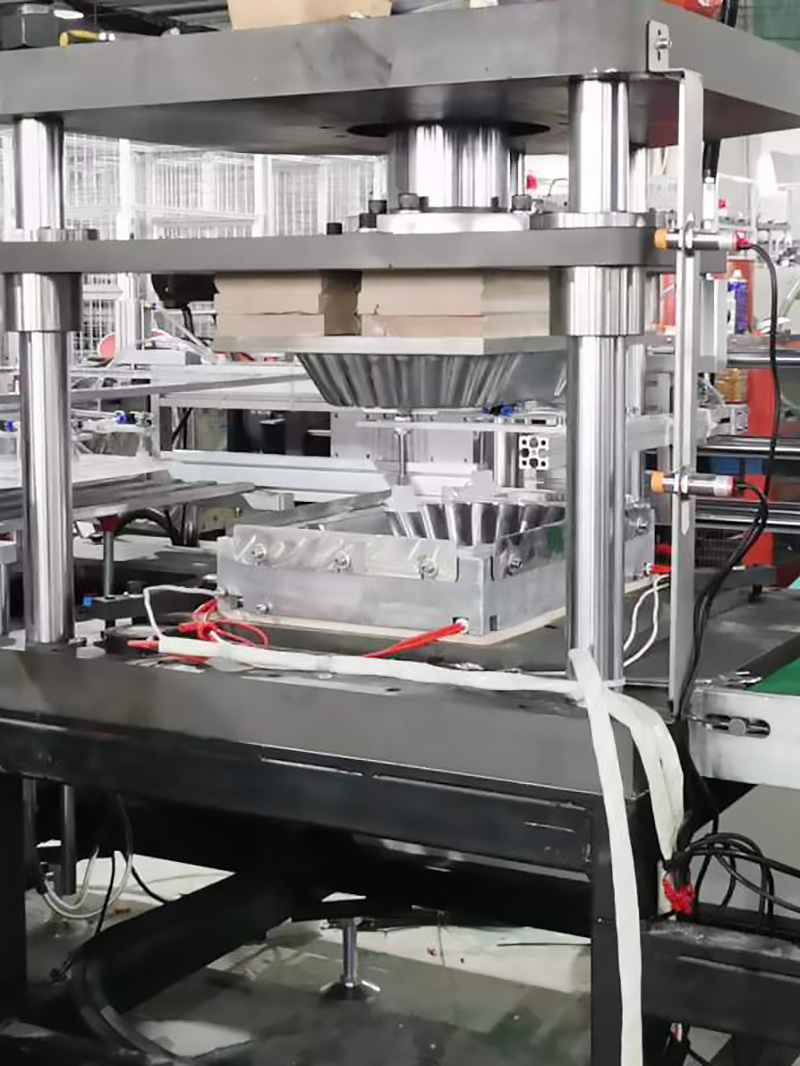

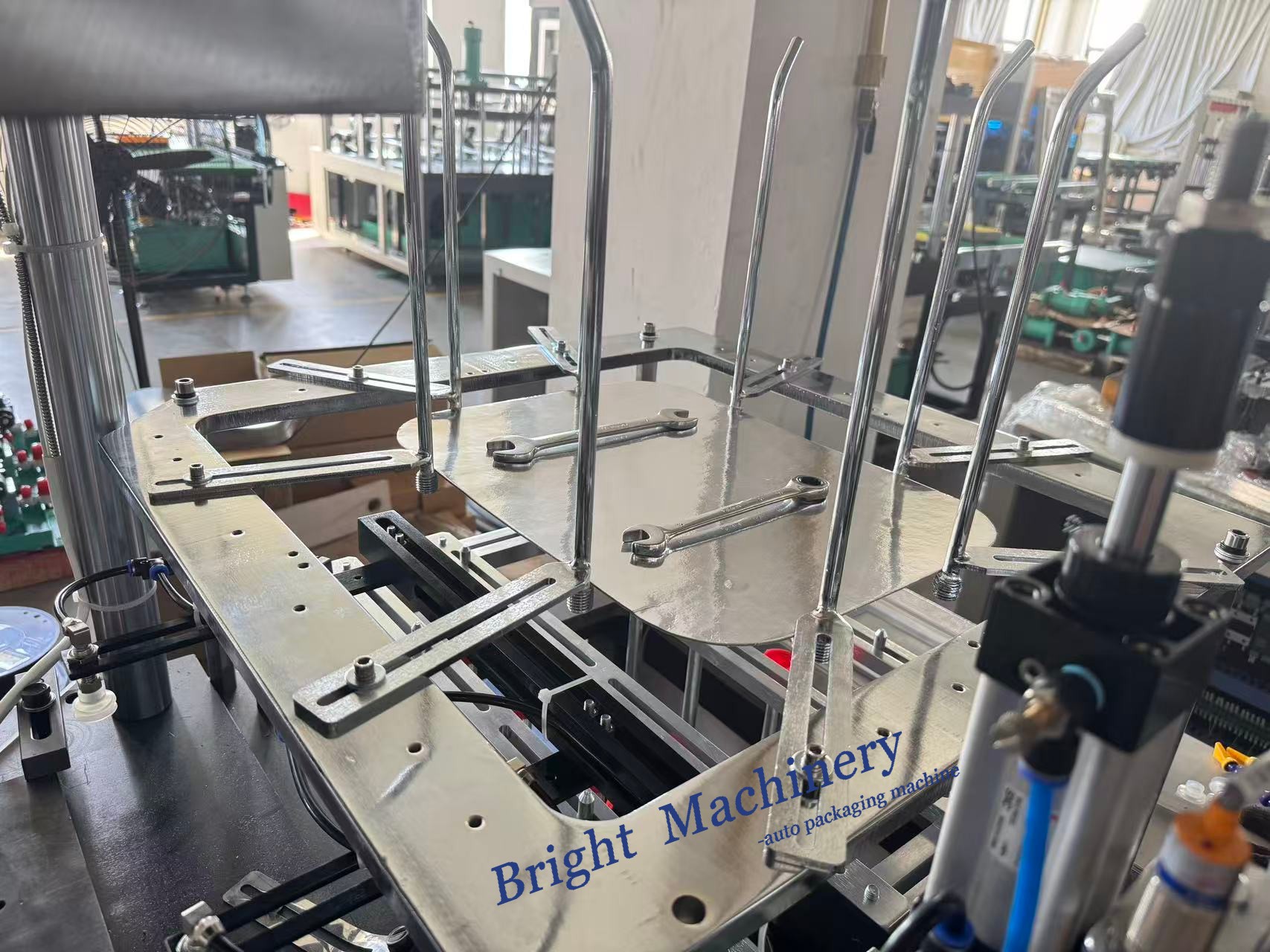

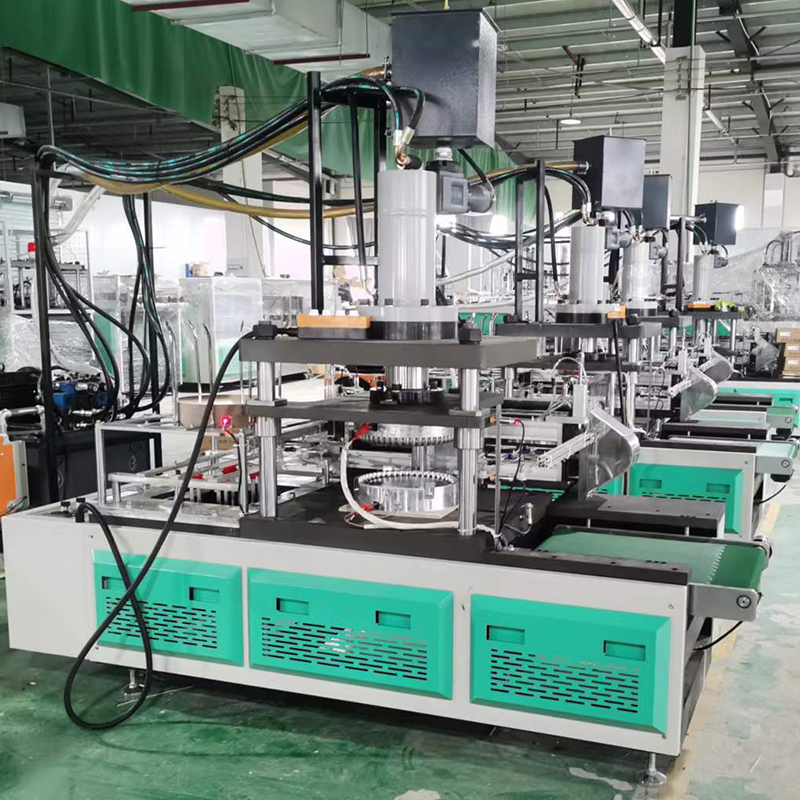

Machine Picture for Reference:
